Description

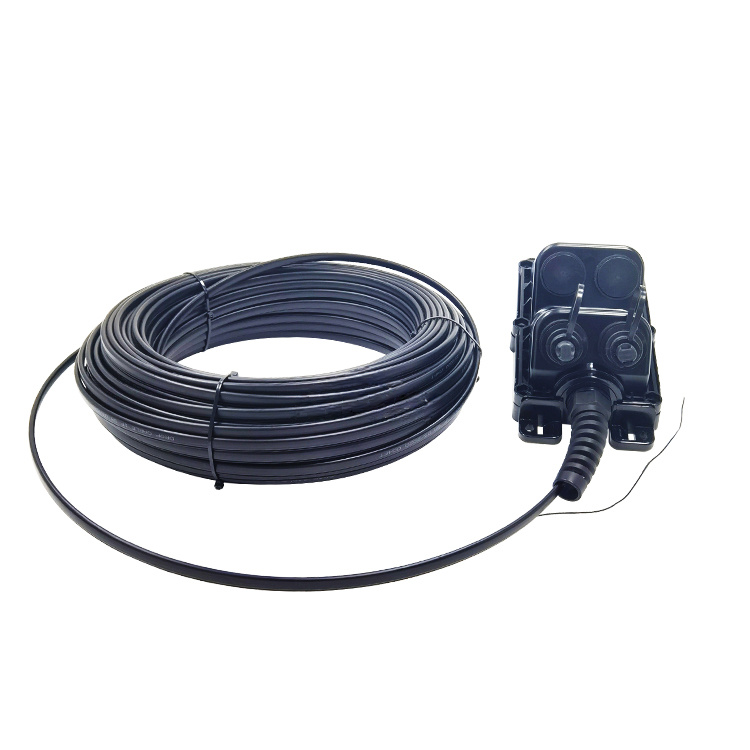

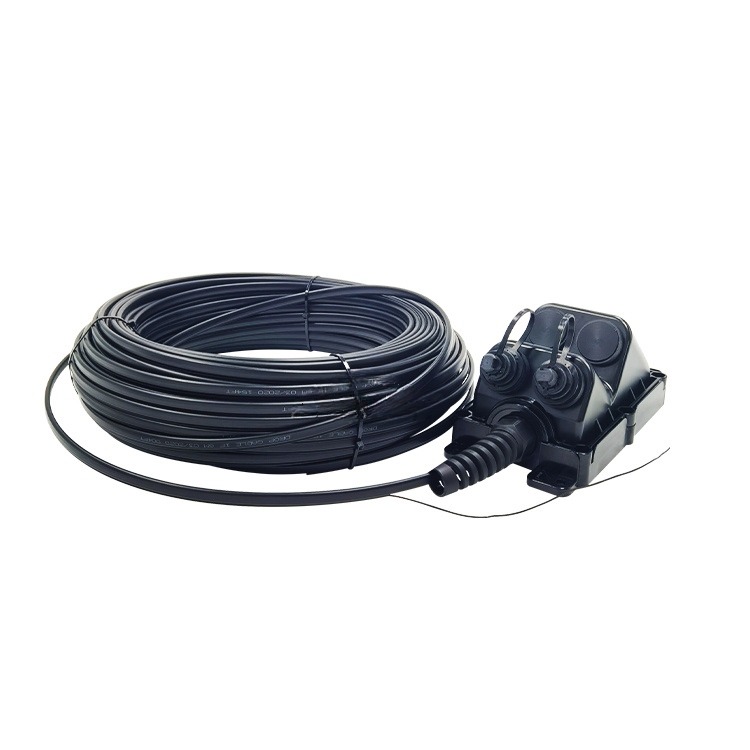

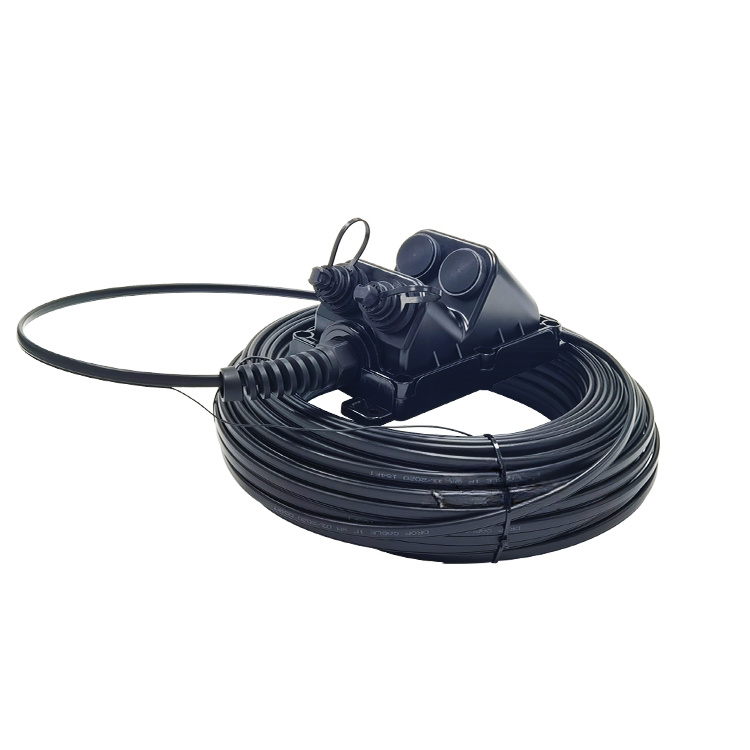

MST Tail Fiber Terminal, Single-Tube Gel-Filled Cable, Toneable, Stubbed, 2 port
Product Description

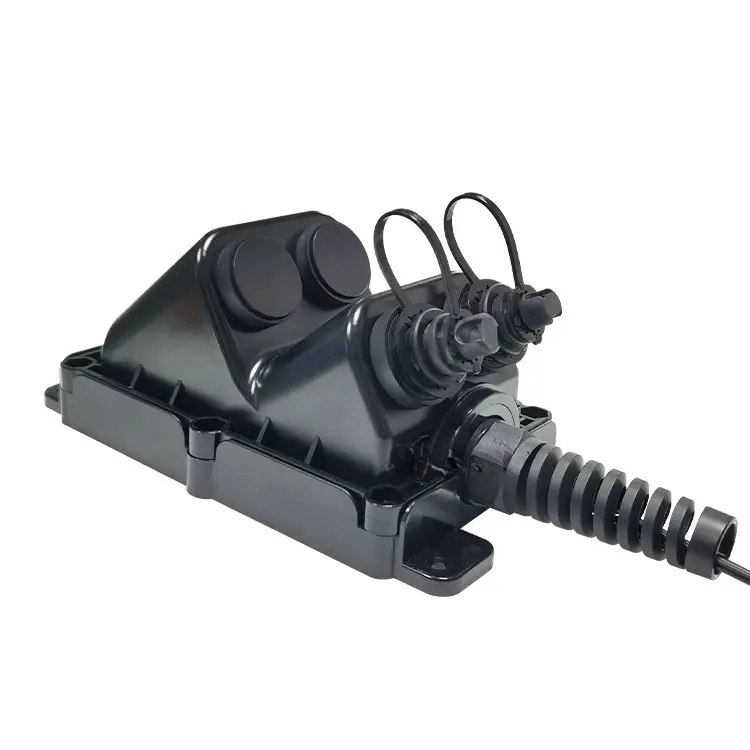

ZTO Cable Multiport Service Terminal (MST) Box is designed for FTTx-ODN network access points, offering a highly efficient and cost-effective fiber distribution solution for outdoor use. With all inlet and outlet cables pre-connected, it eliminates the need for closure opening or fiber splicing. Each port is equipped with hardened adapters, enabling operators to complete ODN deployment without splicing or box opening, which greatly improves service provisioning efficiency.
Compared with traditional products, the MST box is easier to install, highly compatible, and helps reduce the Total Cost of Operation (TCO) by 15–30%. It supports multiple installation methods, including wall-mounting, aerial suspension, and pole mounting, making it adaptable to different deployment scenarios.
Thanks to its robust and weather-resistant design, the MST box is widely used not only in FTTH applications but also in FTTA and other harsh outdoor environments, ensuring reliable and long-lasting network performance.
Features
- Factory terminated for high performance;
- Plug and play adapter ports, fully compatible with Optitap and H-connector;
- 2, 4, 6, 8, 10, 12, 16 18 ports are available;
- Stub pigtail length from 10 ft to 1750 ft available;
- SST, ROC or 5.0mm round input stub cables；
- Pole, pedestal, handhole, or strand mounting options；
- IP-68 waterproof protection.
Specification
| Product name | Multiport Service Terminal, 2 port, Single-Tube Gel-Filled Cable, Toneable, Stubbed |
|---|---|
| Cable Type | Toneable (Dielectric available) |
| Cable diameter | 4.5mm*9.7mm toneable |
| Installation | Pole, pedestal, handhole, or strand mounting options |
| Stub length | 50, 100, 200, 250, 500, 750, 1000, 1250, 1500, 1750, and 2000 feet (additional lengths available) |
| Specifications – Hardened adapter | |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ≤ 0.15 dB |

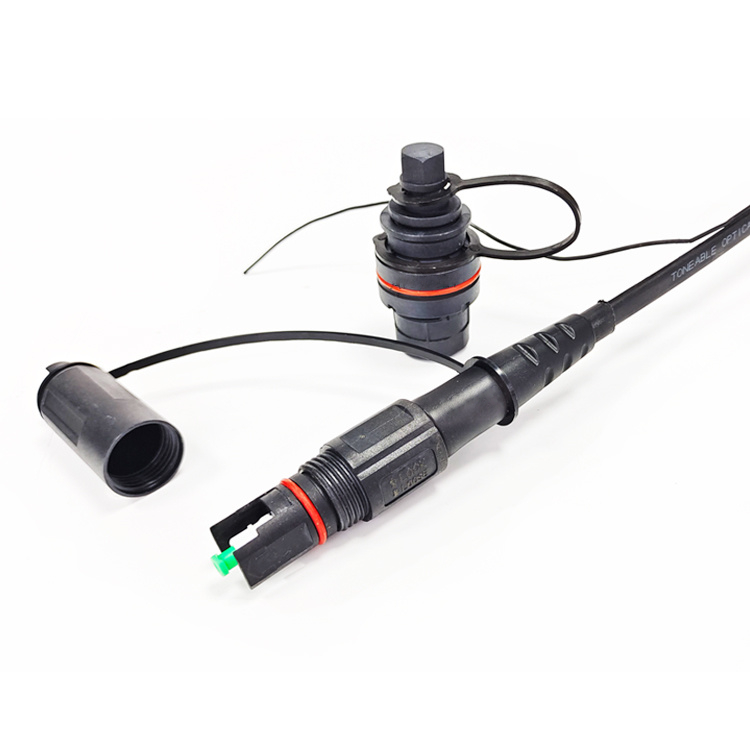

| Adapter Type | SC/APC Hardened adapter, compatible with Corning Optitap and H-connector |
| Optical Characteristics | |
| Fiber Type | Single-mode |
| Fiber count | 2F |
| Fiber Category | G.652D |
| Wavelengths | 1310 nm / 1550 nm |
| Maximum Attenuation | 0.35 dB/km / 0.25 dB/km |
Application
- FTTH;
- Outdoor Areas;
- Harsh Environment.
