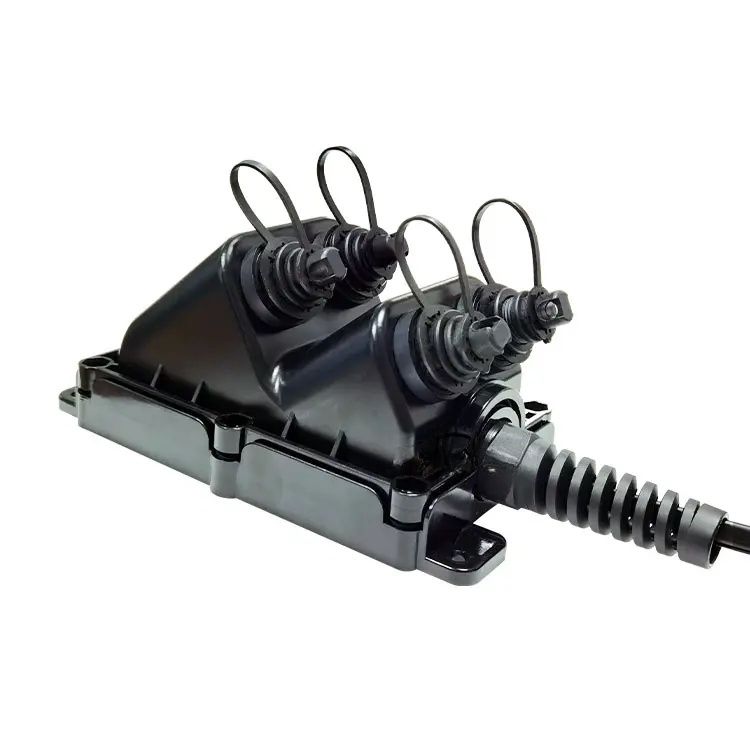

4 Port Opti-Tap MST Fiber Terminal Box
Opti Tap

4 Port Opti-Tap MST Fiber Terminal Box

Inquire Online

  • Check Mark Satisfaction guarantee
  • Check Mark Fast delivery
  • Check Mark Quality assurance
Category:

Description

OptiTap Multiport Service Terminal, Single-Tube Gel-Filled Cable, Toneable, Stubbed, 4 port

Product Description

ZTO Cable Multiport Service Terminal (MST) Box is a highly efficient solution designed for access points in the FTTx-ODN network. All inlet and outlet cables are pre-terminated, eliminating the need for fiber splicing or closure opening. Each port is equipped with hardened adapters, allowing operators to quickly connect without specialized tools, which greatly improves service provisioning efficiency.

Compared with traditional products, the MST box is easier to operate, highly compatible with various network environments, and helps reduce the Total Cost of Operation (TCO) by 15–30%. Its robust design ensures reliable performance in outdoor conditions, making it suitable for FTTH, FTTA, and other harsh deployment environments.

The MST box supports multiple installation methods, including wall-mounting, aerial suspension, and pole mounting, providing flexible options based on different application scenarios. As an economical and durable fiber distribution solution, it delivers both cost savings and long-term reliability for operators.

Features

  • Factory terminated for high performance;

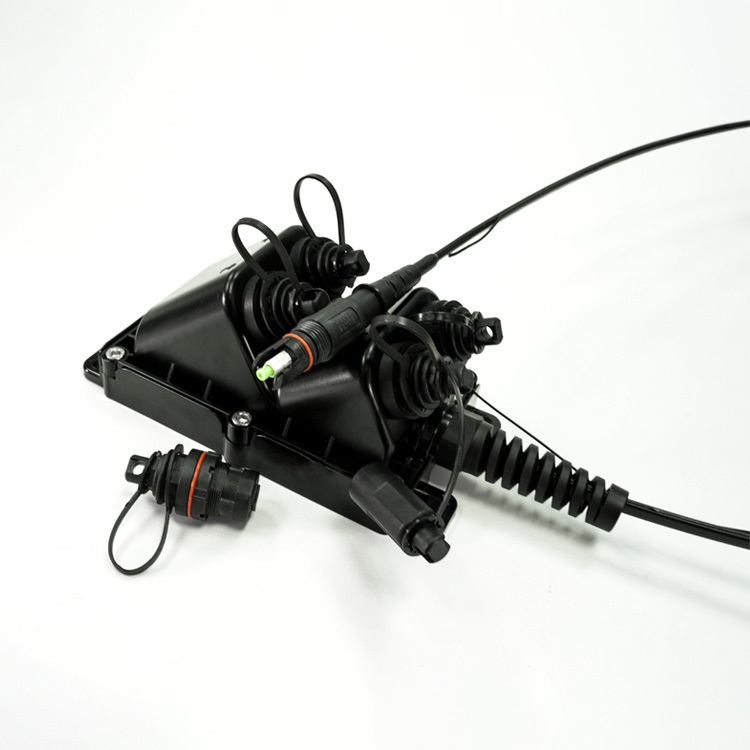

  • Plug and play adapter ports, fully compatible with Optitap and H-connector;
  • 2, 4, 6, 8, 10, 12, 16 18 ports are available;

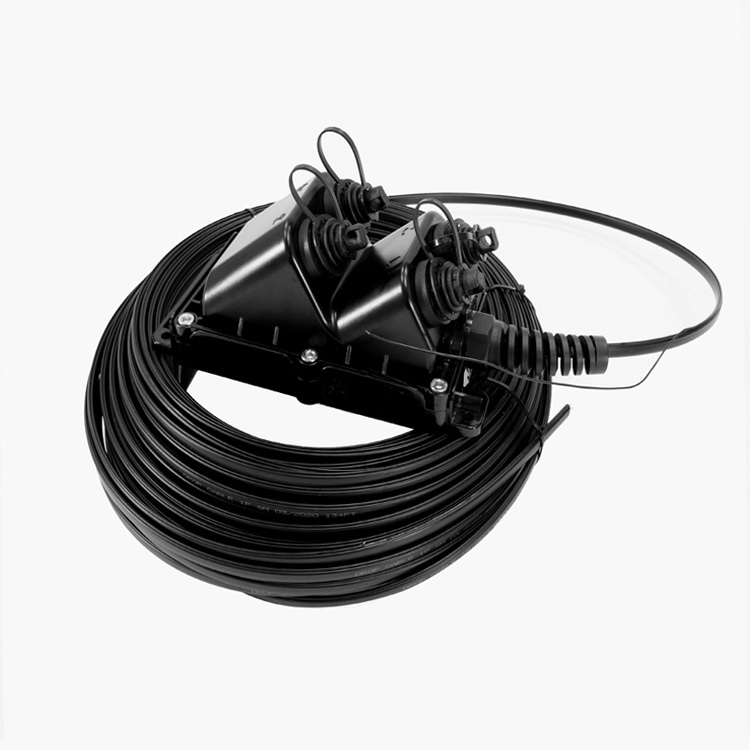

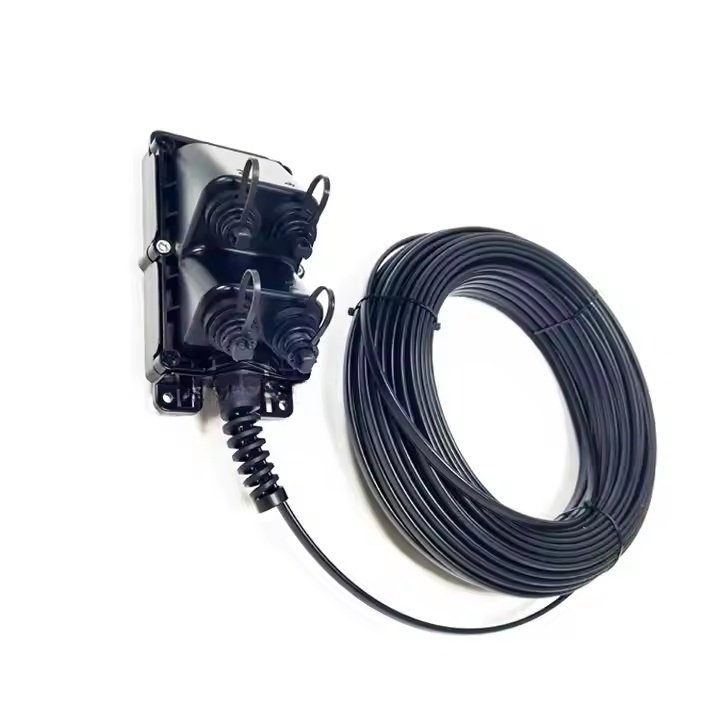

  • Stub pigtail length from 10 ft to 1750 ft available;
  • SST, ROC or 5.0mm round input stub cables；
  • Pole, pedestal, handhole, or strand mounting options；
  • IP-68 waterproof protection.

Specification

Product name Multiport Service Terminal, 4 port, Single-Tube Gel-Filled Cable, Toneable, Stubbed
Cable Type Toneable (Dielectric available)
Cable diameter 4.5mm*9.7mm toneable
Installation Pole, pedestal, handhole, or strand mounting options

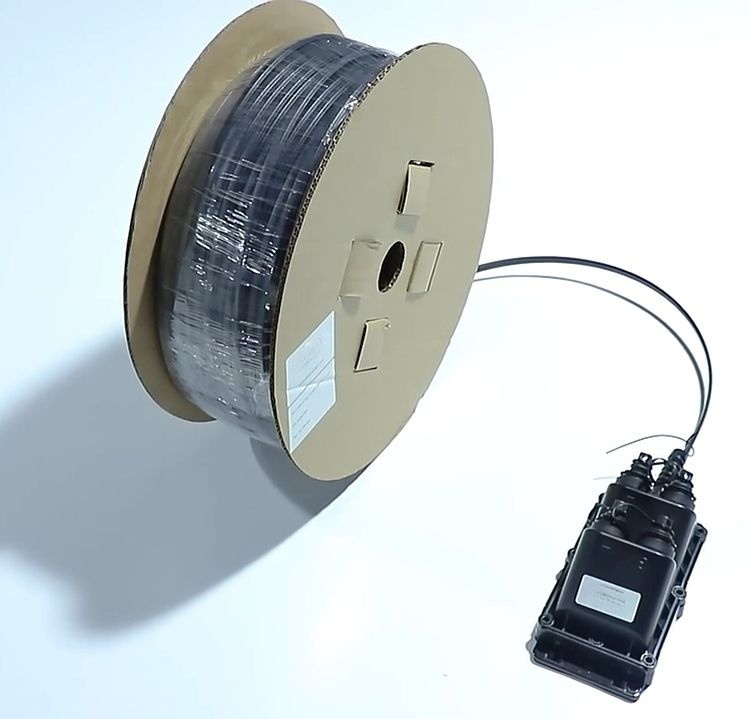

Stub length 50, 100, 200, 250, 500, 750, 1000, 1250, 1500, 1750, and 2000 feet (additional lengths available)

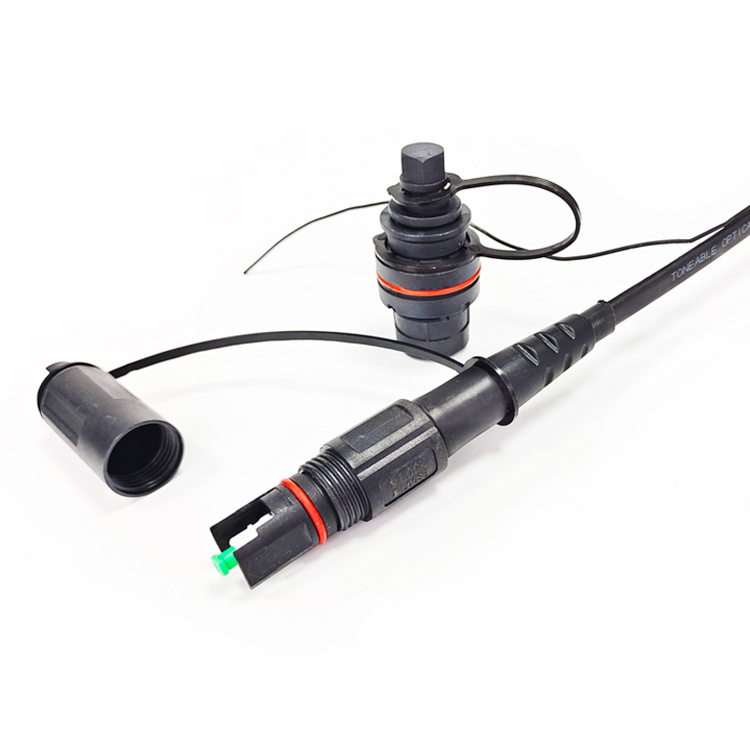

Specifications – Hardened adapter
Reflectance, Typical -65 dB
Insertion Loss, Typical ≤ 0.15 dB
Adapter Type SC/APC Hardened adapter, compatible with Corning Optitap and H-connector
Optical Characteristics
Fiber Type Single-mode
Fiber count 4F
Fiber Category G.652D
Wavelengths 1310 nm / 1550 nm
Maximum Attenuation 0.35 dB/km / 0.25 dB/km

Application

  • FTTH;
  • Outdoor Areas;
  • Harsh Environment.
