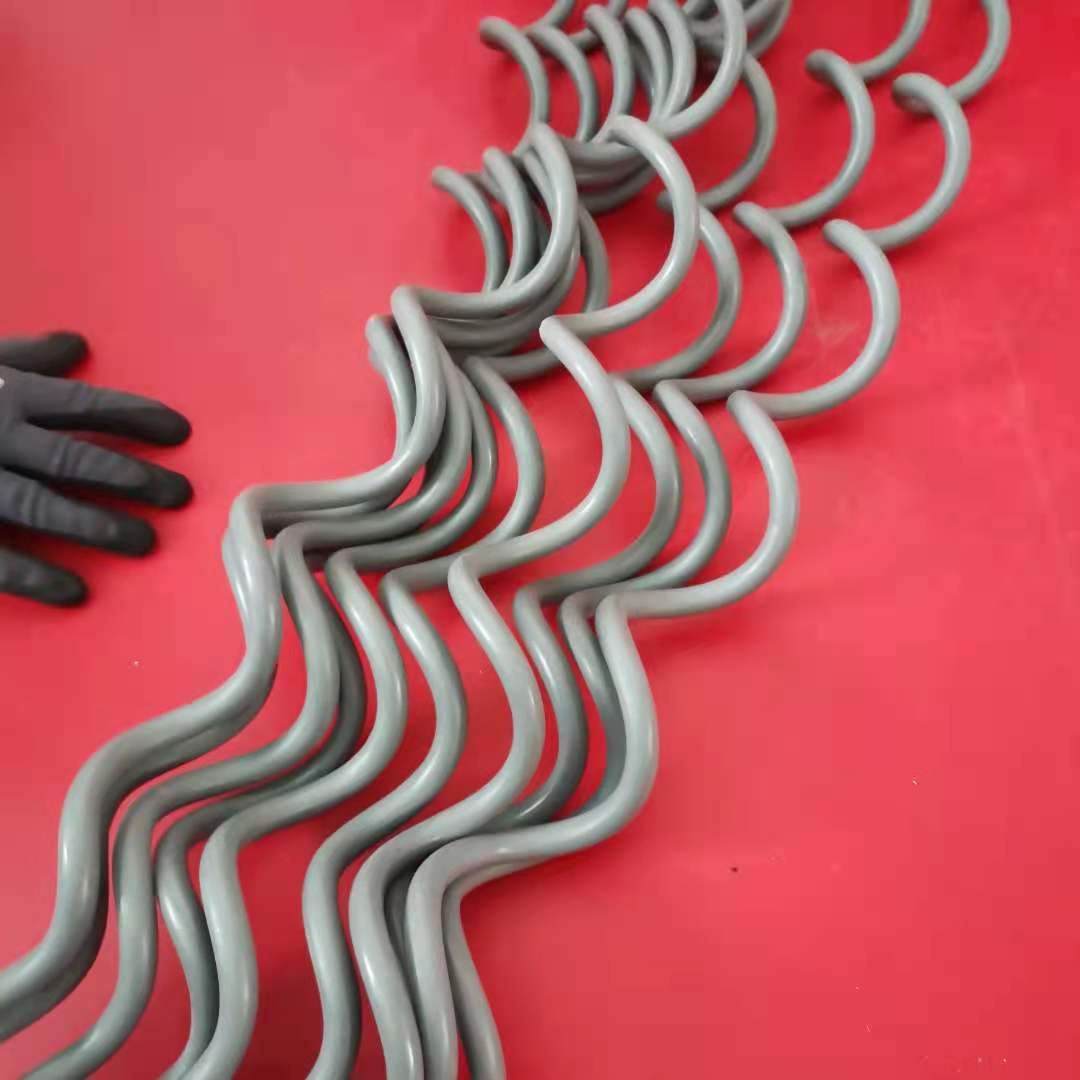

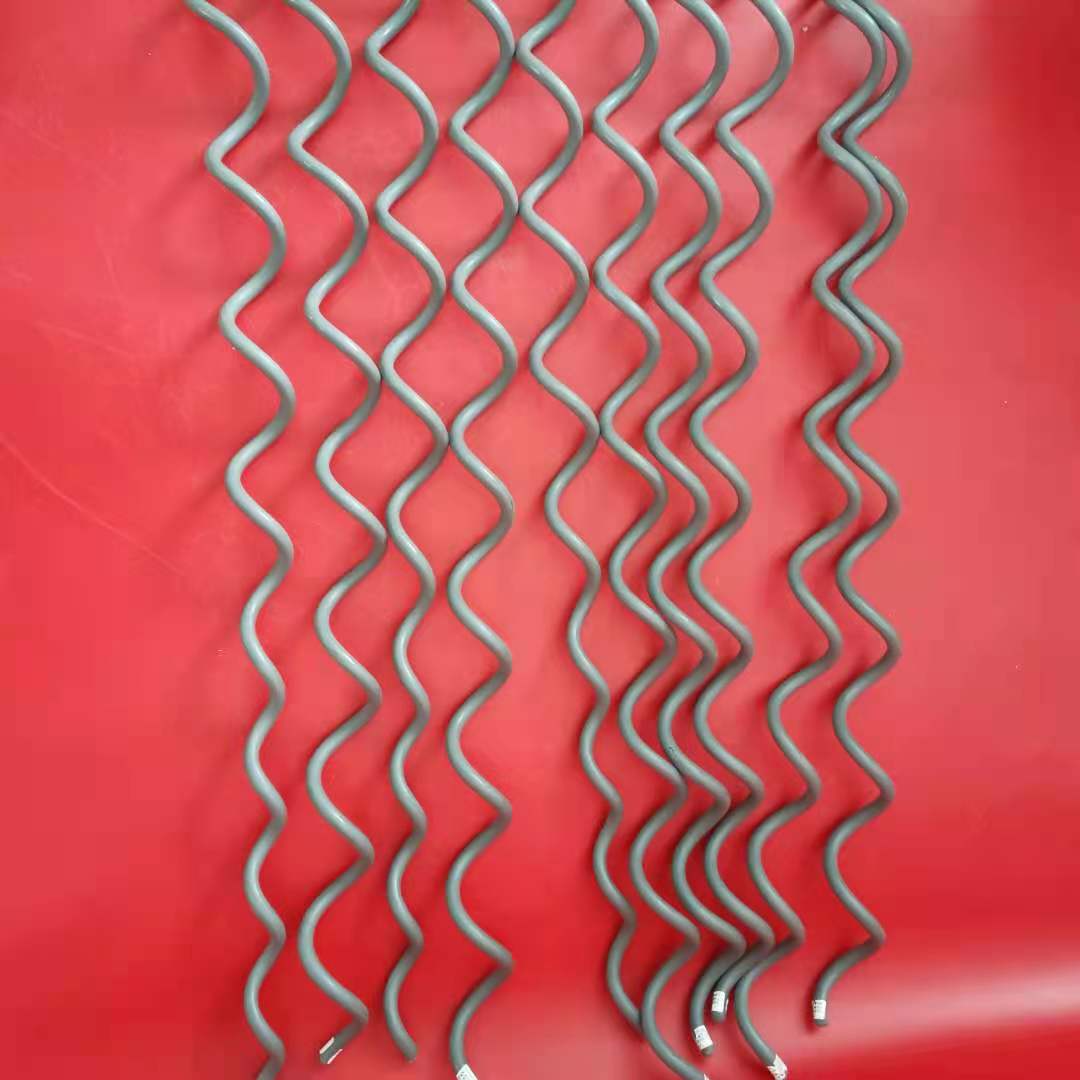

Spiral Vibration Damper for Overhead Line ADSS Cable
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description
This product is suitable for ADSS optical cables. It uses its anti-vibration part to dampen wind vibration, consume and weaken the energy of optical cable vibration, thereby protecting the optical cable.
According to the diameter of the optical cable, select the required model according to the selection specification table. Determine the quantity required for each gear according to the size of the gear spacing.
When the gear distance is less than 100m, no anti-vibration whip is required;
When the gear distance is 100-250m, 2 rods are required;
When the gear distance is 250-500m, 4 rods are needed;
When the gear distance is 500-750m, 6 rods are needed;
When the gear distance is 750-900m, 8 pieces are needed.
| model | Applicable optical cable diameter | Product length |
| AFZ 130 117 | 9.0-11.7mm | 1300mm |
| AFZ 135 143 | 11.4-14.3mm | 1350mm |
| AFZ 167 193 | 14.3-19.3mm | 1670mm |
