CAT 7 S/FTP High-Speed Shielded Ethernet Cable

Description

The CAT 7 S/FTP High-Speed Shielded Ethernet Cable is engineered for professional data centers, enterprise networks, and high-performance home environments. It adheres to the 10GBASE-T standard, delivering ultra-fast 10 Gbps transmission speeds over a distance of up to 100 meters. With a rated bandwidth of 600 MHz, it significantly outperforms traditional Cat 6 cables, offering higher headroom for data-intensive applications.

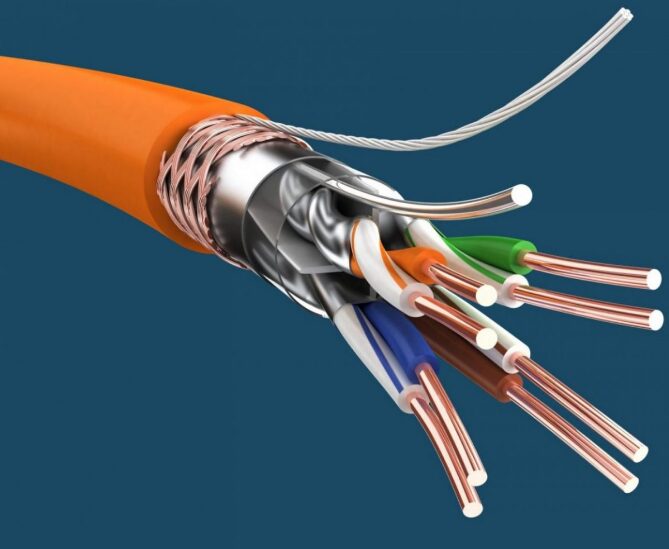

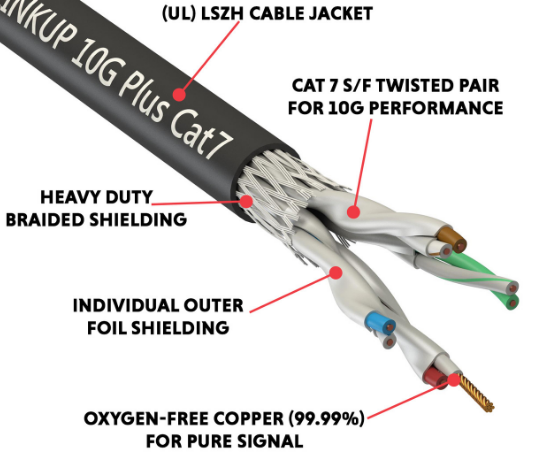

To ensure signal integrity in electrically noisy environments, this cable features a premium Double Shielded (S/FTP) structure. Each twisted pair is individually wrapped in aluminum foil, and the entire bundle is protected by a braided mesh shield. This design effectively eliminates crosstalk and external electromagnetic interference (EMI). Constructed with high-quality 23 AWG or 24 AWG Oxygen-Free Copper (OFC) conductors and robust jacketing, it is built to withstand harsh physical conditions.

The CAT 7 cable is fully backward compatible with Cat 6A, Cat 6, and Cat 5e standards using standard RJ45 connectors. It supports PoE and PoE+ technology, making it an ideal solution for powering IP cameras, wireless access points, and VoIP phones while maintaining stable high-speed data connectivity.

Key Features

• Superior Anti-Interference (S/FTP): The double-shielded design (individual pair foil + overall braid) maximizes protection against EMI and crosstalk, ensuring stable transmission in data centers and industrial settings.
• Stable 10-Gigabit Performance: Guarantees 10 Gbps speeds effectively up to 100 meters, overcoming the distance limitations of Cat 6 and providing more reliable performance than Cat 6A.
• High-Bandwidth Capacity: Offers 600 MHz bandwidth to handle high-traffic networks and future-proof your infrastructure for upcoming technology upgrades.
• Industrial-Grade Durability: Resistant to aging and physical damage, suitable for environments with temperature fluctuations, humidity, or oil exposure.
• High-Power PoE Support: Thicker conductors and superior heat dissipation allow for stable support of PoE/PoE+ and high-power devices without overheating.
• Optimized for High-Density Cabling: effectively mitigates Alien Crosstalk (ANEXT), maintaining performance even when large bundles of cables are routed tightly together in trays or racks.

Applications

• Data Centers & Server Rooms: Critical connections for servers, switches, and storage requiring low latency and high reliability.
• High-Performance Computing & Pro AV: 4K/8K video production, financial trading systems, and non-linear editing networks.
• Smart Buildings & Offices: Backbone cabling for building management systems and HD video conferencing.
• Industrial Environments: Factory automation and medical imaging facilities with high electromagnetic interference.
• Enthusiast Home Networks: High-end gaming setups and 8K streaming networks.

Technical Specifications

Frequently Asked Questions (FAQ)

1. Is Cat 7 significantly faster than Cat 6 or Cat 6A?

At the standard 100-meter distance for 10 Gbps networks, the top speed is the same. However, Cat 7 offers superior anti-interference capabilities and a higher bandwidth (600 MHz), ensuring more stable connections in complex environments compared to Cat 6A.

2. Do I need Cat 7 for my home network?

For most homes, Cat 6A is sufficient. Cat 7 is recommended for: 1) Large luxury homes with extensive smart devices and potential interference; 2) Audio/Video enthusiasts seeking maximum performance; 3) Users planning a “once and for all” cabling solution for the next decade. Note that Cat 7 is thicker and stiffer, making it harder to route.

3. Can I use Cat 7 with my existing router and computer?

Yes, it is fully backward compatible. As long as the cable is terminated with standard RJ45 connectors, it works with all existing networking gear (Cat 5e/6 routers, etc.). Your network speed will be limited by the slowest device in the chain.

4. What are the installation requirements for Cat 7?

Grounding is critical: You must use shielded metal RJ45 connectors and ensure the shielding layer is continuous and properly grounded; otherwise, the shield acts as an antenna and worsens interference. Installation difficulty: The cable is stiffer; professional installation is recommended for pulling through conduits.

5. What is the difference between Cat 7 and Cat 8?

The main difference is application distance. Cat 8 is designed for short-distance data center use (up to 30 meters) at 40 Gbps with 2000 MHz bandwidth. Cat 7 is designed for full 100-meter runs at 10 Gbps. For general cabling, Cat 7 is the more practical long-distance solution.
