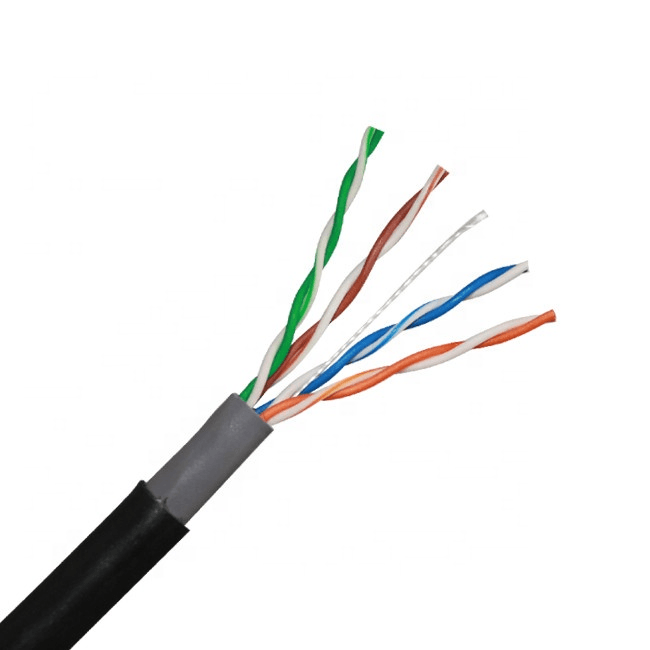

CAT5e Series High-Performance Ethernet Cables (UTP/FTP/SFTP)
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description
The CAT5e Series High-Performance Ethernet Cables are designed to provide a cost-effective foundation for Gigabit (1Gbps) networks. Available in UTP, FTP, and SFTP configurations, these cables feature precision twisted-pairing and a cross filler design that effectively reduce crosstalk, ensuring stable data transmission even in complex electromagnetic environments.
Engineered for installation efficiency and long-term reliability, the cables offer optimal flexibility for easy routing and high-quality sheathing (PVC or LSZH) that resists aging and abrasion. Fully compliant with international standards and backed by Fluke Channel and Link testing, this series guarantees deterministic performance, eliminating network instability caused by substandard cabling.
Key Features
- Gigabit Performance: Delivers stable 1Gbps transmission for SMEs and new construction projects.
- Superior Anti-Interference: Cross filler structure and precision twisting minimize crosstalk.
- High-Quality Conductors: Available in pure Bare Copper (BC) or CCA options to meet various budget requirements.
- Certified Reliability: Passes Fluke tests, complying with CAT5e channel and link standards.
- Durable Jacket Options: Environmental LSZH or standard PVC outer sheaths available.
Technical Specifications
| Category | CAT5e |
| Shielding Types | UTP (Unshielded), FTP (Foil Shielded), SFTP (Braid & Foil Shielded) |
| Number of Conductors | 4 Twisted Pairs (8 conductors) |
| Conductor Material | Bare Copper (BC) / Copper Clad Aluminum (CCA) |
| Conductor Diameter | 0.50 mm / 0.56 mm |
| Insulation | Foam Polyethylene (FPE) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) / PVC |
| Jacket Color | White, Grey, Blue |

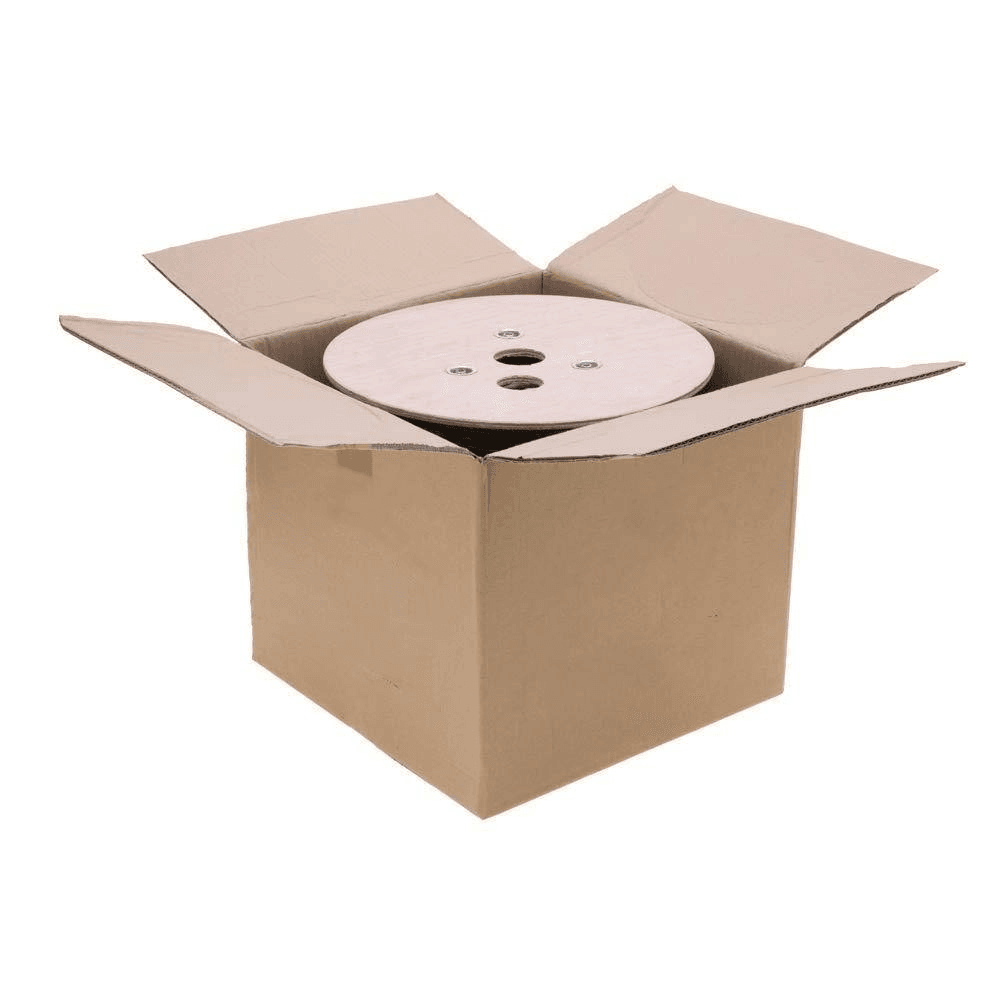

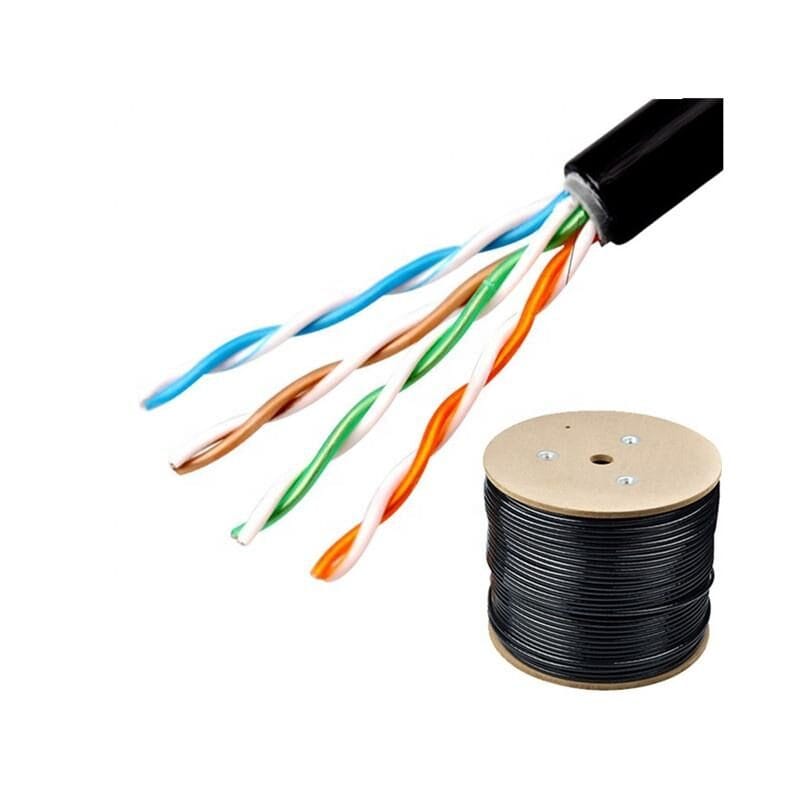

| Standard Length | 305 m (1000 ft) per roll |
| Certifications | Fluke Channel & Link Test Passed |
Applications
- Enterprise LANs & Office Networks
- Education & Healthcare Facilities
- Security & Surveillance Systems (CCTV)
- Retail & Hospitality Infrastructures
- Smart Manufacturing & IoT Deployments
FAQ
- Q1: How can I quickly judge the quality of your CAT5e cable?
A: First, check the structure by cutting a sample to verify the cross filler and pure copper conductors. Second, inspect the jacket printing for clear legends (CAT5e, CMR rating, etc.). Third, request third-party Fluke channel test reports. - Q2: Can your CAT5e cable guarantee Gigabit performance over the full 100-meter distance?
A: Yes. Provided that compliant, high-quality CAT5e cables, modules, and patch panels are used and installed professionally, standard Gigabit performance over a 100-meter channel is guaranteed. - Q3: Can it be used outdoors or for direct burial?
A: No. Standard CAT5e UTP is designed for indoor use. For outdoor applications, please choose our outdoor-rated armored fiber optic cables or outdoor Ethernet cables with a PE outer jacket.
