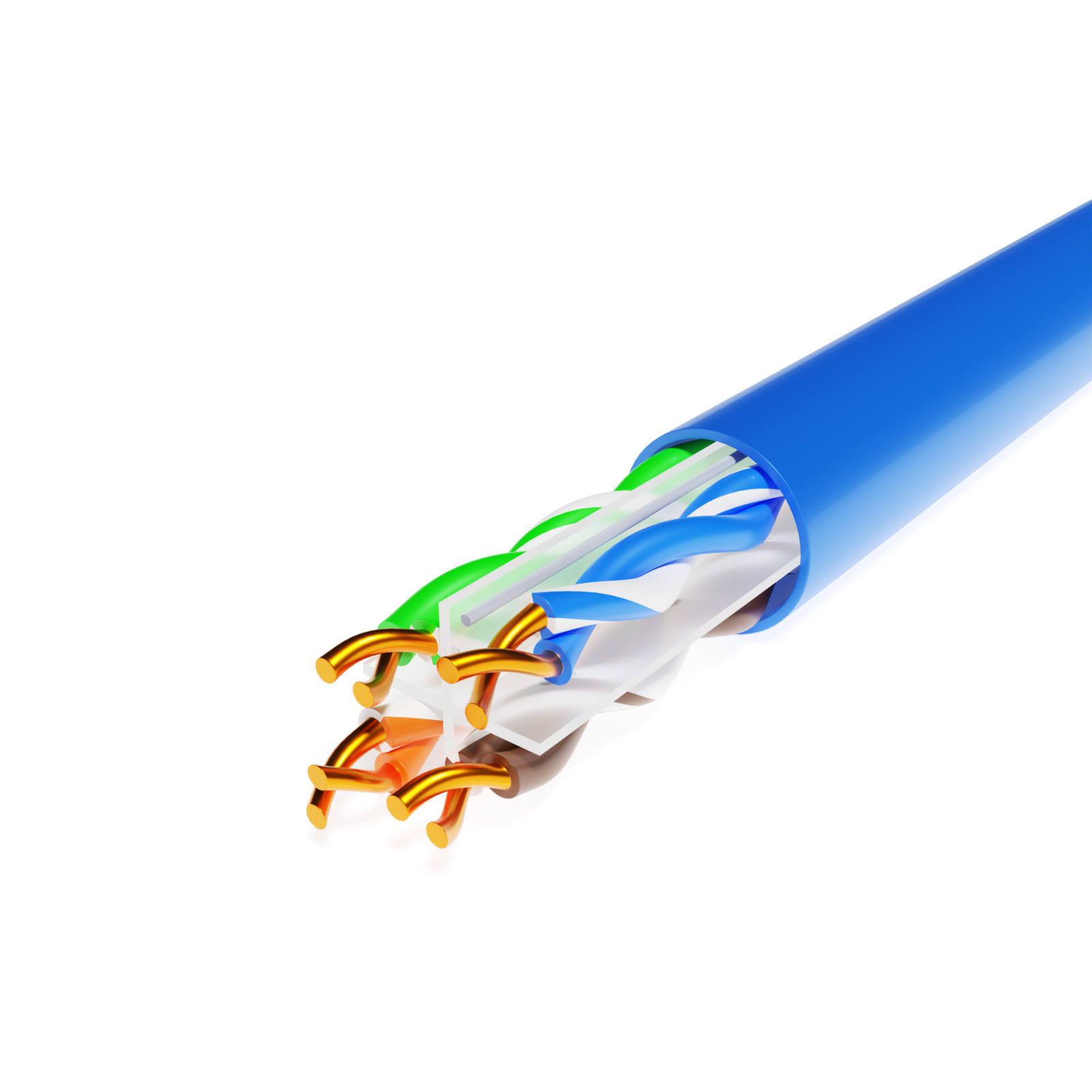

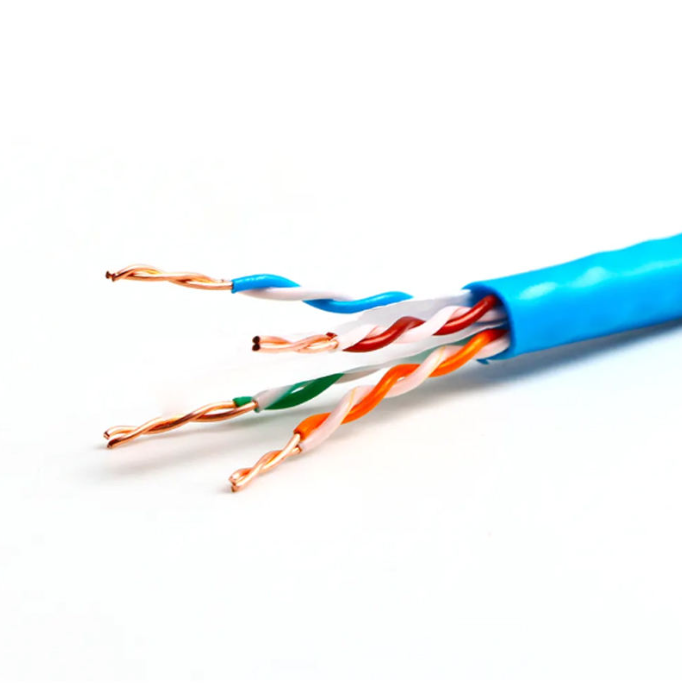

Cat6a U/UTP Solid Network Patch Cable (23AWG)
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description
The Cat6a U/UTP High-Performance Network Patch Cable is a cost-effective, professional-grade solution designed for Data Centers and SMB applications. Engineered for optimal performance with 10GBase-T Ethernet support, this cable connects computers, hubs, switches, routers, and patch panels to ensure peak network efficiency.
Featuring 23 AWG solid pure bare copper conductors, this cable offers superior signal quality and transmission speeds compared to standard stranded cables. It meets rigorous ISO/IEC 11801 and ANSI/TIA-568-C.2 standards, delivering a standard bandwidth of 550 MHz (reference up to 750 MHz). With a durable PVC/CMP (Plenum) jacket and high-quality FEP insulation, it provides robust protection and fire safety, making it suitable for strict building code environments.
Whether for smart homes, offices, or enterprise-level backbone networks, this Cat6a cable ensures stable, high-speed connectivity with excellent electrical and mechanical characteristics.
Key Features
- High-Speed Transmission: Rated for 10GBase-T Ethernet with bandwidth support exceeding 550 MHz.
- Premium Conductors: 100% Pure Bare Copper (Solid, 23 AWG) for maximum conductivity and signal integrity.
- Durable Construction: Features FEP insulation and a robust CMP/PVC jacket compliant with RoHS standards.
- Standards Compliant: Fully meets ISO/IEC 11801 and ANSI/TIA-568-C.2 specifications.
- Versatile Application: Ideal for data centers, server rooms, and connecting network switches or patch panels.
Technical Specifications
Construction Parameters
| Product Type | Cat6a U/UTP Patch Cable |
| Shielding Type | Unshielded (U/UTP) |
| Conductor Material | Pure Bare Copper |
| Conductor Type | Solid |
| Wire Gauge | 23 AWG |
| Twisted Pairs | 4 Pairs |
| Insulation Material | FEP |
| Insulation Diameter | 0.95 ± 0.05 mm |
| Jacket Material | PVC (RoHS Compliant), CMP (Plenum) |
| Outer Diameter (O.D.) | 6.2 ± 0.3 mm |
| Jacket Thickness | 0.43 ± 0.05 mm |
| Connectors | RJ45 Plugs |
Electrical Characteristics (at 20℃)
| Data Rate Support | 10GBase-T |
| Standard Bandwidth | 550 MHz |
| Reference Bandwidth | 750 MHz |
| DC Resistance Unbalance | Max. 5% |
| Delay Skew (1-250MHz) | ≤45 ns/100m |
Mechanical Characteristics
| Tensile Strength (Before Aging) | ≥13.5 Mpa |
| Elongation (Before Aging) | ≥150% |
| Tensile Strength (After Aging) | ≥12.5 Mpa |
| Elongation (After Aging) | ≥125% |
| Aging Condition | 100℃ × 24h × 7 days |
| Cold Bend Test | -20 ± 2℃ × 4h (No Visible Cracks) |
| Min. Bend Radius | 4.34 ± 0.2 cm |
Applications
- Data Centers & Server Rooms: High-density cabling for switches, servers, and storage units.
- Enterprise Networks: Ideal for SMB office setups and backbone cabling.
- Smart Buildings: Reliable connectivity for smart home and office automation systems.
- Professional Networking: Mobile transmission of digital audio or network signals.
