Cat6A F/UTP 4-Pair Network Cable
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description
The Category 6A F/UTP 4-Pair Cable is a high-performance network solution designed to exceed ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA requirements. Engineered for superior data transmission, it supports 10GBASE-T operation over 100-meter topologies in 4-connector configurations.

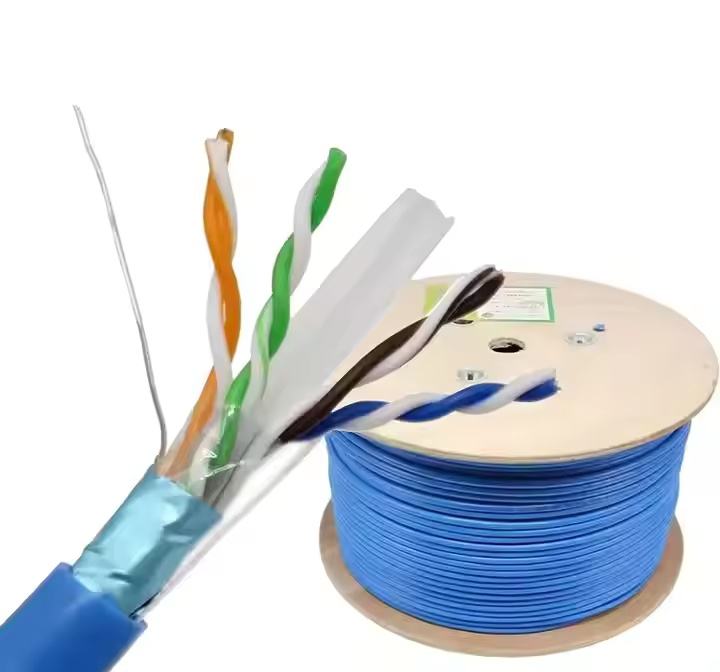

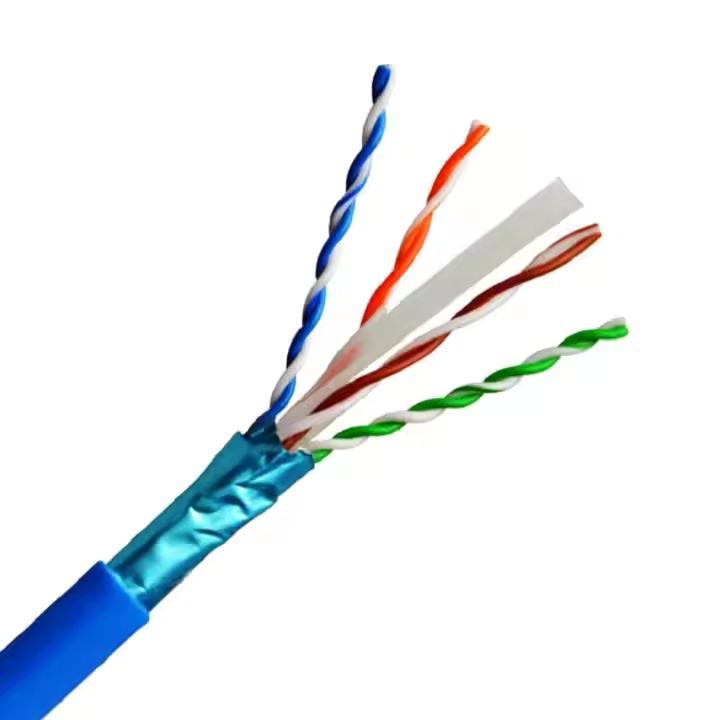

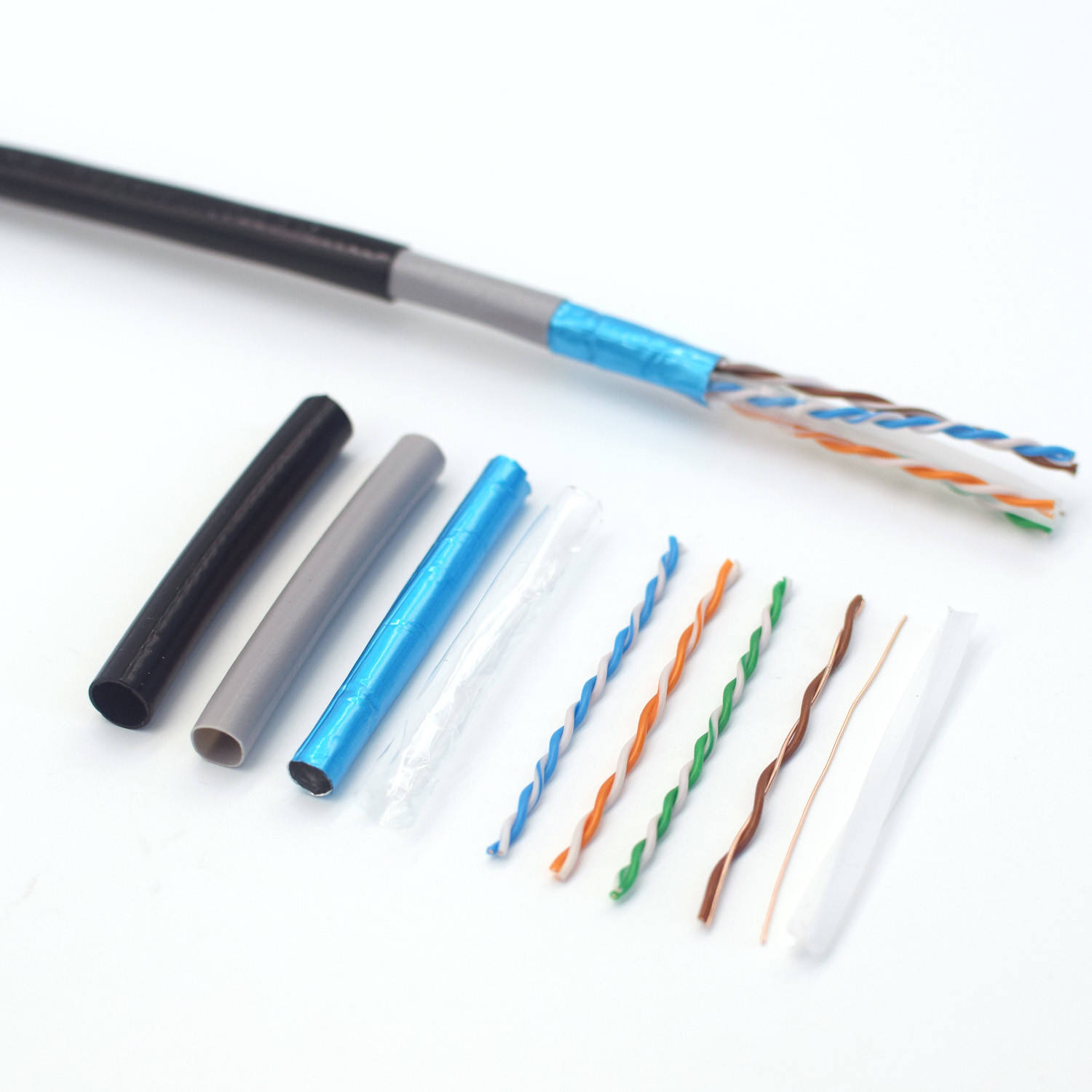

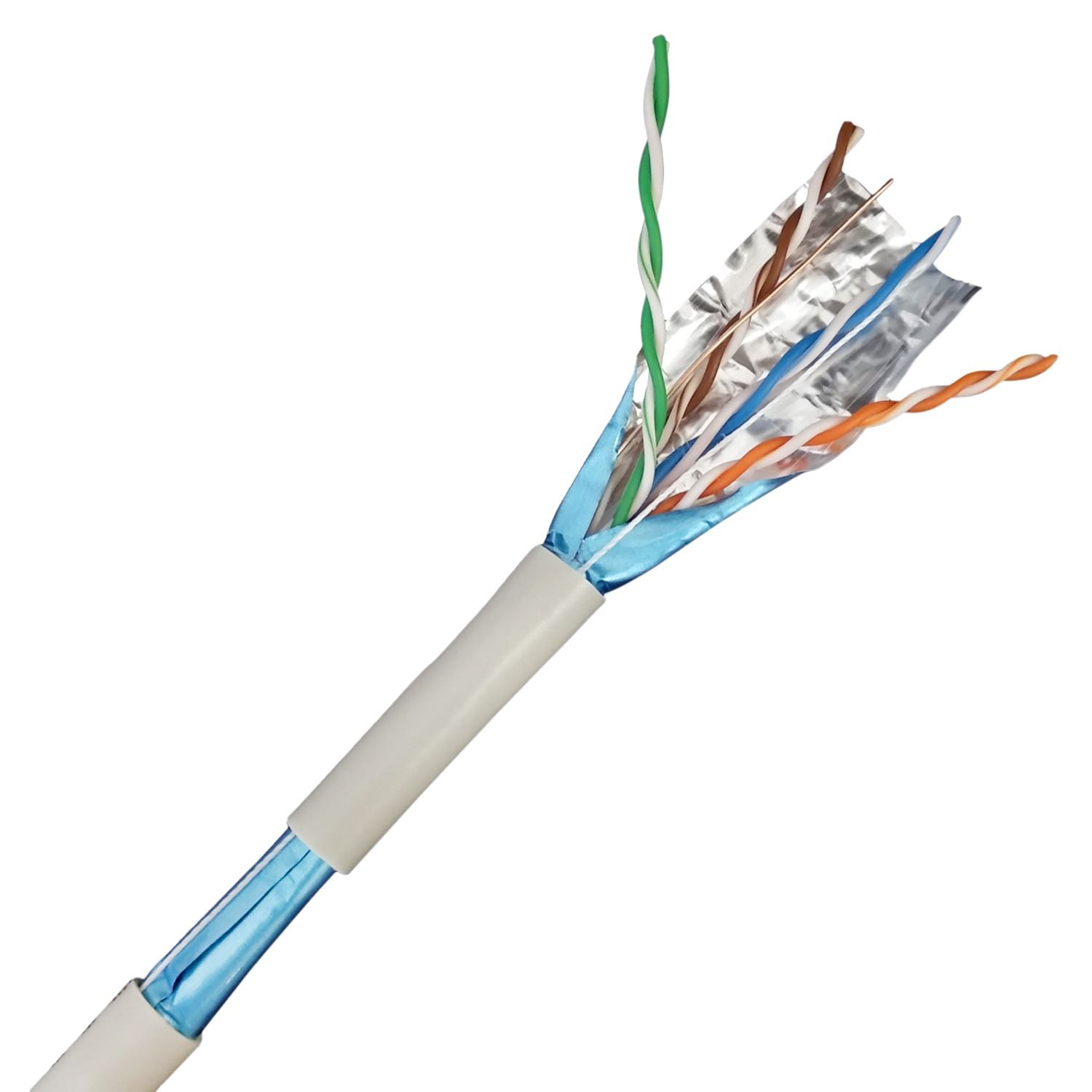

Featuring a screened construction (F/UTP) with an aluminum foil tape shield and a tinned copper drain wire, this cable virtually eliminates alien crosstalk. It is built with 23 AWG solid copper conductors and a central isolation member to ensure signal stability. The system is fully compatible with emerging IP applications, including Voice Over IP (VoIP), IP video, and Power over Ethernet (PoE++).
This cable is the ideal choice for data centers, smart office environments, and outdoor digital transmission, offering a nominal outer diameter of 6.99 mm and robust environmental compliance including LSOH and CMR ratings.
Product Features
- Structure: F/UTP (Foil Shielded / Unshielded Twisted Pair)
- Conductor: 23 AWG (0.57 mm) Solid Bare Copper
- Shielding: Aluminum foil tape with tinned copper drain wire
- Insulation: Features a central isolation member for reduced crosstalk
- Performance: Supports 10GBASE-T up to 100 meters
- PoE Support: IEEE 802.3af (Type 1), 802.3at (Type 2), 802.3bt (Type 3 & 4), and PoH
- Temperature Rating: Rated for up to 75º C
Applications
- Mobile outdoor digital audio and network signal transmission
- Smart Home and Office Automation systems
- High-density Data Centers
- IP Converging applications (VoIP, IP Video)
Technical Specifications
Standards Compliance
- ISO/IEC 11801-1 Ed.1.0
- ANSI/TIA 568.2-E & IEC 61156-5 Ed 2.0 (Cat 6A)
- UL CMR, CSA FT4, UL CM
- LSOH/EuroClass: IEC 60332-1, IEC 60332-3-22, EN 50575 Class Dcas2d2a1
Electrical Specifications
| Property | Value |
| DC Resistance | < 8.5 Ω / 100m |
| DC Resistance Unbalance | ≤ 4% (@ 20°C) |
| Mutual Capacitance | 5.6 nF / 100m |
| Capacitance Unbalance | < 160 pF / 100m |
| NVP (Nominal Velocity of Propagation) | 67% |
| TCL | 30 – 10 log(f/100) dB |
| Delay Skew | ≤ 45 ns |
Physical Properties
| Parameter | Rating (LSOH / CM / CMR) |
| Cable O.D. (Nominal) | 6.99 mm (0.275 in.) |
| Pulling Tension (Max) | 110 N (25 lbf) |
| Bend Radius (Min) | 27 mm (1.1 in.) |
| Installation Temperature | 0 to 60°C (+32 to 140°F) |
| Operating Temperature | -20 to 75°C (-4 to 167°F) |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
Ordering Information
Part Number Structure: 9A6(X)4-A5-XX
- Jacket Material (X):
- M = PVC (CM, IEC 60332-1), Grey Jacket
- R = Riser (CMR, CSA FT4), Blue Jacket
- L = LSOH (IEC 60332-1, IEC 60332-3-22), Violet Jacket
- Standard Length: 305m (1000 ft.) Reel
- Color Codes (XX): 01=Black, 02=White, 03=Red, 04=Grey, 05=Yellow, 06=Blue, 07=Green, 08=Violet, 09=Orange
