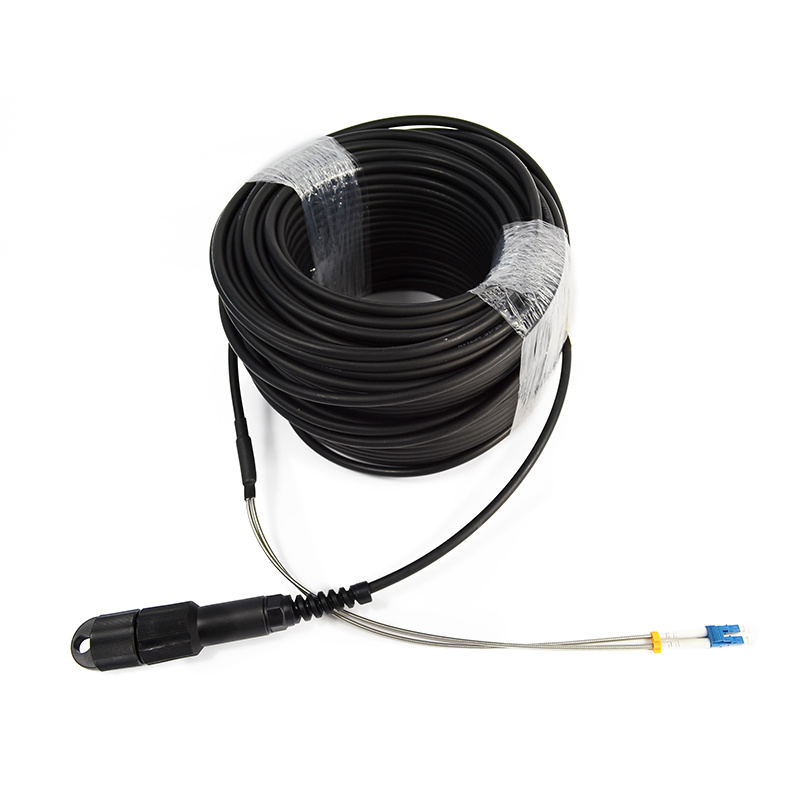

CPRI LCDX Cables
Product Description
PDLC connectors and required optical cables have become standard interface applications for 4G, 5G and wireless base stations, such as remote wireless, optical fiber to antenna, etc. This product is not only suitable for these fields, but also for industrial, aerospace, national defense and other fields. The cable assembled by PDLC has been tested by salt spray. The waterproof grade reaches IP67. It is easy to install and transmit reliable data over a long distance under harsh environment.
Features
- Standard Duplex LC connector, low IL, high RL.
- IP67 protection, salt-mist proof, humidity proof,dust proof.
- Easy Operation, reliable and cost-effective Installation.
- 100% optically tested to ensure quality performance assemblies.
Specification
| Optical Characteristics | ||
|---|---|---|
| Item | Single mode | Multimode |
| Insertion loss | Single mode | Multimode |
| Typical value ≤0.15 dB; Maximum ≤0.30 dB | Typical value ≤0.15 dB; Maximum ≤0.30 dB | |
| Return loss | ≥ 60 dB (APC); ≥ 50 dB (UPC) | ≥ 30 dB (UPC) |
| Mechanical Characteristics | ||
| Test | Conditions | |
| Endurance | 500 matings | |
| Vibration | Frequency: 10 to 55 Hz, Amplitude: 0.75 mm | |
| Cable retention | 400 N (main cable); 50 N (connector part) | |
| Strength of coupling mechanism | 80 N for 2 to 3 mm cable | |
| Cable torsion | 15 N for 2 to 3 mm cable | |
| Fall | 10 drops, 1 m drop height | |
| Static lateral load | 1 N for 1 h (main cable); 0.2 N for 5 min (branch part) | |
| Cold | -25 °C, 96 h duration | |
| Dry heat | +70 °C, 96 h duration | |
| Change of temperature | -25 °C to +70 °C, 12 cycles | |
| Humidity | +40 °C at 93%, 96 h duration | |
Application
- Multi-purpose Outdoor
- For connection between distribution box and RRH
- Deployment in Remote Radio Head cell tower applications
