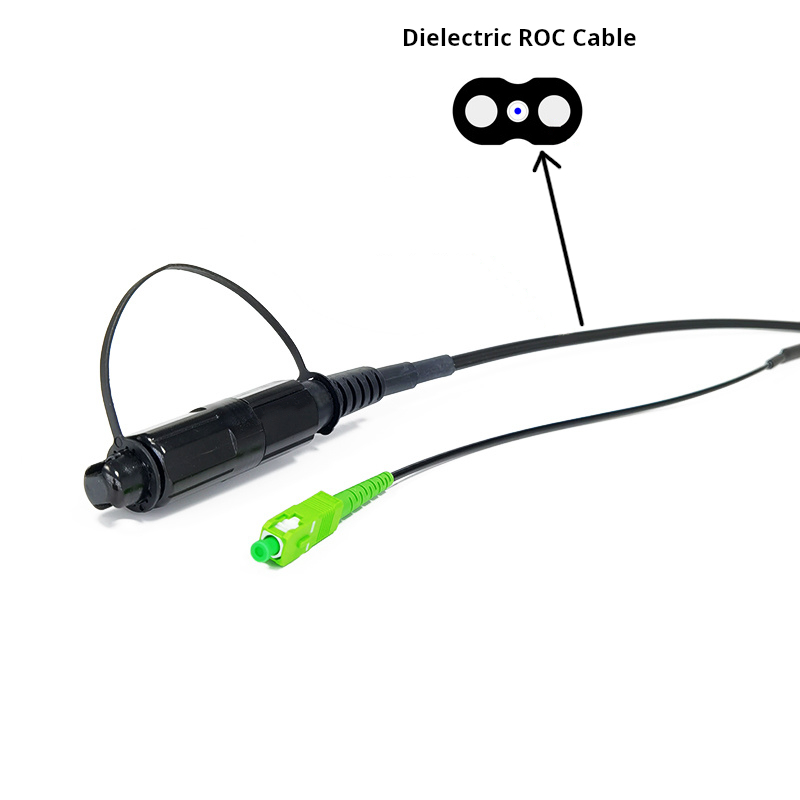

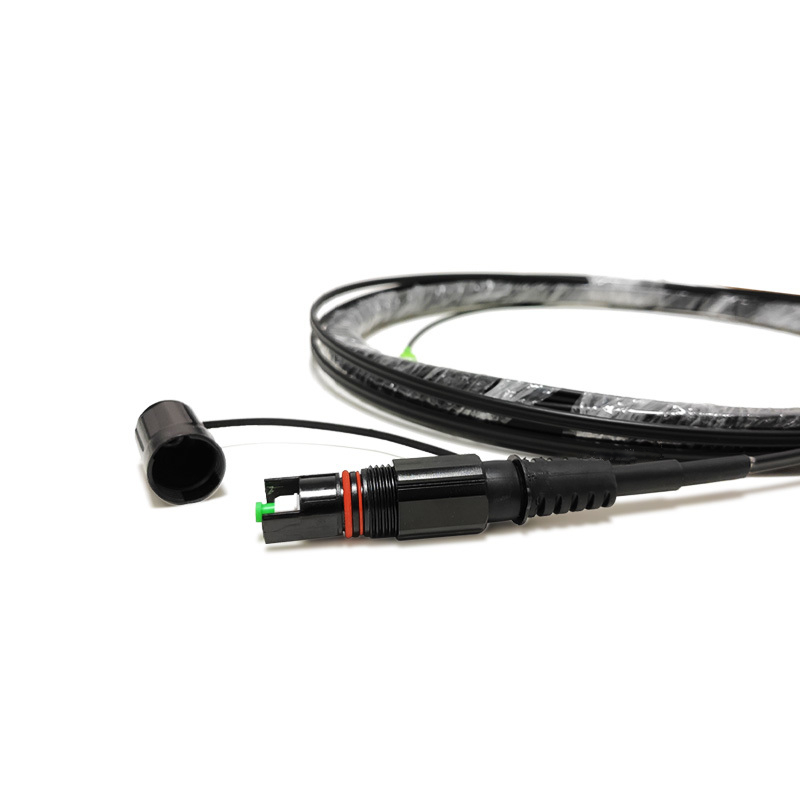

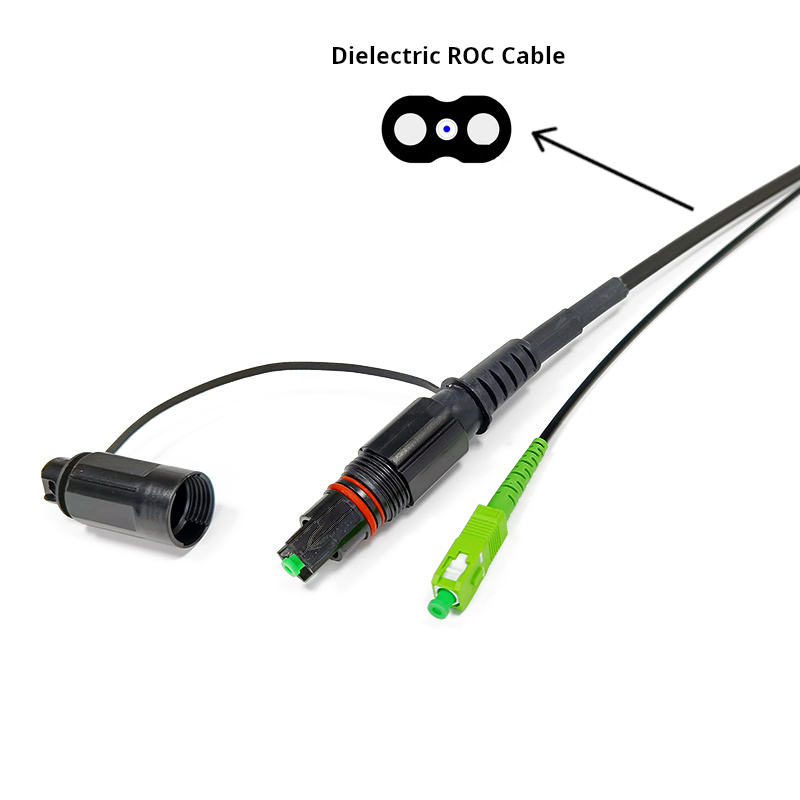

Dielectric ROC Drop Cable Assemblies

Description

Dielectric ROC Optitap Drop

Product Description

ZTO Cable ROC Drop Cable Assembly features factory-terminated, environmentally sealed, and hardened connectors, significantly reducing both the cost and time required for drop cable deployment. The OptiTap hardened connectors ensure superior durability and long-term reliability in the drop segment of the network.

This assembly also brings major improvements to cable management. With the ROC drop cable design, issues related to slack storage capacity are virtually eliminated. The minimum bend radius is reduced to half that of traditional drop cables, while the outer cable dimensions are reduced by over 50%, offering a more compact and flexible solution.

ROC drop cables are easier to route at the ONT and require less truck storage space, making them a highly efficient choice for modern optical access networks.

Features

• Compatible with Corning-OptiTap and H-Connector;
• Factory terminated for high performance;
• Available with one or both ends connectorized;
• Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip;
• Available in dielectric or toneable;
• Designed for aerial, direct-buried or duct installation;
• IP-68 water and dust protection ;
• -40℃~85℃ operating temperature;

Specification

Application

• FTTH;
• Outdoor Areas;
• Harsh Environment.
