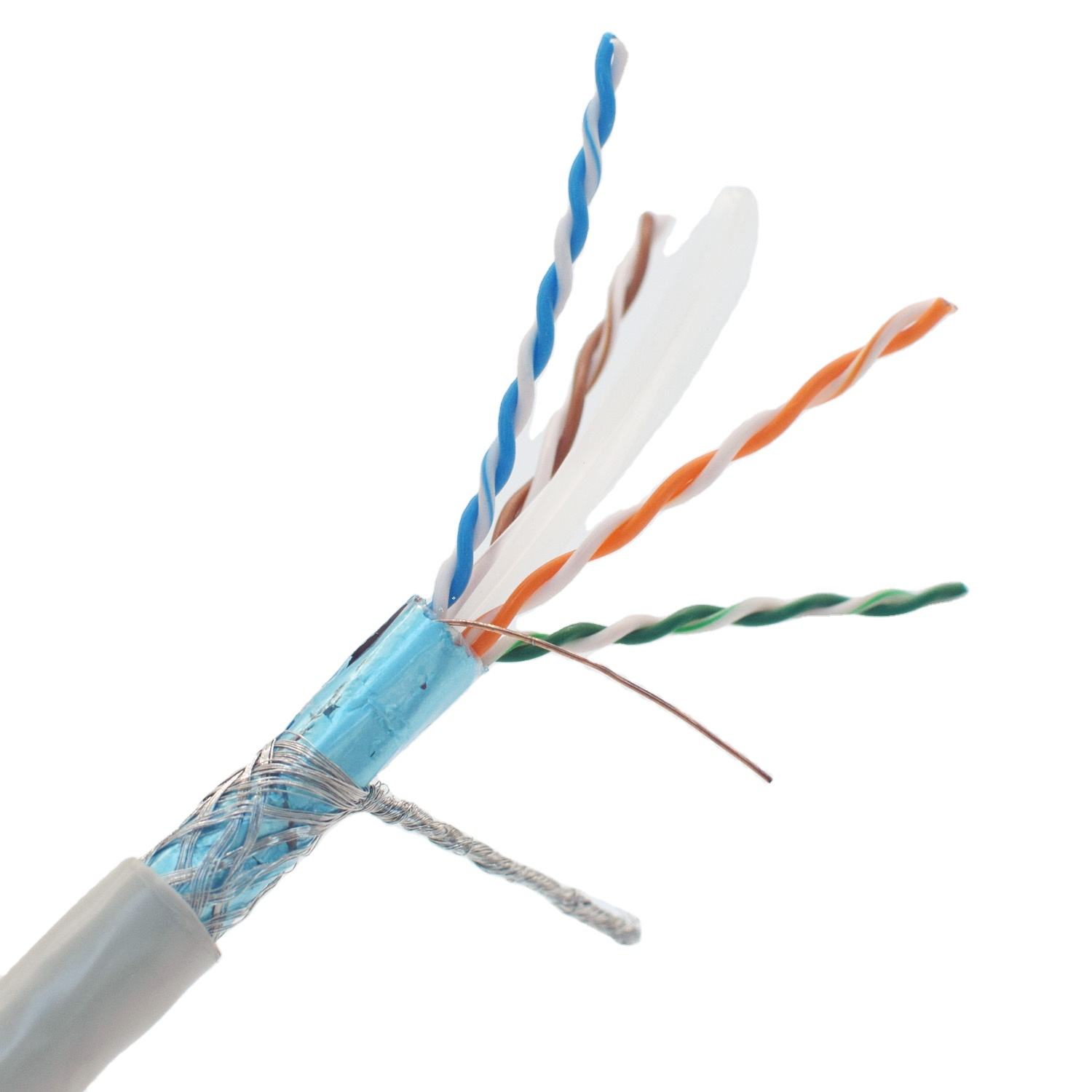

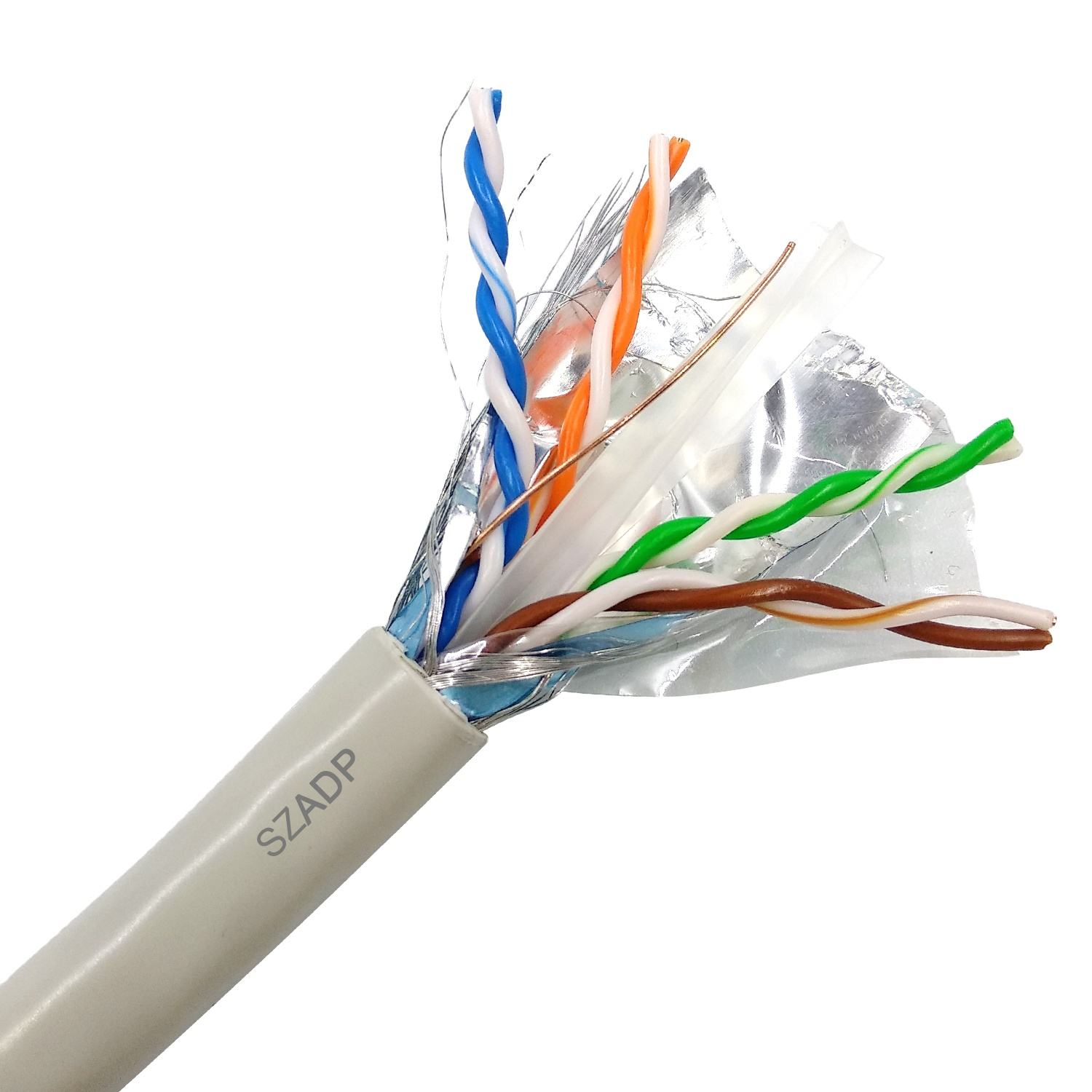

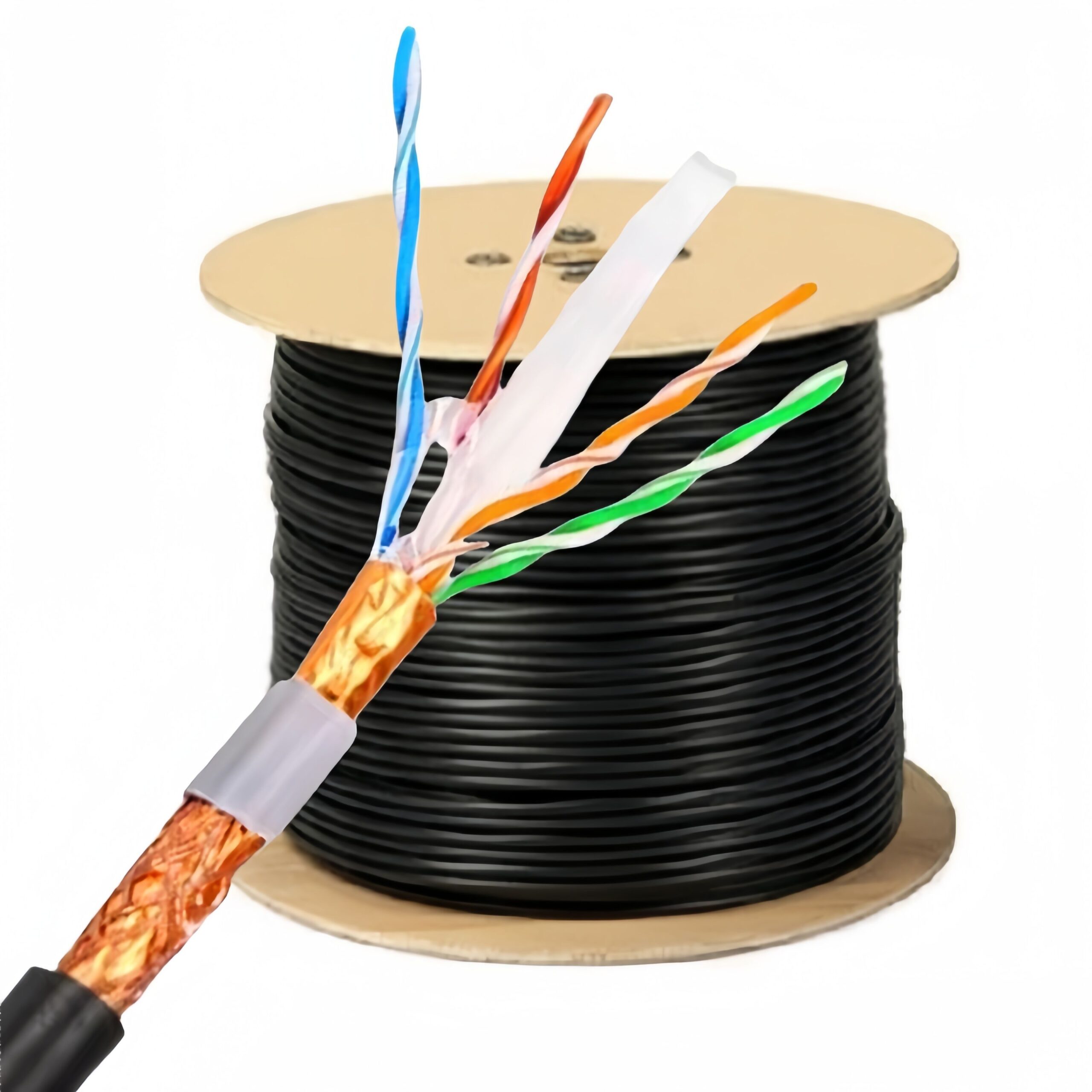

High-Flex Outdoor SF/UTP CAT6a Ethernet Cable
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description
The WDPCAT6AT High-Flex Outdoor SF/UTP CAT6a Ethernet Cable is a high-quality, cost-effective data transmission solution designed specifically for portable and outdoor applications. Engineered with a robust Thermoplastic Elastomer (TPE) outer jacket, this cable offers exceptional resilience and flexibility, making it ideal for scenarios requiring repeated coiling and deployment.

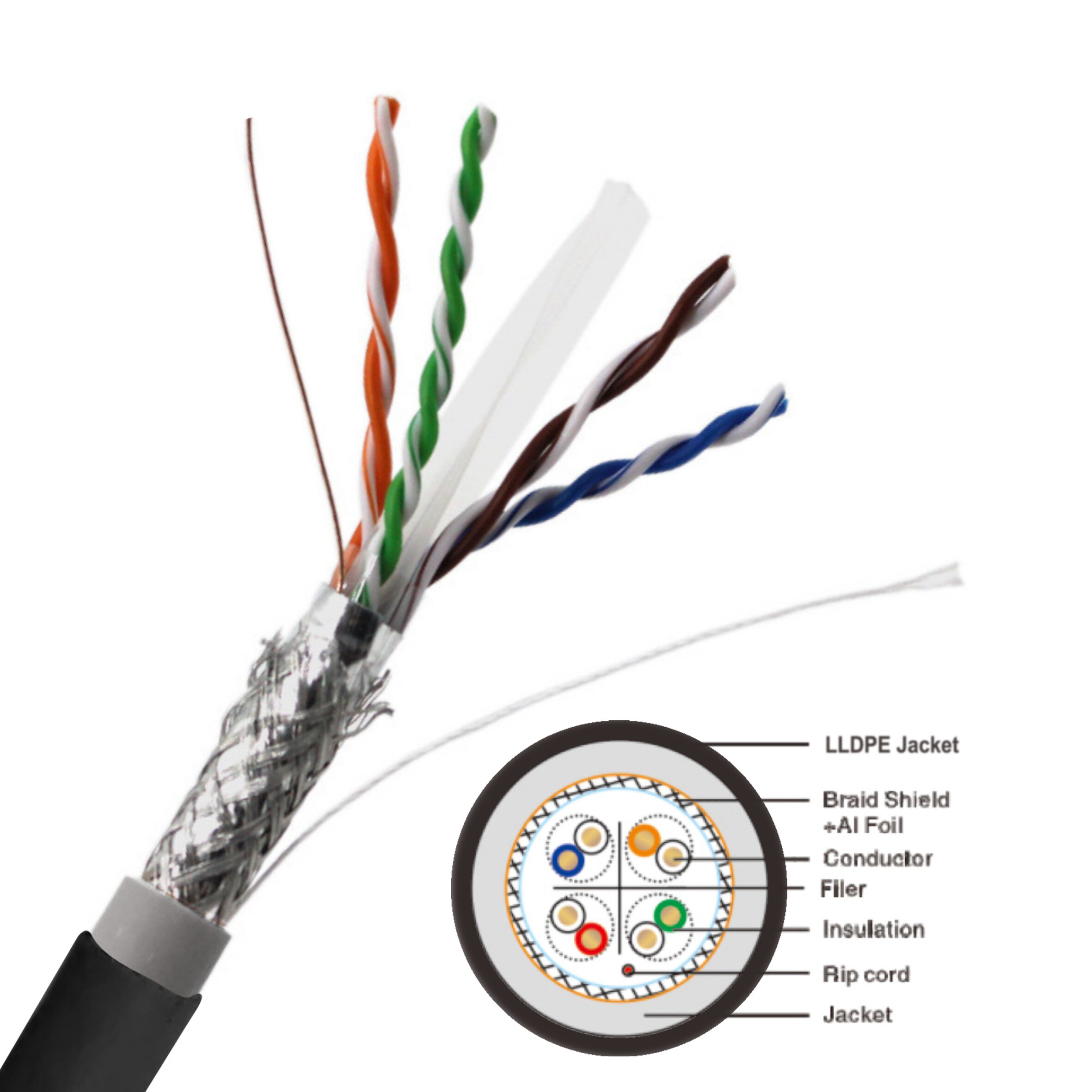

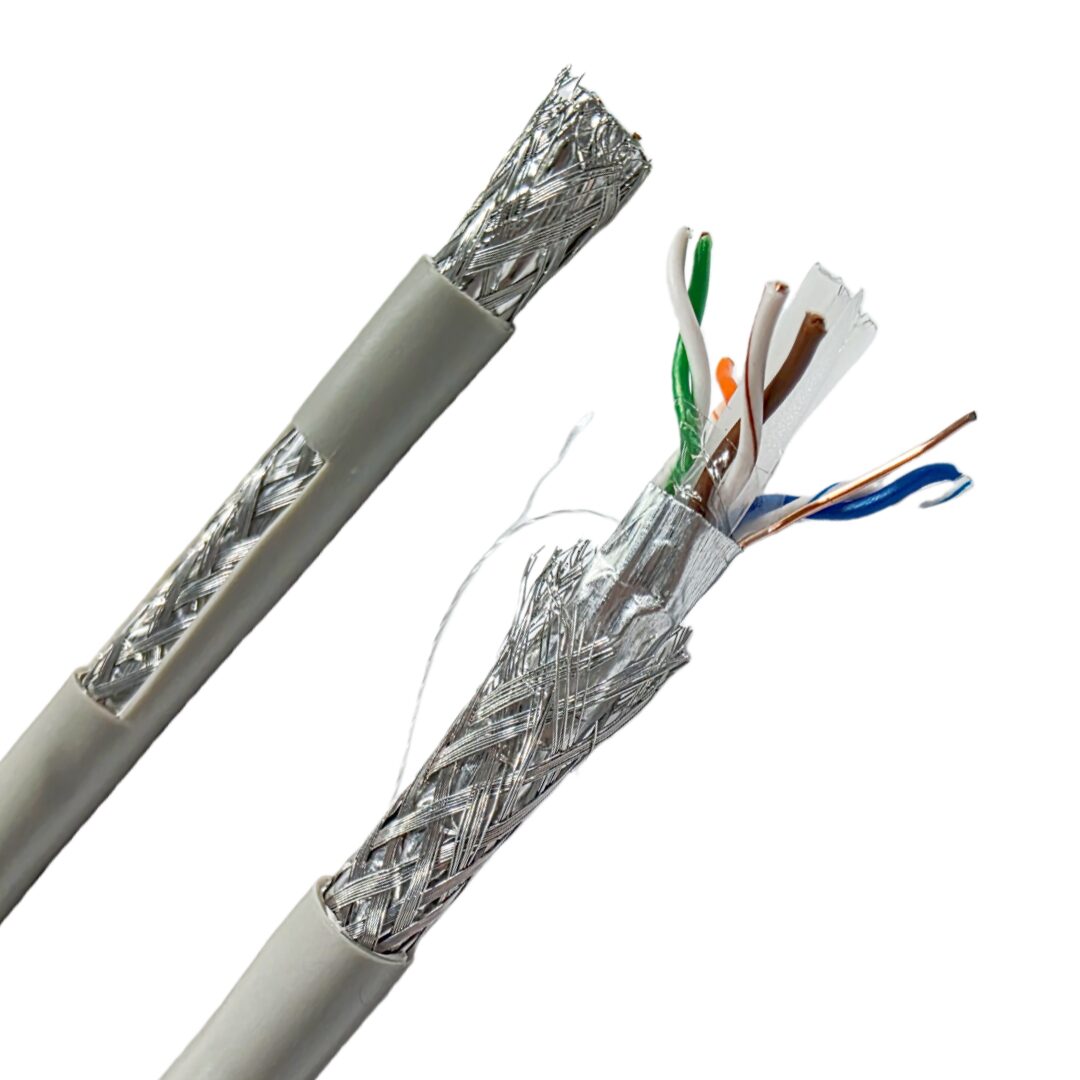

Constructed with 24 AWG stranded tinned copper conductors, the cable meets EIA/TIA568B2 and IEC 61156-6 compliance standards. It features a double shielding design (Tinned Copper Braid + Aluminized Polyester Foil) to minimize interference. The durable jacket is resistant to sunlight, weld spatter, and machining oil, ensuring reliability in harsh industrial and outdoor environments with a flex life exceeding 1 million cycles.
Key Applications
- Mobile outdoor transmission of digital audio or network signals
- Smart Home and Office networking
- Data Center cabling
- Industrial environments requiring flexible, oil-resistant cabling
General Specifications
| Conductor | 24 AWG (0.25 mm²) 7/32 Stranded Tinned Copper |
| Insulation | High Density Polyethylene (HDPE) |
| Shielding | Inner: Aluminized Polyester Foil (100% coverage) Outer: 38 AWG Tinned Copper Braid (75% min coverage) |
| Jacket Material | Thermoplastic Elastomer (TPE), Black |
| Cable Diameter | 8.3 mm ± 0.254 mm (0.325″) |
| Flex Rating | ≥ 1,000,000 flexes (@ 10X O.D., 20°C) |
| Temp Rating | -40°C to +75°C (Storage/Operation) |
| Weight | 72.2 kg/km (48.5 lbs/mft) |
| Resistances | Sunlight, Weld Spatter, Cutting/Machining Oil |
Electrical Specifications
| Voltage Rating | 300V Max |
| Impedance | 1-100 MHz: 100 ± 15 Ω 100-500 MHz: 100 ± 20 Ω |
| Velocity of Propagation | 68% |
| Dielectric Strength | 1500V RMS Min. |
| Mutual Capacitance | 13.5 pF/Ft @ 1 MHz Nom. |
| DC Resistance | 14.0 Ω Max |
| Delay Skew | < 25 ns (1-500 MHz) |
Compliance & Approvals
- Ethernet Compliance: CAT6a Channel Requirements up to 88 Meters (TIA TSB-184)
- PoE: POE Compliant (802.3af) to 88 Meters
- NEC/CEC: (UL) Type CMX Outdoor-CM
- Environmental: RoHS Compliant
