High-Performance Cat6 Ethernet Cable (305m/1000ft)
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description
The High-Performance Cat6 Ethernet Cable is engineered to deliver reliable Gigabit Ethernet connectivity with bandwidth frequencies up to 250 MHz. Available with Bare Copper (BC) or Copper-Clad Aluminum (CCA) conductors, it ensures stable high-speed data transmission for modern network infrastructures.

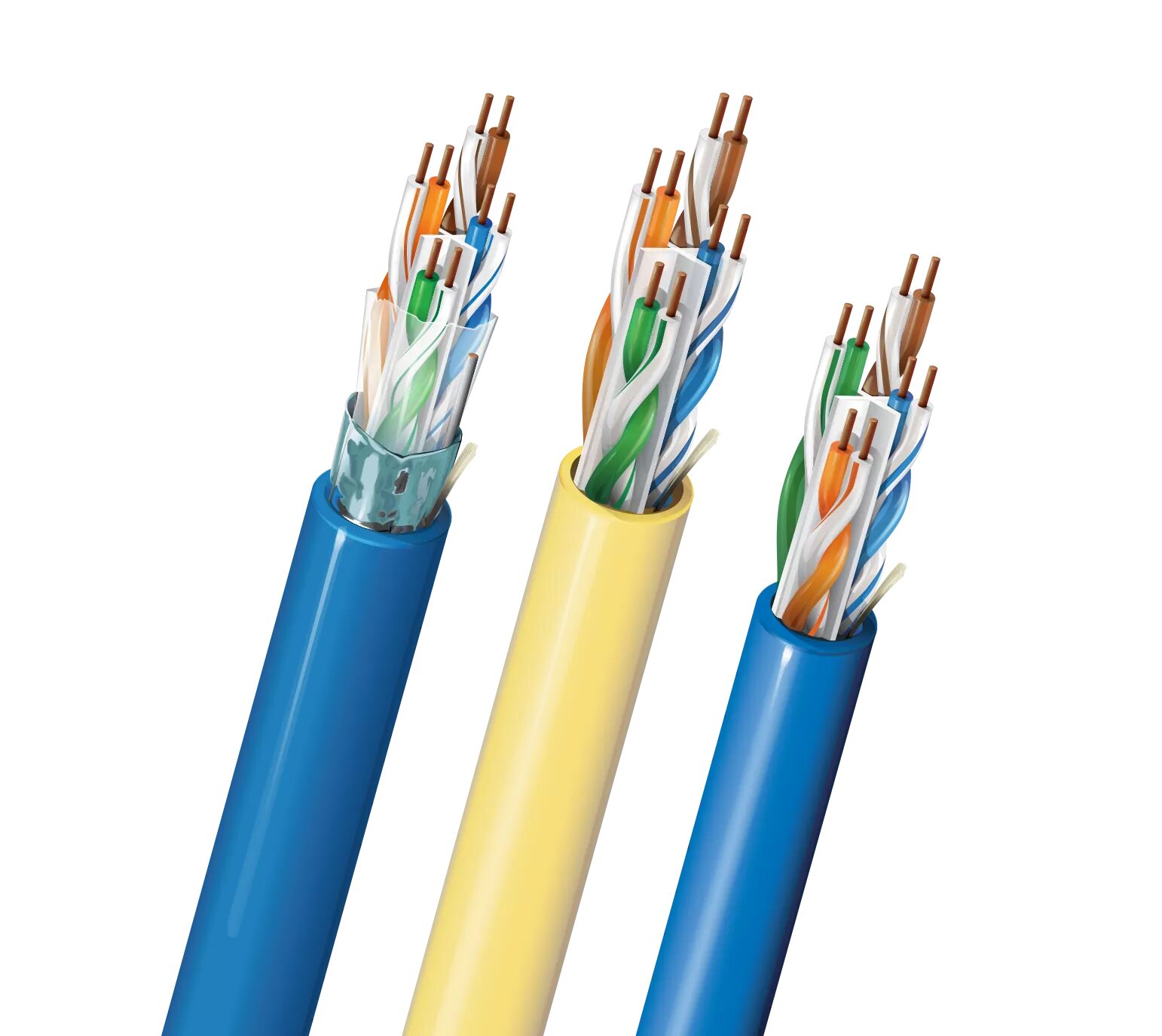

Designed for versatility, this cable offers multiple shielding options including U/UTP, F/UTP, SF/UTP, and S/FTP to effectively minimize crosstalk and Electromagnetic Interference (EMI). It is compliant with TIA/EIA-568-C.2 standards and features a verified Fluke Test performance up to 100 meters, guaranteeing consistent signal quality.
The cable is encased in durable jacket materials such as PVC, LSZH, or PE, catering to both indoor and outdoor installation requirements. Packaged in a standard 305m (1000ft) wooden reel or pull box, it is the ideal choice for professional structured cabling in offices, data centers, and residential networks.
Key Features
- Reliable Signal Integrity: High-quality BC/CCA conductors ensure stable data, voice, and video transmission.
- Verified Performance: Passes Fluke Channel Testing up to 100 meters.
- Reduced Interference: Advanced shielding options reduce EMI and crosstalk for cleaner signal quality.
- Durable Construction: Available in PVC, LSZH, and PE jackets for enhanced durability and flexibility.
- Ease of Use: Packaged in tangle-free pull boxes or reels with meter marking for easy installation.
- Certified Quality: CE, RoHS, and ISO9001 certified.
Technical Specifications
| Category | Category 6 (Cat6) |
| Conductor Material | Bare Copper (BC) / Copper-Clad Aluminum (CCA) |
| Cable Type/Shielding | U/UTP, F/UTP, SF/UTP, S/FTP |
| Jacket Material | PVC / LSZH (Low Smoke Zero Halogen) / PE (Polyethylene) |
| Standard Length | 305 meters (1000 ft) / Reel or Pull Box |
| Performance Standard | TIA/EIA-568-C.2 |
| Frequency | 250 MHz |
| Test Verification | Fluke Test Pass (100m) |
| Color Options | Grey, Blue, White, or Customized |
| Supported Networks | Ethernet, Fast Ethernet, Gigabit Ethernet |
Applications
- Structured cabling systems (Backbone and Horizontal cabling)
- Office buildings, data centers, and server rooms
- High-speed data, VoIP voice, and video surveillance transmission
FAQ
- Q: What is the maximum reliable length for this cable?
A: It reliably supports data transmission up to 100 meters, as verified by standard Fluke testing. - Q: Can this cable be used for outdoor installations?
A: Standard PVC and LSZH jackets are designed for indoor use. For outdoor or harsh environments, we recommend selecting the PE (Polyethylene) jacket option for better weather resistance. - Q: Is the cable easy to terminate?
A: Yes, the standard Cat6 construction and flexible jacket options make termination straightforward using standard RJ45 connectors and crimping tools.
