High Strength Cable Anchor Dead End Anchoring Wedge Clamp
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description
Our hot-dip galvanized wedge tension clamp provides reliable termination for overhead line conductors. Its self-locking wedge mechanism ensures a secure, maintenance-free grip that tightens under vibration. Available in full size ranges for ACSR, AAAC and AAC conductors. Designed for easy installation without special tools.

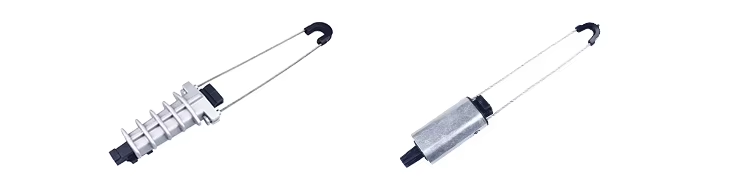

| Type | Cross-section (mm2) | Messenger DIA.(mm) | Breaking Load (kN) |
| PAL1000A | 16-35 | 7–10 | 10 |
| PAL1000 | 25-35 | 8.5-10 | 12 |
| PAL1000 | 16-70 | 7–13 | 12 |
| PAL1500 | 50-70 | 11–13 | 15 |
| PAL2000 | 70-150 | 13-18 | 15 |
| PAL90-1500 | 35-70 | 10–13 | 12 |
| PAL90-1500A | 25-50 | 8–11 | 12 |

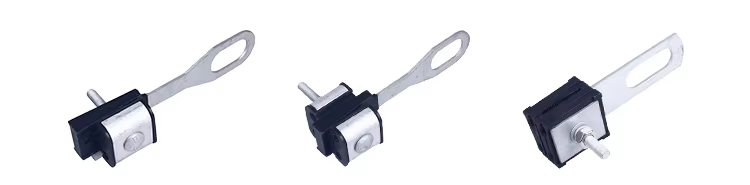

| Type | Cross-section(mm2) | Meaaenger DIA.(mm) | Breaking Load (kN) |
| PA2/35 | 2×16-35 | 7–10 | 5 |
| PA4/35 | 4×16-35 | 7–10 | 5 |

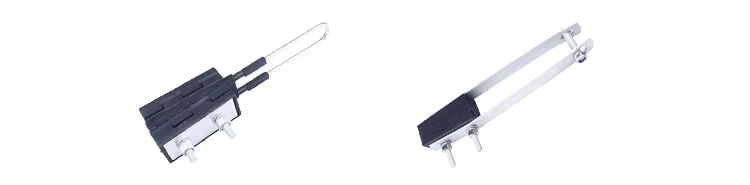

| Type | Cross-section(mm2) | Meaaenger DIA.(mm) | Breaking Load (kN) |
| KW116 | 4×16-50 | 7–13 | 20 |
| NES-1B | 4×16-50 | 7–13 | 20 |
| NES-2B | 4×70-120 | 13-16 | 20 |

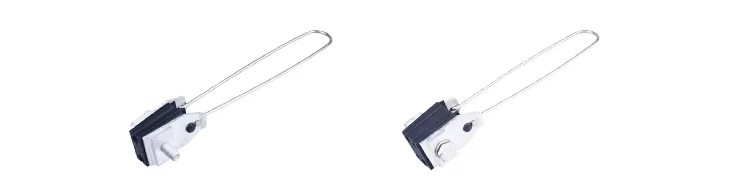

| Type | Cross-section(mm2) | Meaaenger DIA.(mm) | Breaking Load (kN) |
| KW160 | 2×16-35 | 7–10 | 5 |
| KW161 | 4×16-35 | 7–10 | 5 |
| PA4/16~35 | 2×16/4×35 | / | 12 |
