IP-FX FullAXS Connector Cable Assemblies

Description

FullAXS Cable Assemblies

Product Description

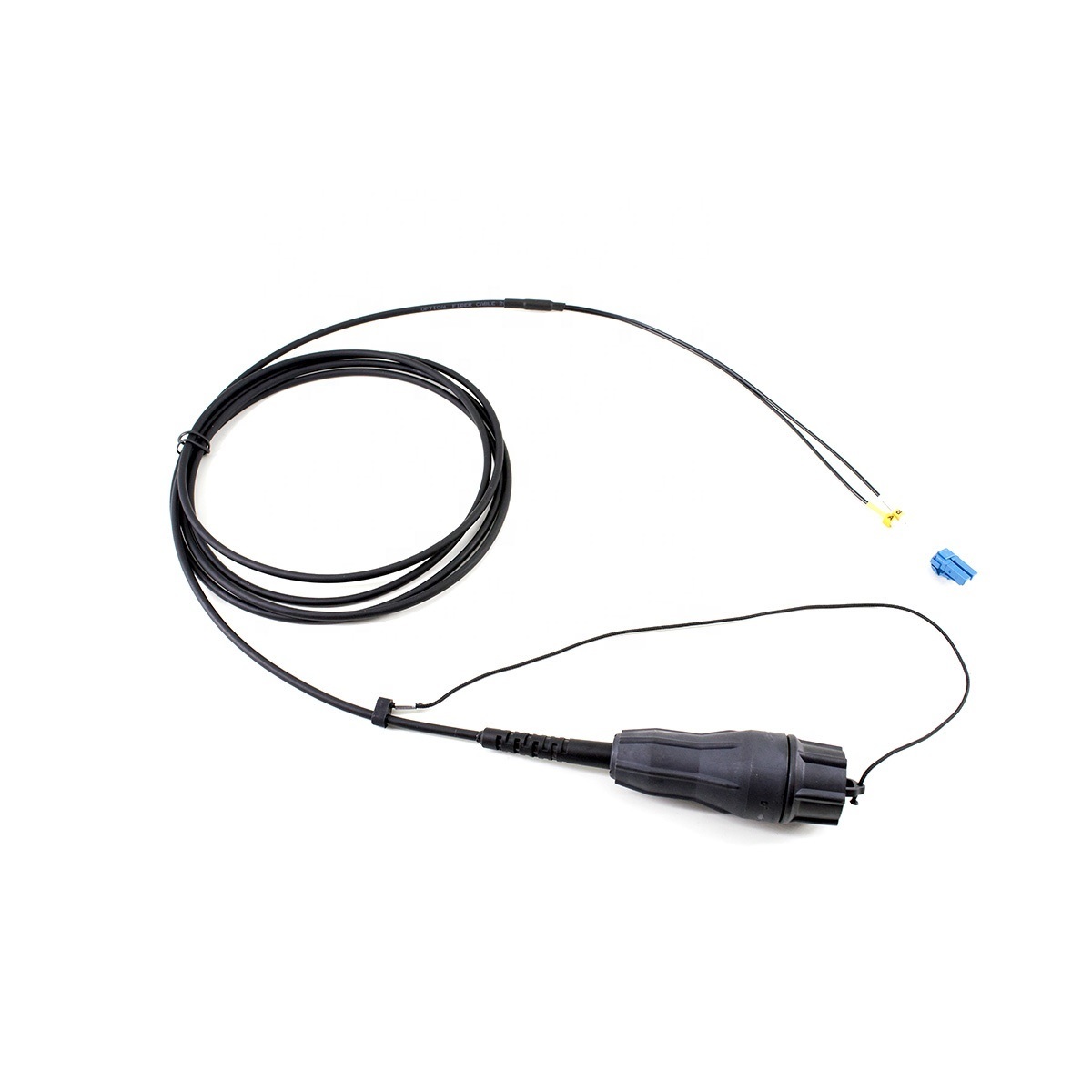

IP-FX FullAXS is a outdoor connector that designed to provide IP-67 water and dust seal over Fullaxs-LC Duplex, MTP/MPO and other connector types. Angnet’s FullAXS Connector Cable Assemblies meets the needs of next generation WiMAX and Long Term Evolution (LTE) Fiber/Power/Signal To The Antenna (x-TTA) connectivity designs, This allows for the usage of strong cable assemblies on the outdoors.Features include a water tight seal up to IP67 levels, Applications include WiMAX and LTE Base Stations, Remote Radio Heads (RRH), FTTA outdoor applications.

Features

• Factory terminated (tested cables) or Field installable version available
• Ruggedised sealing system for Fiber-to-the-Antenna (FTTA) and industrial applications
• IP67 water, dust proof and corrosion resistant, UV-resistant
• Open bulkhead for easy access to SFP
• Duplex LC interface
• Waterproof, dust proof and corrosion resistant
• Robust bayonet locking for easy, fast and secure mating
• Expansion to RJ45 and power possible

Specification

Optical Characteristics
Item	Single mode	Multimode
Insertion loss	Single mode	Multimode
	Typical value ≤0.15 dB; Maximum ≤0.30 dB	Typical value ≤0.15 dB; Maximum ≤0.30 dB
Return loss	≥ 60 dB (APC); ≥ 50 dB (UPC)	≥ 30 dB (UPC)
Mechanical Characteristics
Test	Conditions
Endurance	500 matings
Vibration	Frequency: 10 to 55 Hz, Amplitude: 0.75 mm
Cable retention	400 N (main cable); 50 N (connector part)
Strength of coupling mechanism	80 N for 2 to 3 mm cable
Cable torsion	15 N for 2 to 3 mm cable
Fall	10 drops, 1 m drop height
Static lateral load	1 N for 1 h (main cable); 0.2 N for 5 min (branch part)
Cold	-25 °C, 96 h duration
Dry heat	+70 °C, 96 h duration
Change of temperature	-25 °C to +70 °C, 12 cycles
Humidity	+40 °C at 93%, 96 h duration

Application

• Wireless outdoor applications
• WiMAX and LTE base stations
• Remote Radio Heads (RRH)
• Industrial outdoor applications
