ZTO Mini Figure 8 cable aerial uni tube GYXTC8S
Fiber Optic Cable

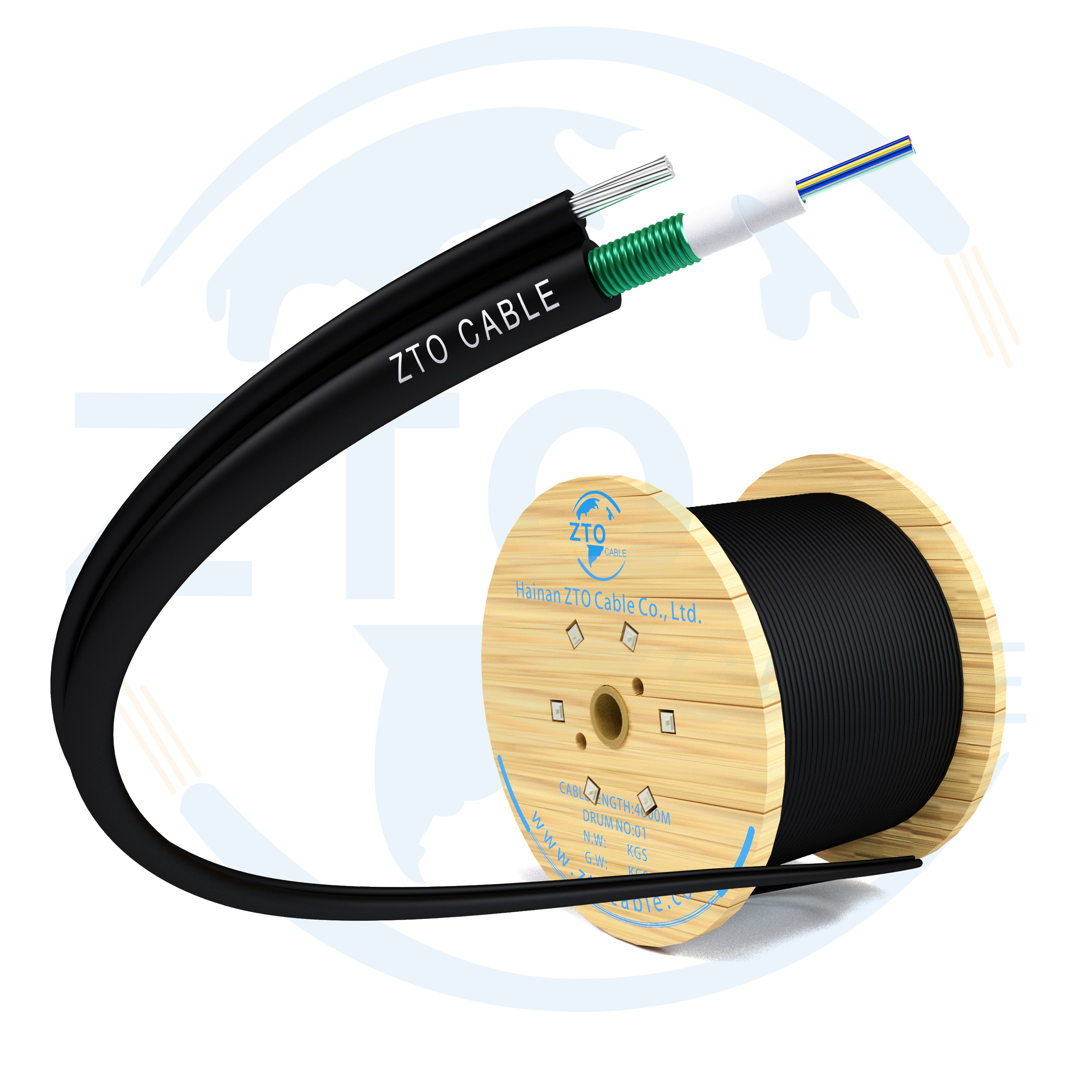

Mini Figure 8 Fiber Optic Cable Aerial Uni Tube GYXTC8S

Inquire Online

  • Check Mark Satisfaction guarantee
  • Check Mark Fast delivery
  • Check Mark Quality assurance
Categories: , Tags: , , ,

Description

The Mini Figure 8 Fiber Optic Cable Aerial Uni Tube GYXTC8S is a specialized type of outdoor fiber optic cable designed for aerial installations. The cable is named “mini” figure 8 due to its compact and smaller cross-sectional shape, resembling the number “8.” This design allows two fiber optic cable cores to be placed side by side within the same cable, providing an efficient use of space. The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

Structure

ZTO Mini Figure 8 cable aerial uni tube GYXTC8S
ZTO Mini Figure 8 cable aerial uni tube GYXTC8S

Characteristics

  • High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • PSP enhancing moisture-proof
  • Small diameter, light weight and friendly installation
  • Long delivery length and low price.

Application

Aerial installation, self-supporting, overhead

Standard

 Standard YD/T 1155-2001 as well as IEC 60794-1.

For specific data sheet, please write to info@ztocable.com, whatsapp+86 15802524130 Or click here!
