Description
1F, Singlemode OS2, Opti-Tap Connector to Opti-Tap Connector, Gill-filled, SST Toneable Cable
Product Description

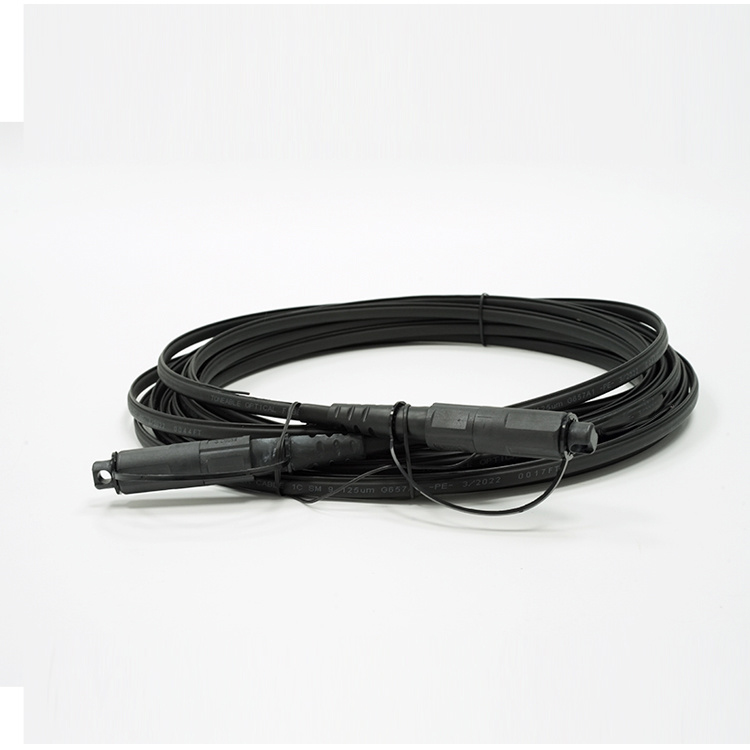

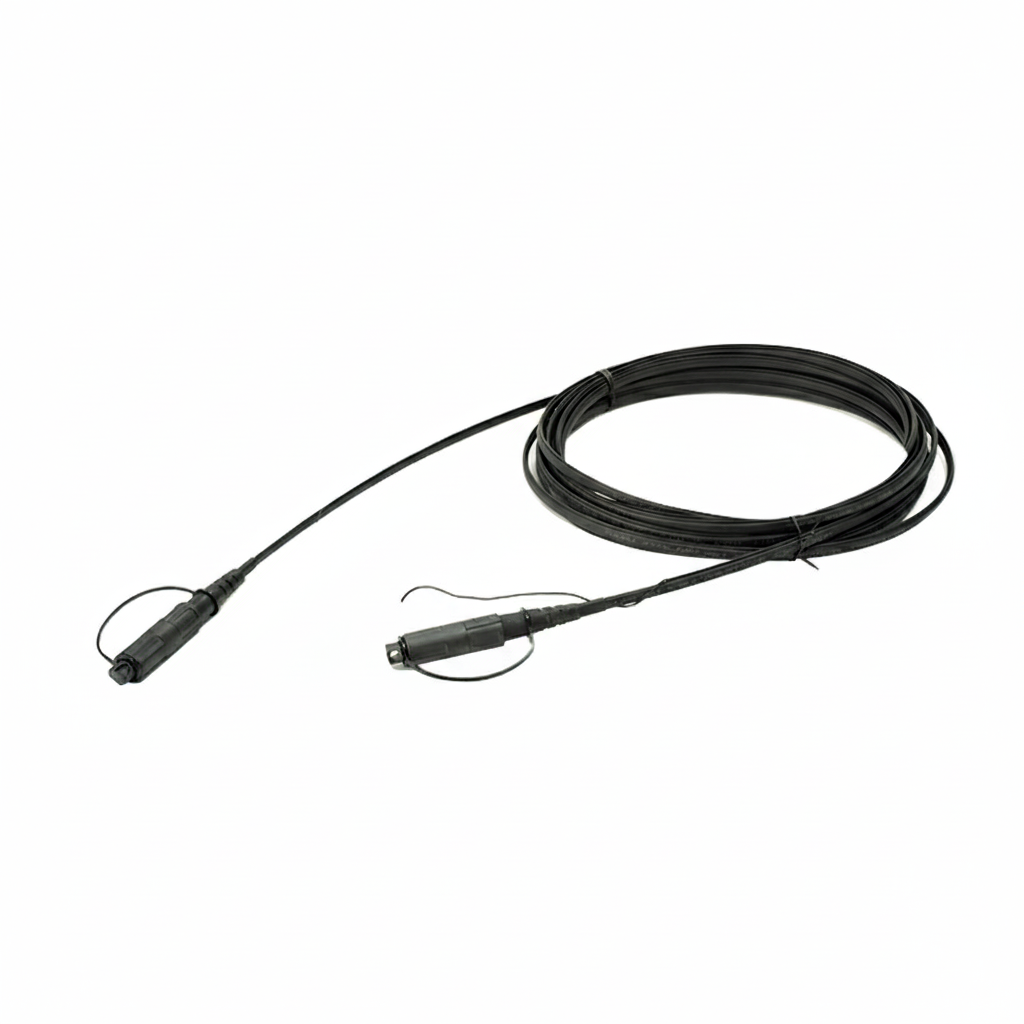

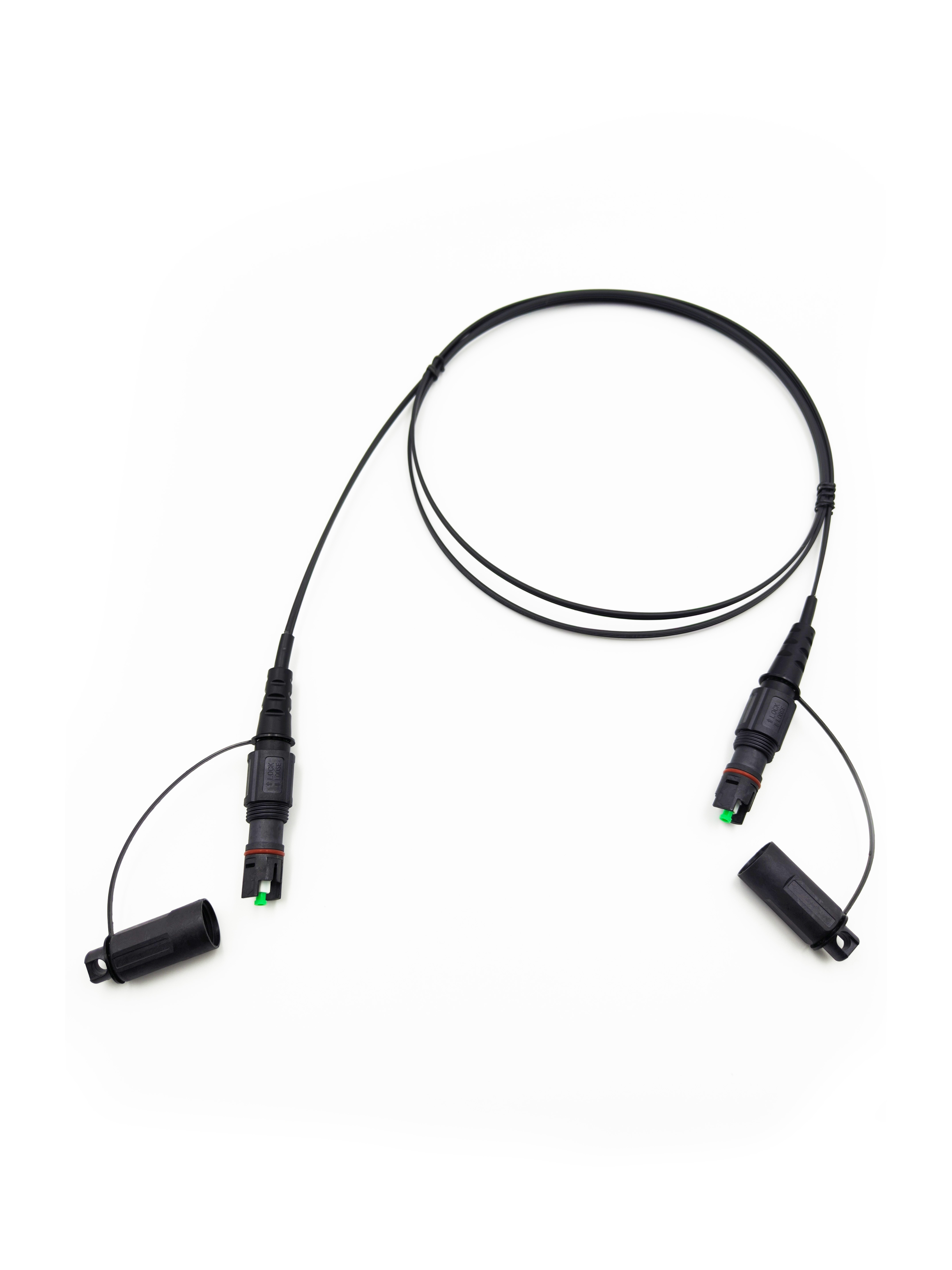

ZTO Cable OptiTap Drop Cable Assembly features factory-terminated, environmentally sealed, and ruggedized connectors, which greatly reduce both the cost and installation time of drop cable deployment in optical access networks. It provides a robust, weatherproof, and sealed connection solution for Fiber-to-the-Home (FTTH) applications.

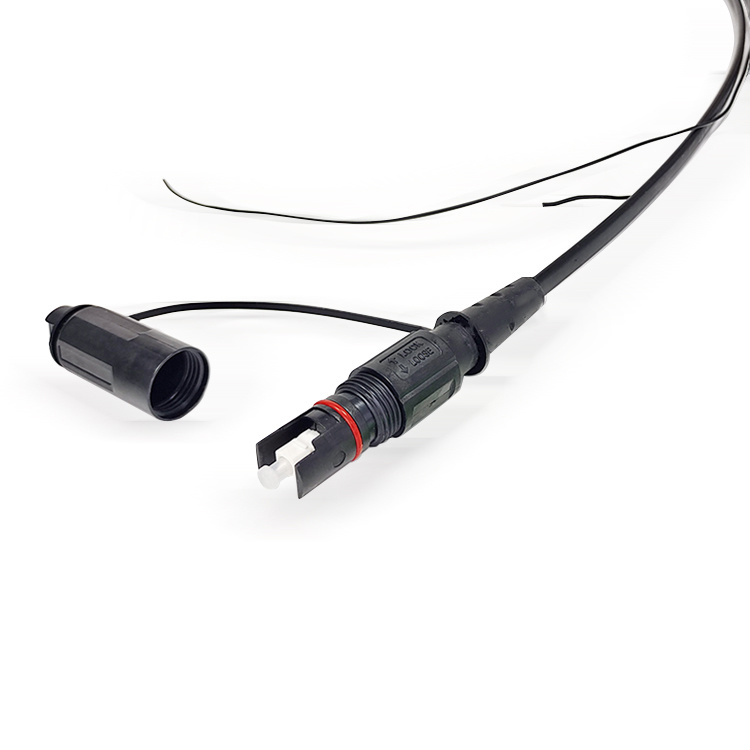

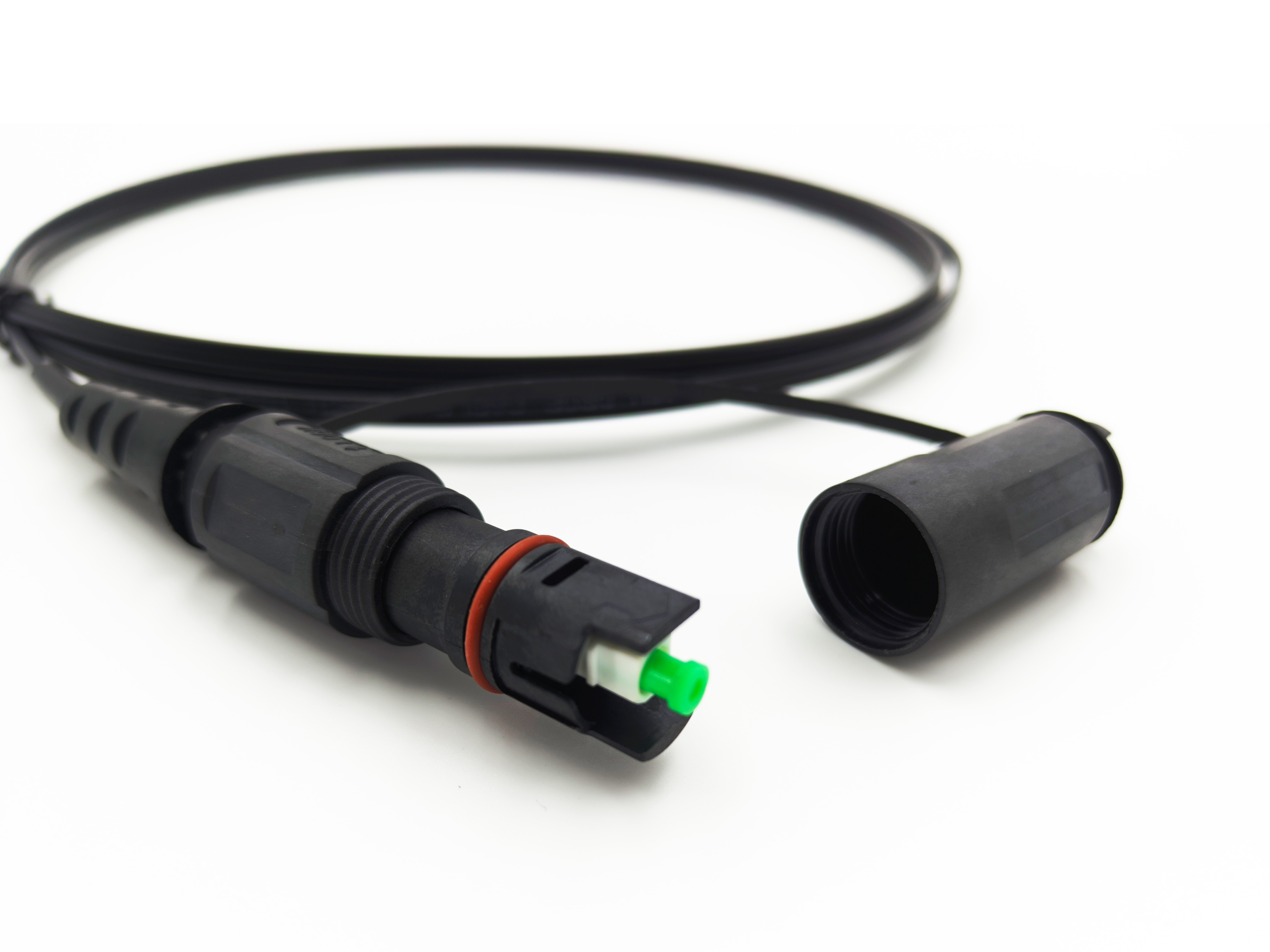

Inside the OptiTap termination, a pre-polished SC/APC connector is housed within a ruggedized OptiTap shell, ensuring durability and reliable performance in harsh outdoor environments. The connector is resistant to extreme temperatures, UV exposure, and water ingress, making it suitable for a wide range of deployment conditions.

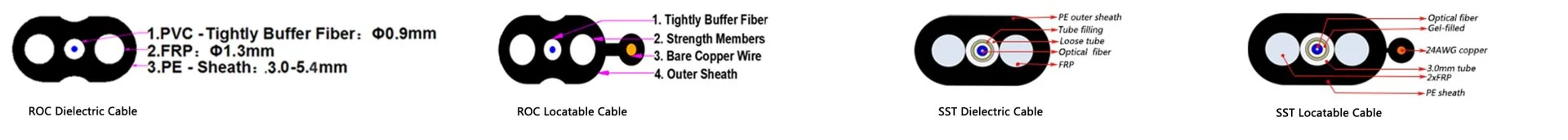

Fully compatible with OptiTap adapters, the assembly ensures ultra-low optical insertion loss and high network reliability. It can be configured with SST cables, ROC flat cables, or traditional round OSP cables, providing a flexible solution for direct burial, conduit, or aerial installations.
Features
- Compatible with Corning-OptiTap and H-Connector;
- Factory terminated for high performance;
- Available with one or both ends connectorized;
- Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip;
- Available in dielectric or toneable;
- Designed for aerial, direct-buried or duct installation;
- IP-68 water and dust protection ;
- -40℃~85℃ operating temperature;
Specification
| Product name | OptiTap to OptiTap Drop Cable |
|---|---|
| Cable Type | dielectric or Toneable |
| Cable diameter | 4.5*9.8mm SST Toneable cable or 4.5*8.1mm SST-Dielectric cable |
| Application | Aerial , Direct Buried , Duct |
| Termination | Both end or one end |
| Specifications – Connector A | |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | SC/APC OptiTap connector(H Connector) |
| Specifications – Connector B | |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | SC/APC OptiTap connector(H Connector) |
| Optical Characteristics | |
| Fiber Type | Single-mode |
| Fiber count | 1F |
| Fiber Category | G.657A1 |
| Wavelengths | 1310 nm / 1550 nm |
| Maximum Attenuation | 0.35 dB/km / 0.25 dB/km |
Application
- FTTH;
- Outdoor Areas;
- Harsh Environment.
