Opti-Tap Field Installable Hardened & Reinforced Connector
Opti Tap

Opti-Tap Field Installable Hardened & Reinforced Connector

Inquire Online

  • Check Mark Satisfaction guarantee
  • Check Mark Fast delivery
  • Check Mark Quality assurance
Category:

Description

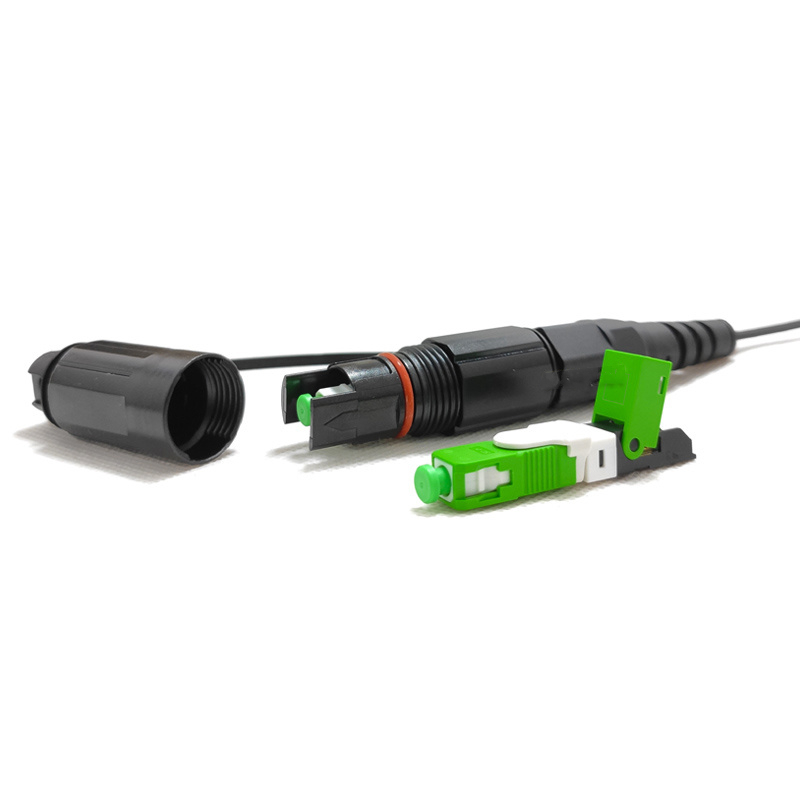

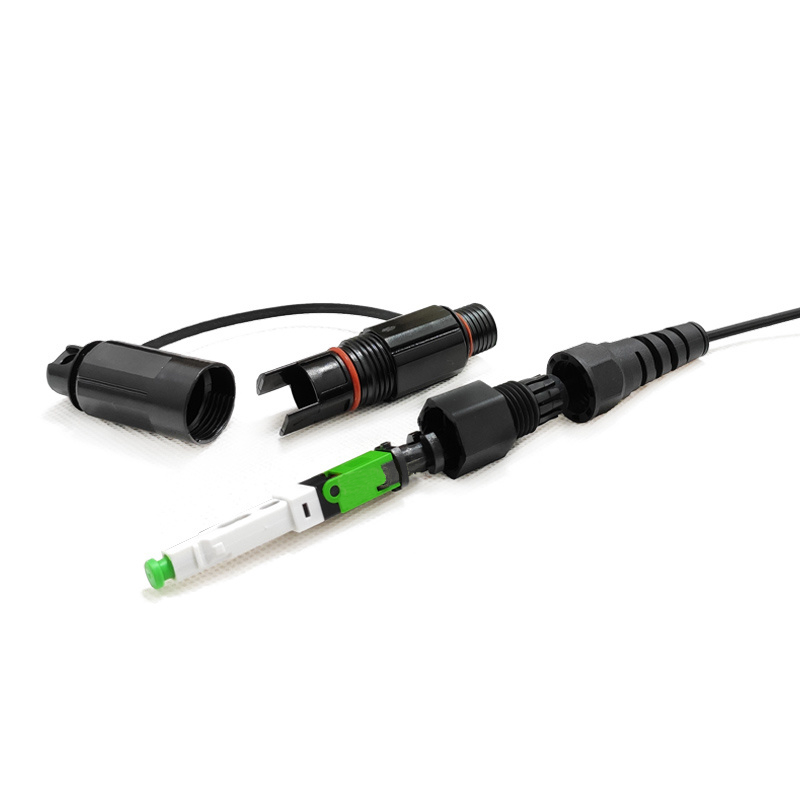

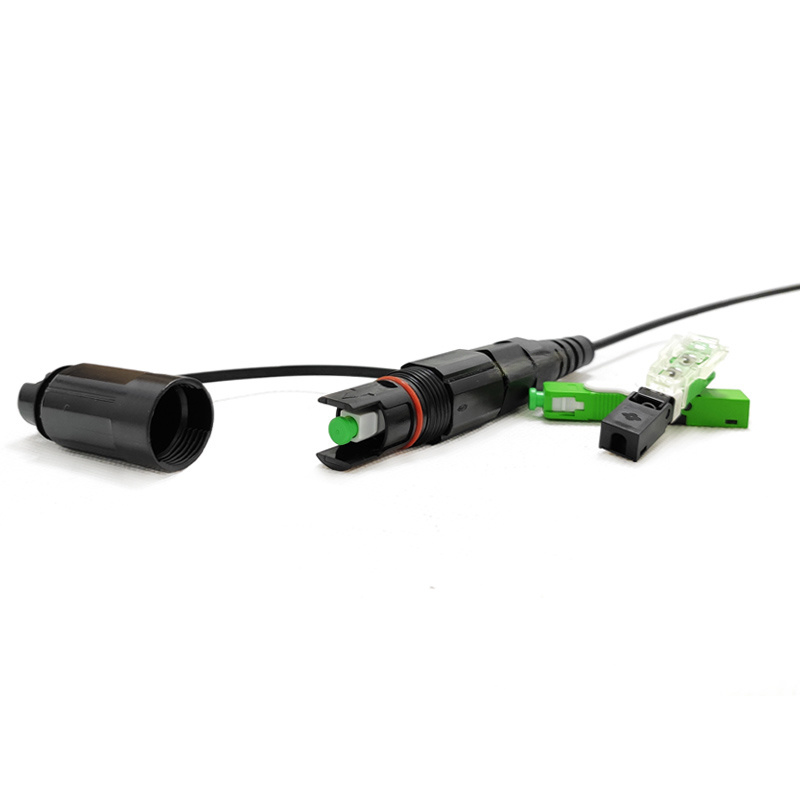

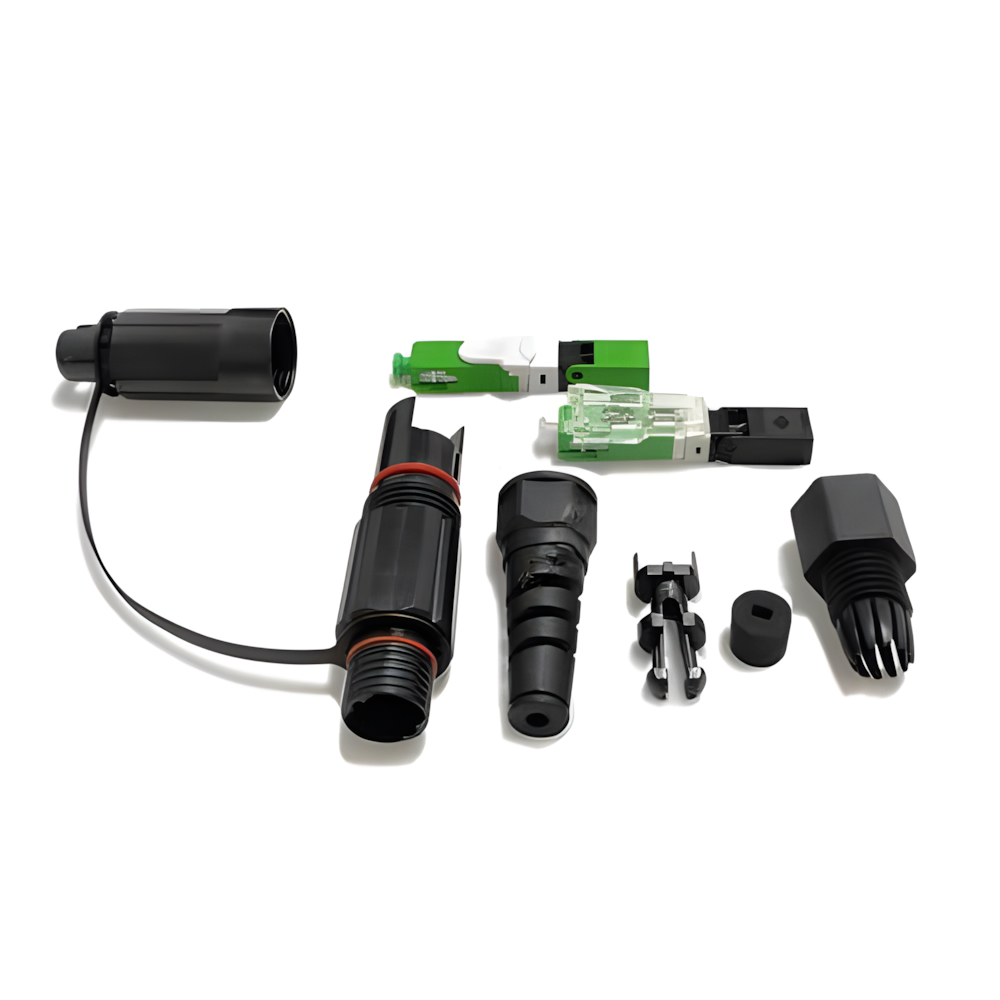

OptiTap Reinforced Optical Connector

Product Description

OptiTap Field Installable Connector is a hardened and reinforced fiber optical connector, which compatible with ESC250D, Sumitomo, Fujikura and Furukawa fast connector. Can be used for 2.0*5.0mm outdoor flat drop cable.

OptiTap reinforced adapter is an excellent solution compatible with Coring OptiTap equipment, it is a filed assembly connector adapter, don’t need to be terminated in a laboratory, it is easy to install and no need special tools.

Features

  • Waterproof level: IP67;
  • Compatible with ESC250D, Sumitomo, Fujikura and Furukawa fast connector;
  • Fully compatible with the connector systems of OptiTap;
  • Field installation, easily mounted on the field mount optical connector, don’t need any specific tools or devices;
  • Low insert loss and high return loss;
  • High mechanical strength performance;
  • PEI material, Acid and alkali resistance, Ultraviolet resistanc;
  • Outdoor use, 20-year service life.

Specification

Optical Characteristics
Parameters  Value
Compatibility Compatible with ESC250D/APC, Sumitomo, Fujikura and Furukawa fast connector
Cable type 2*5mm or 2*3mm flat drop cable
Fiber count 1F
Typical Insertion Loss  ≤0.3 dB
Max Insertion Loss  ≤0.5 dB
Time to terminate 2 min
Max Tensile Strength  200N/m
Mechanical Characteristics
Item Value
Waterproof level IP67
Allowable mating 50 times
Allowable tensile strength 200N (within 60sec)
Material Plastic Reinforced PEI
Color Black
Operating Temperature  –40℃ to +90 ℃
Life Time 20 years

Application

  • FTTH;
  • Outdoor Areas;
  • Harsh Environme.
