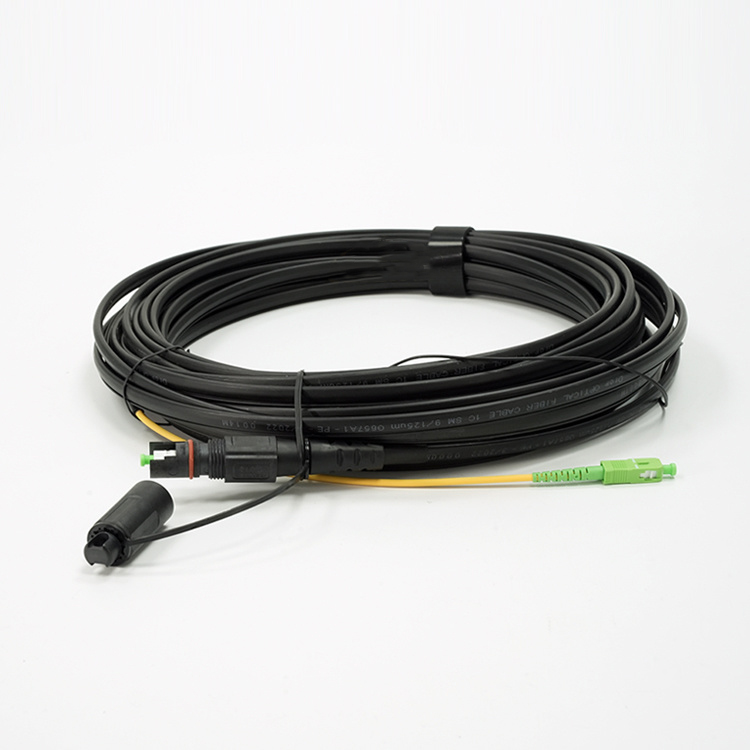

Opti-Tap to SC/APC Connector Jumper with SST Toneable Cable
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description
1F, Singlemode OS2, Opti-Tap Connector to SC/APC Connector, Gill-filled, SST Toneable Cable
Product Description

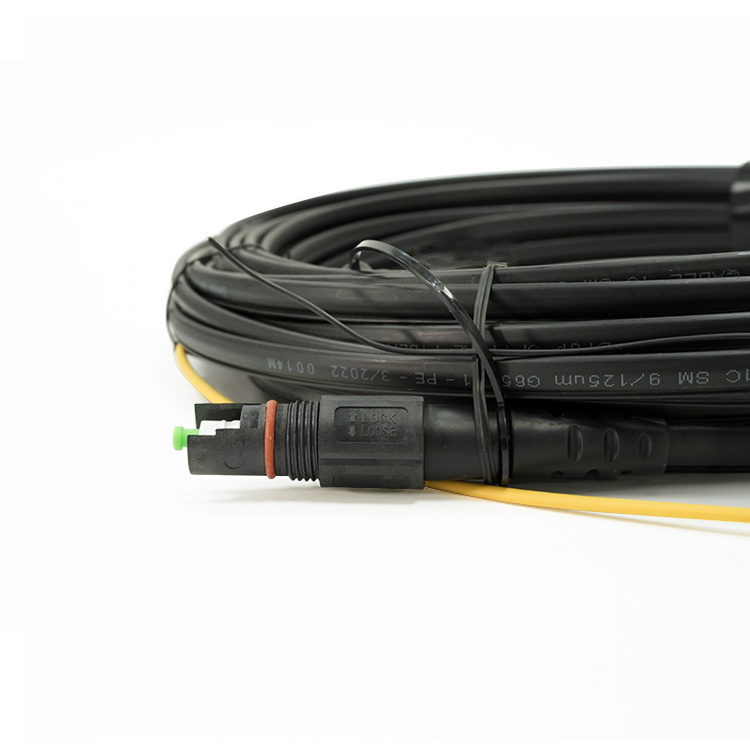

The Optitap drop cable assembly from ZTO Cable features factory-terminated, environmentally sealed, and ruggedized connectors, reducing deployment costs and time in optical access networks. It offers a robust connection solution for FTTH. Inside, a pre-polished SC/APC connector is protected by the ruggedized housing. This connector resists temperature extremes, weather, UV rays, and water, making it suitable for harsh environments. Compatible with Optitap adapters, it provides low optical insertion loss. It can be used with SST, ROC Flat, or traditional round OSP cables, ideal for direct burial, conduit, or aerial installations.
Features
- Compatible with Corning-OptiTap and H-Connector;
- Factory terminated for high performance;
- Available with one or both ends connectorized;

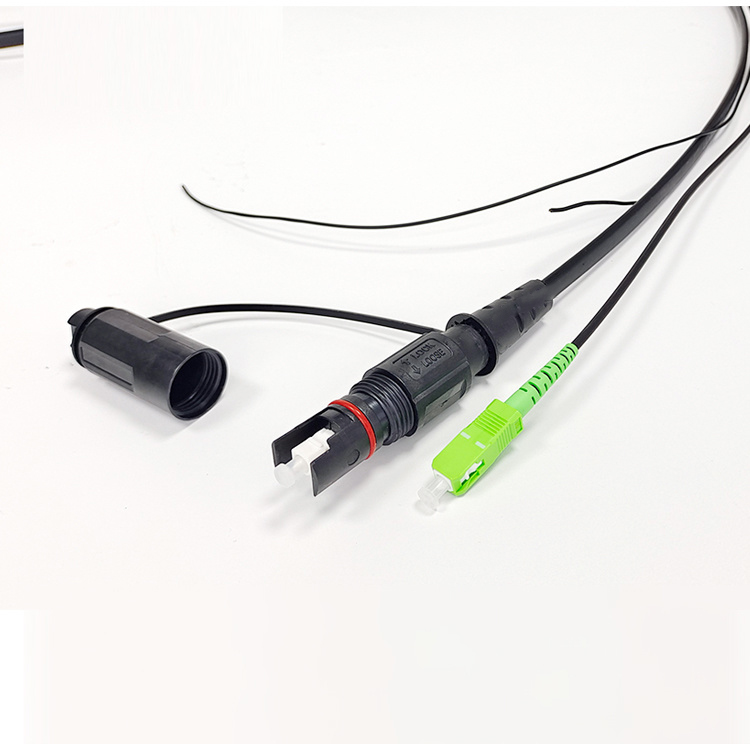

- Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip;
- Available in dielectric or toneable;
- Designed for aerial, direct-buried or duct installation;
- IP-68 water and dust protection ;
- -40℃~85℃ operating temperature;
Specification
| Product name | OptiTap to SC/APC Fiber Optical Patch Cable |
|---|---|
| Cable Type | dielectric or Toneable |

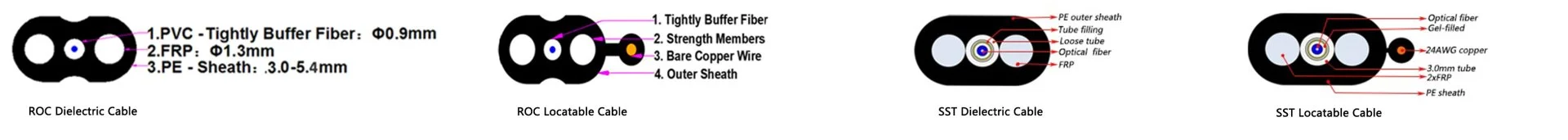

| Cable diameter | 4.5*9.8mm SST Toneable cable or 4.5*8.1mm SST-Dielectric cable |
| Application | Aerial , Direct Buried , Duct |
| Termination | Both end |
| Specifications – Connector A | |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | SC/APC OptiTap connector(H Connector) |
| Specifications – Connector B | |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | Standard SC/APC connector with 3.0mm leg |
| Optical Characteristics | |
| Fiber Type | Single-mode |
| Fiber count | 1F |
| Fiber Category | G.657A1 |
| Wavelengths | 1310 nm / 1550 nm |
| Maximum Attenuation | 0.35 dB/km / 0.25 dB/km |
Application
- FTTH;
- Outdoor Areas;
- Harsh Environment.
