Locatable/Toneable ROC Drop Cable
Product Description

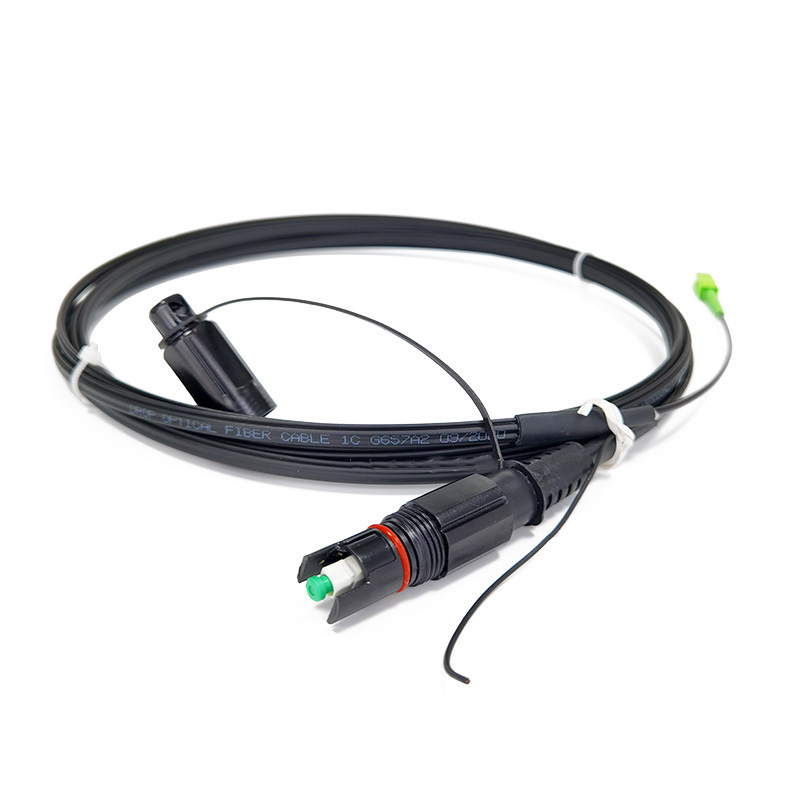

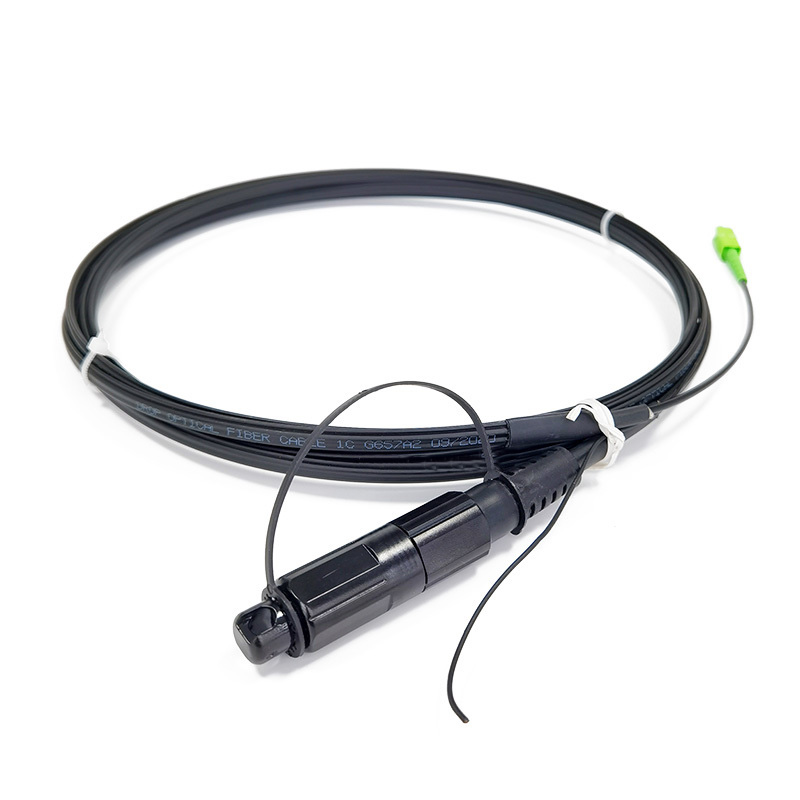

ZTO Cable ROC Drop Cable Assembly features factory-terminated, environmentally sealed, and hardened connectors, significantly reducing both the cost and time of drop cable deployment in optical access networks.
The OptiTap hardened connectors deliver superior durability and reliability in the drop segment. This assembly also improves cable management: the ROC drop cable design virtually eliminates issues with slack storage capacity. With a minimum bend radius half that of legacy drop cables and outer dimensions reduced by over 50%, ROC drop cables are more compact and flexible, making routing at the ONT easier.
The new design also reduces truck storage space requirements, providing a highly efficient solution for modern optical access networks.
Features
- Compatible with Corning-OptiTap and H-Connector;
- Factory terminated for high performance;
- Available with one or both ends connectorized;

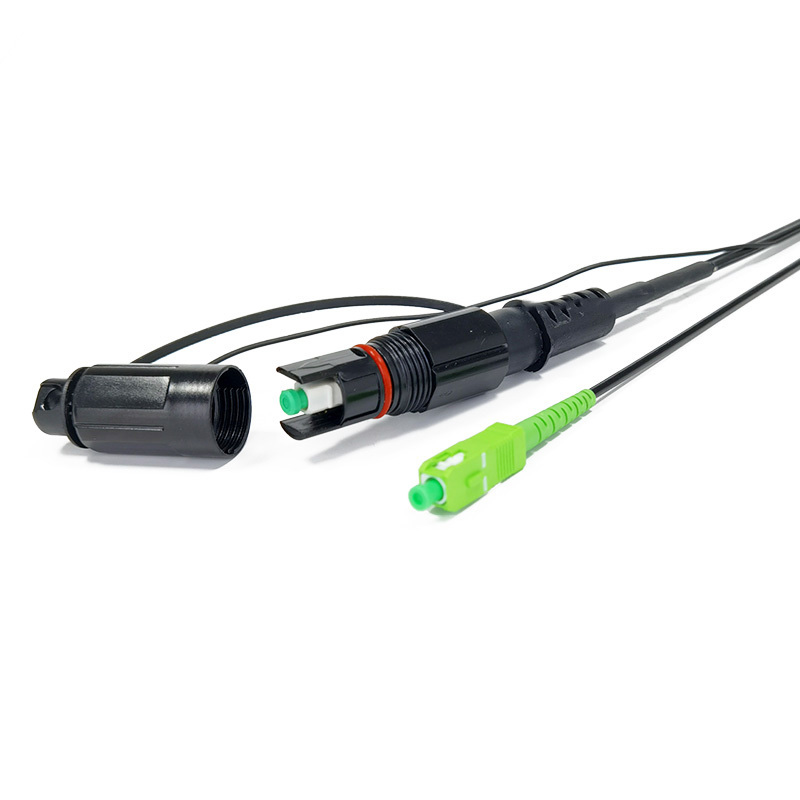

- Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip;
- Available in dielectric or toneable;
- Designed for aerial, direct-buried or duct installation;
- Reduced optimized cable cross-section ;
- -40℃~85℃ operating temperature;
Specification
| Product name | ROC drop cable assembly |
|---|---|
| Cable Type | dielectric or Toneable |
| Cable diameter | 3.0mm*6.6mm tonable ROC cable |
| Application | Aerial , Direct Buried , Duct |
| Termination | Both end or one end |
| Specifications – Connector A | |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | SC/APC OptiTap connector(H Connector) |
| Specifications – Connector B | |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | SC APC Connector (simplex) with 2.0mm or 2.9mm leg |
| Optical Characteristics | |
| Fiber Type | Single-mode |
| Fiber count | 1F |
| Fiber Category | G.652.D |
| Wavelengths | 1310 nm / 1550 nm |
| Maximum Attenuation | 0.35 dB/km / 0.25 dB/km |
Application
- FTTH;
- Outdoor Areas;
- Harsh Environment.
