Pre Connectorized Opti-Tap SST Drop Cable
Opti Tap

Pre Connectorized Opti-Tap SST Drop Cable

Inquire Online

  • Check Mark Satisfaction guarantee
  • Check Mark Fast delivery
  • Check Mark Quality assurance
Category:

Description

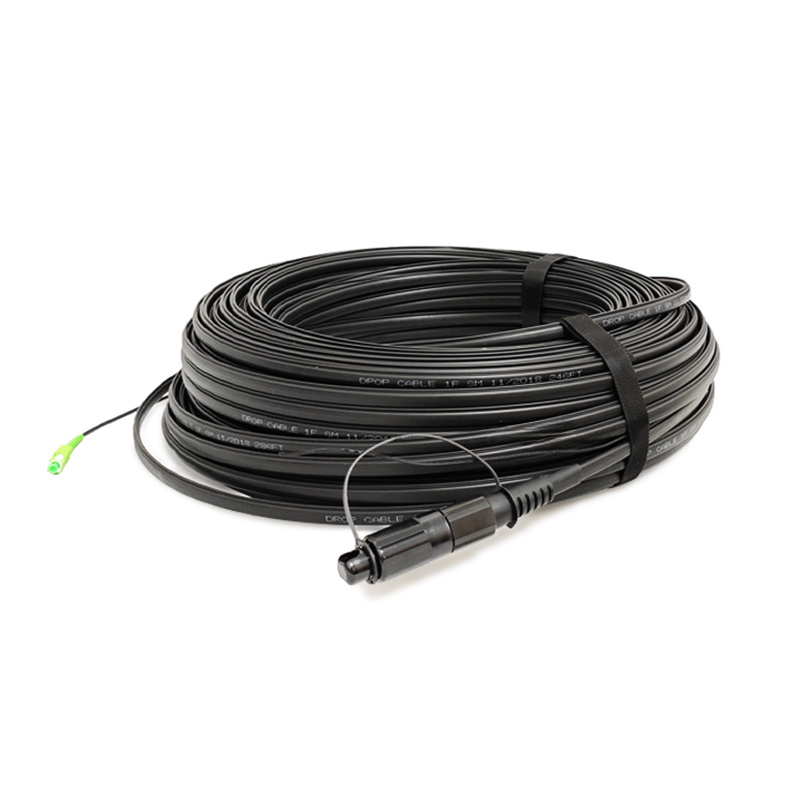

Dielectric / toneable OptiTap SST Drop Cable

Product Description

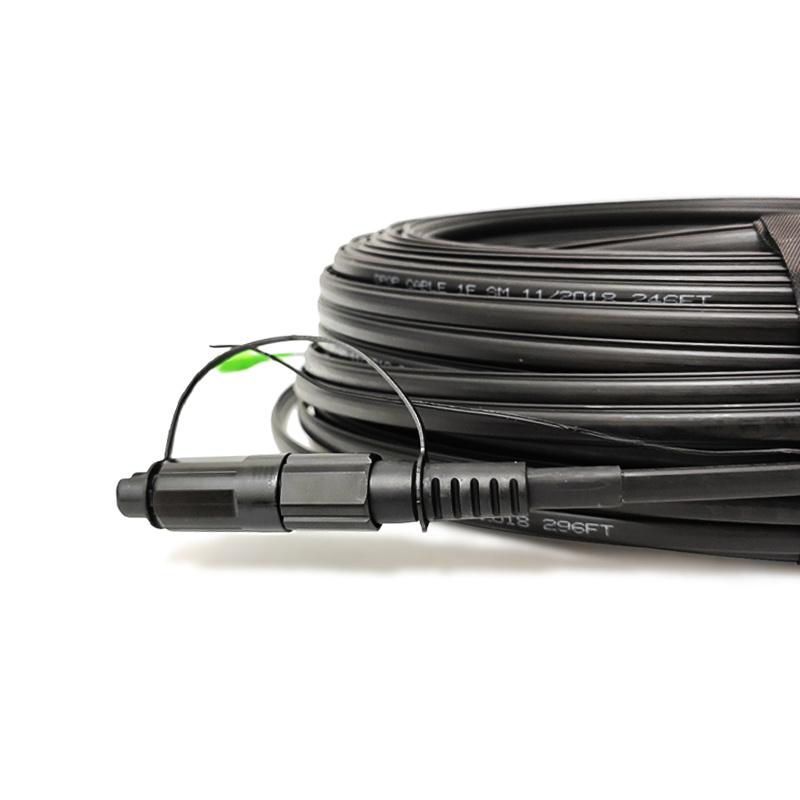

ZTO Cable OptiTap/H Connector Assemblies provide a robust and weather-sealed connection solution for Fiber-to-the-Home (FTTH) deployments. The hardened connector end integrates an SC/APC interface within a slim, sealed, and threaded polymer housing, ensuring quick and reliable connections to either a multiport service terminal or an in-line extension receptacle.

The SC/APC connector is fully compatible with standard adapters, delivering a unified interface for FTTH applications. Available with both flat drop cables and traditional round OSP cables, the hardened connector is designed to withstand harsh environments, making it an ideal choice for direct burial, conduit, or aerial installations.

Features

  • Compatible with Corning-OptiTap and H-Connector;
  • Cable length 100ft, 200ft, 300ft, 500ft, 1000ft or customized;
  • Factory terminated for high performance;
  • Available with one or both ends connectorized;

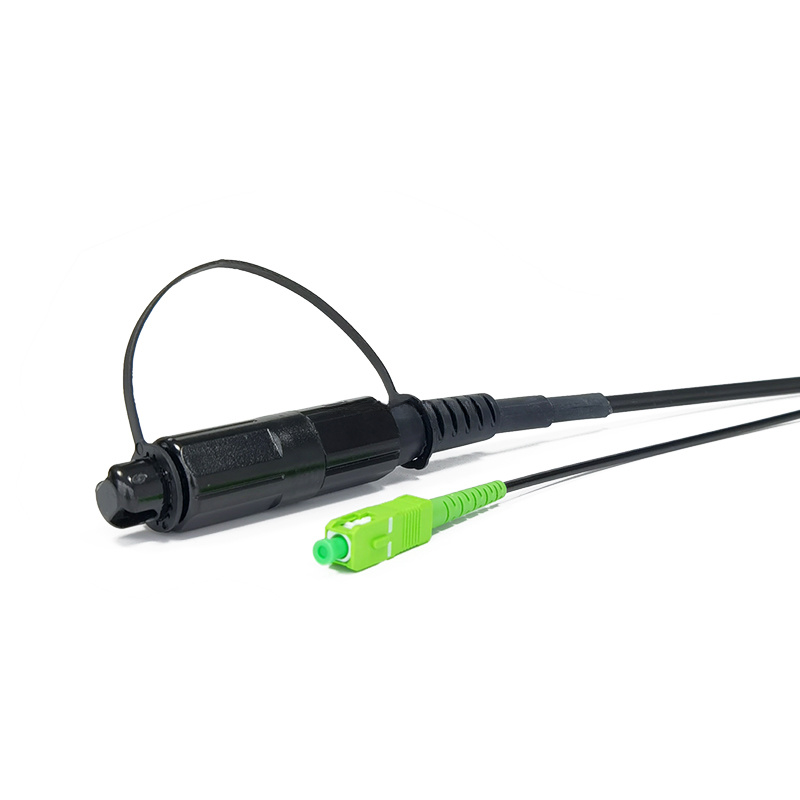

  • Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip;
  • Available in dielectric or toneable;
  • Designed for aerial, direct-buried or duct installation;
  • IP-68 water and dust protection ;
  • -40℃~85℃ operating temperature;

Specification

Product name OptiTap to OptiTap Drop Cable
Cable Type dielectric or Toneable
Cable diameter 4.5*9.8mm SST Toneable cable or 4.5*8.1mm SST-Dielectric cable
Application Aerial ,  Direct Buried ,  Duct
Termination Both end or one end
Specifications – Connector A
Reflectance, Typical -65 dB
Insertion Loss, Typical ≤ 0.15 dB
Connector Type SC/APC OptiTap connector(H Connector)
Specifications – Connector B
Reflectance, Typical -65 dB
Insertion Loss, Typical ≤ 0.15 dB
Connector Type SC/APC OptiTap connector(H Connector)
Optical Characteristics
Fiber Type Single-mode
Fiber count 1F
Fiber Category G.657A1
Wavelengths 1310 nm / 1550 nm
Maximum Attenuation 0.35 dB/km / 0.25 dB/km

Application

  • FTTH;
  • Outdoor Areas;
  • Harsh Environment.
