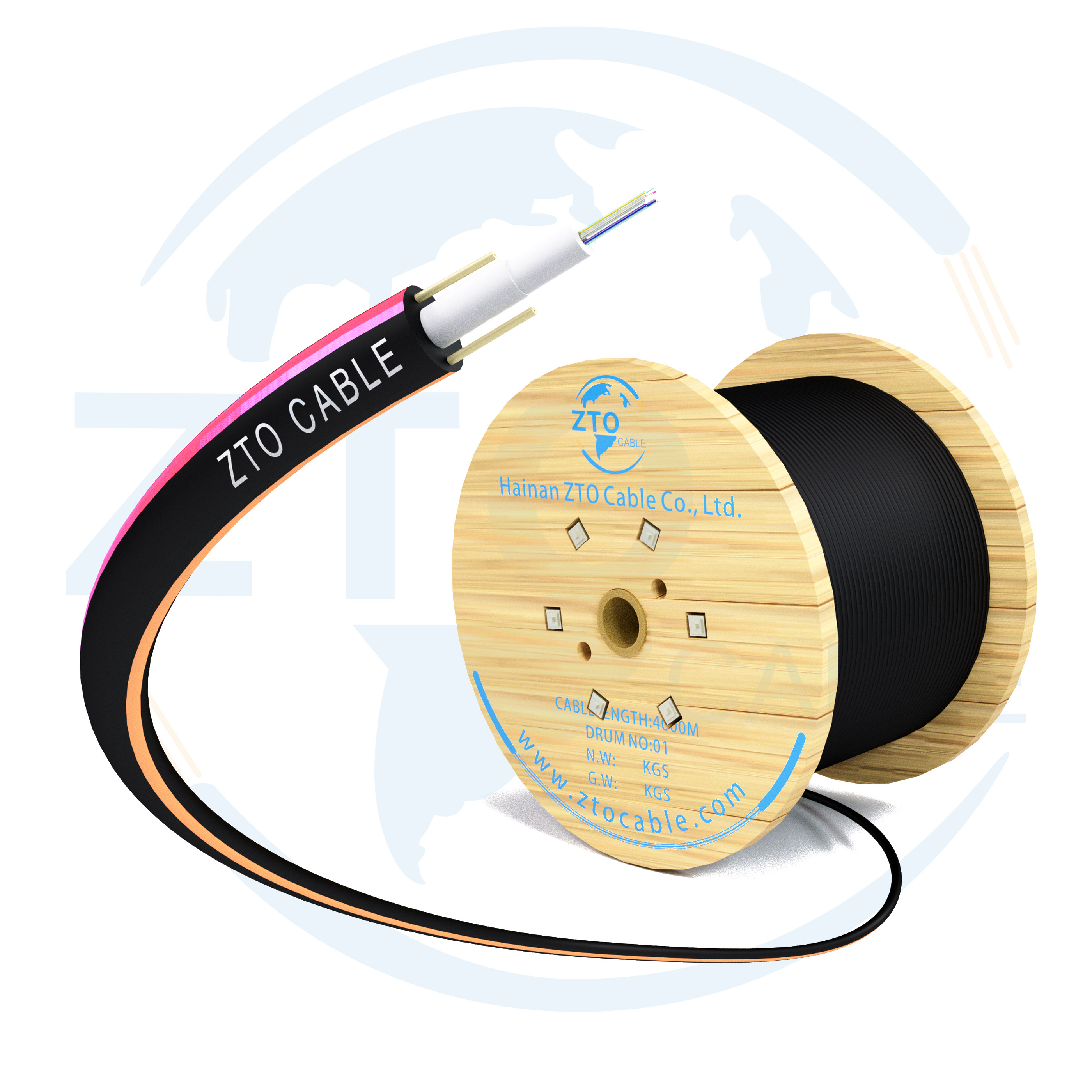

ZTO Unitube non-metallic non-armored cable GYFXY
Fiber Optic Cable

UNITUBE ADSS NON-METALLIC NON-ARMORED FIBER OPTIC CABLE GYFXTY

Inquire Online

  • Check Mark Satisfaction guarantee
  • Check Mark Fast delivery
  • Check Mark Quality assurance
Categories: , , Tags: , , , ,

Description

The Unitube Non-metallic Non-armored Fiber Optic Cable GYFXY typically contains a limited number of optical fibers, ranging from a few to several dozen, depending on the specific application and required capacity. The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath.

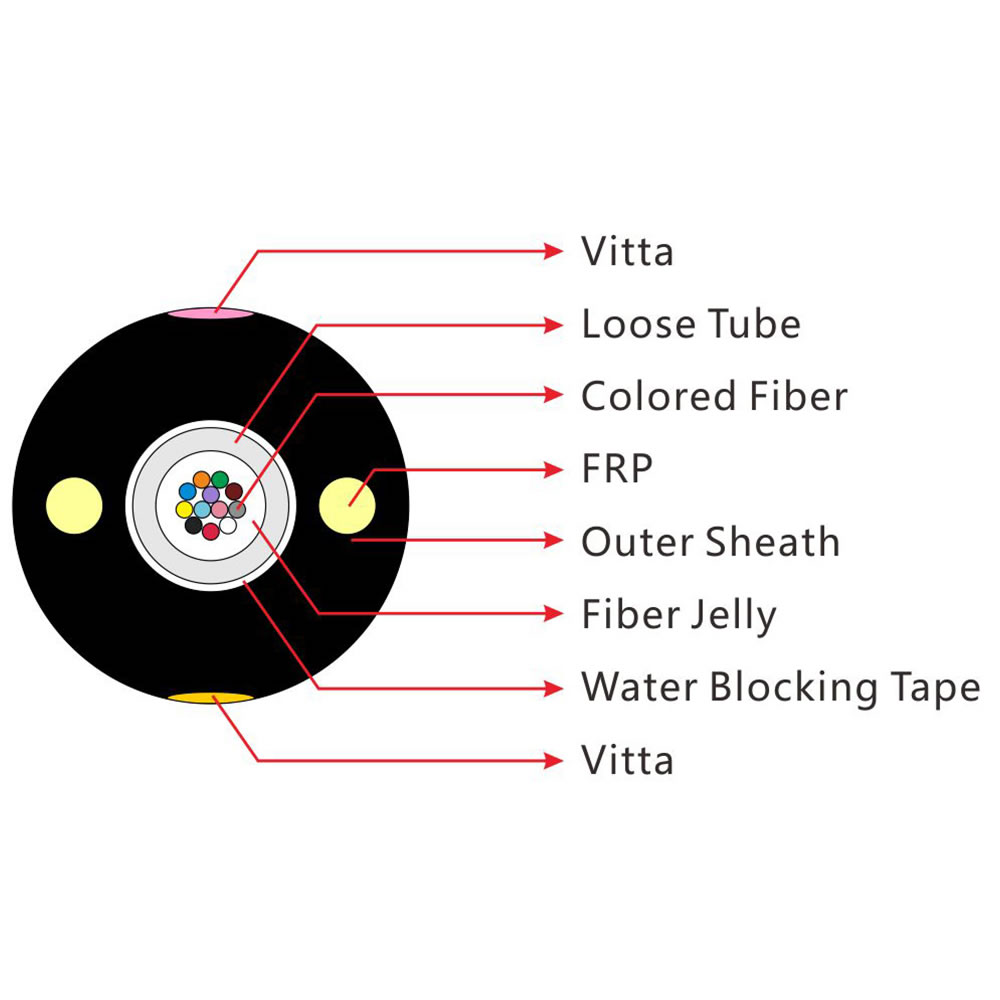

Structure

ZTO Unitube non-metallic non-armored cable GYFXY
ZTO Unitube non-metallic non-armored cable GYFXY

Characteristics

  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Two parallel FRPs ensure tensile strength
  • PE sheath protects cable from ultraviolet radiation
  • Small diameter, light weight and friendly installation
  •  Long delivery length

Application

Aerial installation, self-supporting, overhead

Standard

 Standard YD/T 1155-2001 as well as IEC 60794-1.

For specific data sheet, please write to info@ztocable.com, whatsapp+86 15802524130 Or click here!
