Double Jacket ADSS Large Span 200M to 1500M
High-performance dual-jacket ADSS cable for long-span crossings up to 1500 meters — rivers, valleys, highways, and high-voltage corridors. Double-layer HDPE with water-blocking technology, 2-288 cores. Custom-engineered with span-by-span sag-tension calculations for your project.
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description
Product Overview

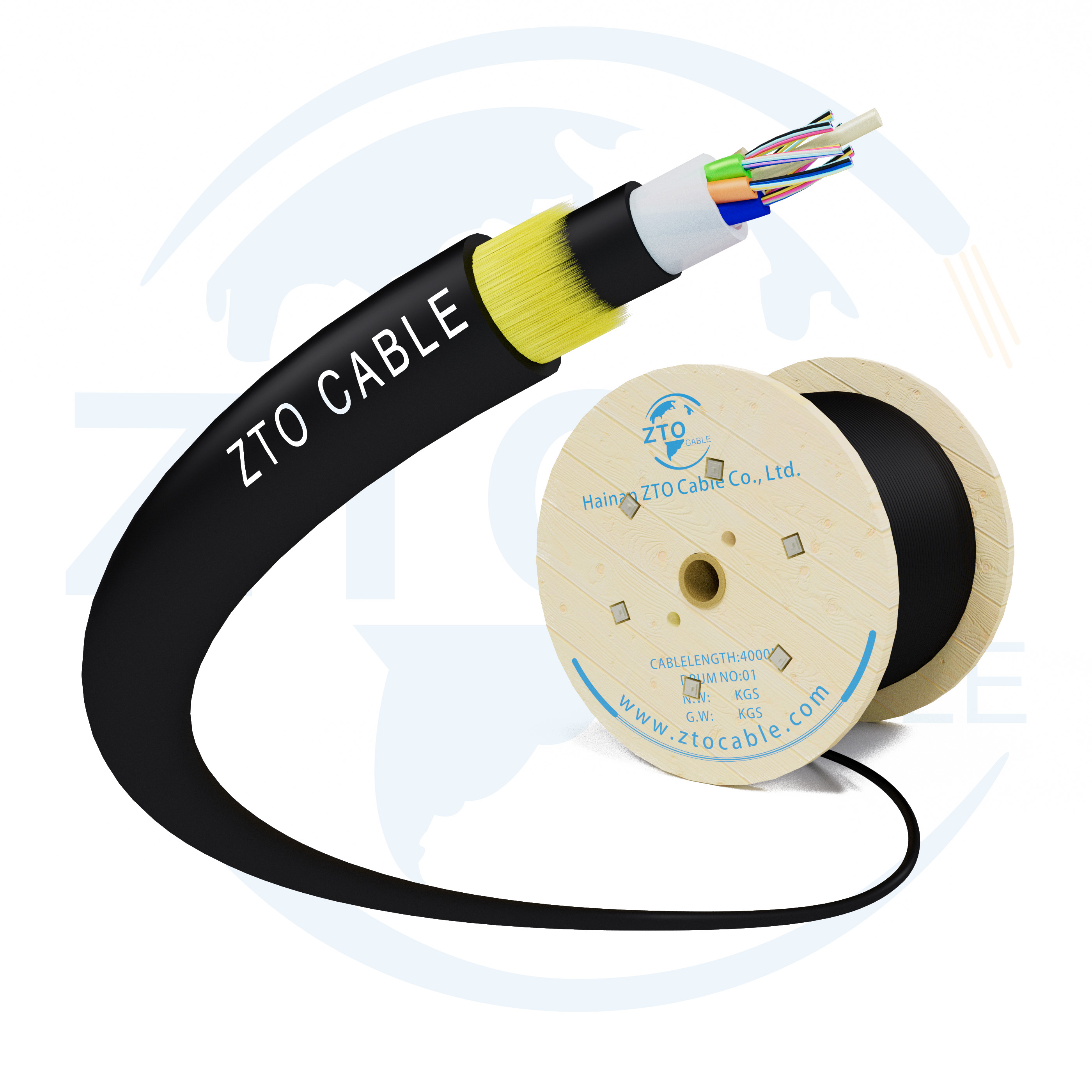

The Double Jacket ADSS Cable (200M–1500M Span) is a high-performance all-dielectric self-supporting fiber optic cable designed for the most demanding long-span aerial crossings — rivers, valleys, highways, and high-voltage transmission corridors. The dual-layer HDPE sheath with water-swellable tape between layers ensures reliable operation in extreme environments where single jacket designs fall short.
Every cable is custom-engineered to your specific span and loading requirements. ZTO provides span-by-span sag-tension calculations, MAT verification, and hardware compatibility charts — not just a product, but a complete engineering solution. CORNING fiber, 100% OTDR tested, with full IEC 60794 test reports.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Fiber Count | 2–288 cores (G.652D standard; G.655 NZ-DSF available) |
| Span Range | 200M to 1500M (custom for >1500M) |
| Jacket Construction | Double-layer HDPE with water-swellable tape between layers |
| Strength Member | High-modulus aramid yarn (Twaron/Kevlar options) |
| MAT (Max Allowable Tension) | Engineered per span (typically 10–25% RTS) |
| Crush Resistance | ≥2200 N/100mm (long-term), ≥4400 N/100mm (short-term) |
| Attenuation | ≤0.36 dB/km @1310nm, ≤0.22 dB/km @1550nm |
| Temperature Range | -50°C to +80°C |
| Compliance | IEC 60794-4-20, IEEE 1222, ITU-T G.652/G.655 |
Applications
- Extra-High-Voltage Transmission Lines (≥110kV): OPGW replacement or co-location on existing transmission towers with full dielectric safety.
- Long-Span Crossings: River, valley, and highway crossings up to 1500M — eliminating the need for intermediate support structures.
- Inter-City Backbone Networks: High-capacity fiber backbones leveraging existing power infrastructure corridors.
- Heavy Ice & Typhoon Zones: Custom icing load and wind load design for extreme weather deployments. Contact ZTO engineering for site-specific calculations.
Engineering Support & Deliverables
Every ZTO Double Jacket ADSS order includes:
- Span-by-Span Sag-Tension Calculations: Optimized for your exact pole spacing, elevation profiles, and local climate conditions.
- MAT Verification: Maximum Allowable Tension confirmed against your installation parameters to prevent over-tensioning.
- Hardware Compatibility Charts: Recommended tension clamps, suspension clamps, and vibration dampers matched to your cable specifications.
- Full IEC 60794 Test Reports: Mechanical, environmental, and optical test results for your specific production batch.
Ordering Information
MOQ: 10KM per order
Lead Time: 20–30 days (varies by fiber count, span requirements, and custom engineering)
Custom Options: Span engineering, icing load design, fiber type selection, jacket color/marking, packaging specifications.
