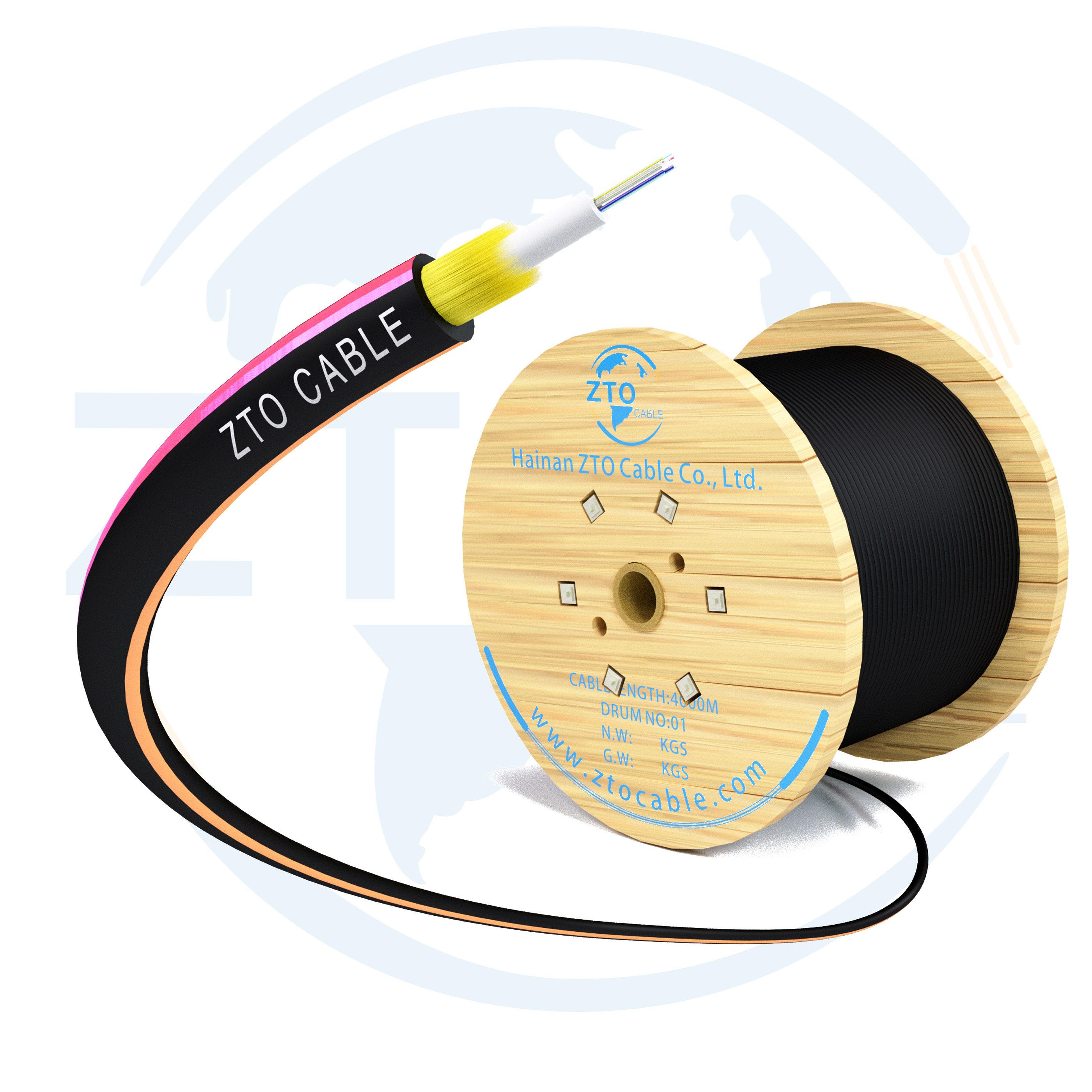

Indoor Outdoor Unitube Non Metal Micro Fiber Optic Cable JET Mini ADSS
Ultra-compact all-dielectric micro ADSS cable for space-constrained FTTx drop and building entry applications. LSZH jacket, G.657A2 bend-insensitive fiber, 1-12 cores, just 3.0-5.0mm diameter. Perfect for indoor/outdoor transitions where standard ADSS is too bulky.
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description
Product Overview
The Micro ADSS Cable (JET Mini) combines compact all-dielectric self-supporting design with micro-cable dimensions for space-constrained aerial deployments. At just 3.0–5.0mm diameter, it is ideal for FTTx drop, building entry, and indoor/outdoor transition applications where standard ADSS cables are too bulky for the routing space available.
Featuring G.657A2 bend-insensitive fiber and an LSZH (Low Smoke Zero Halogen) jacket, the JET Mini ADSS delivers reliable performance across both indoor and outdoor environments — eliminating the need to switch cable types at the building entry point.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Fiber Count | 1–12 cores (G.657A2 bend-insensitive standard) |
| Outer Diameter | 3.0–5.0mm (dependent on fiber count) |
| Cable Weight | ≤25 kg/km |
| Max Span (Self-Supporting) | 50M |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Strength Member | Aramid yarn + FRP central strength member |
| Bend Radius | 15× cable diameter (static) / 30× (dynamic) |
| Operating Temperature | -30°C to +60°C |
| Compliance | IEC 60794-2, IEC 60794-1-21, EN 50575 (CPR) |
Applications
- FTTH Drop (Aerial): Last-span connection from the distribution pole to the subscriber premises in fiber-to-the-home networks.
- Building Entry: Indoor/outdoor transition where an external aerial cable enters the building and continues routing indoors without splicing.
- MDU (Multi-Dwelling Unit): In-building riser distribution in apartment and office buildings where space is tight.
- Small Cell Backhaul: Compact fiber connectivity for 5G small cell sites on street furniture and utility poles.
Why ZTO Micro ADSS
- True Indoor/Outdoor: Single cable solution reduces splice points and installation time at building entry.
- Bend-Insensitive Fiber: G.657A2 fiber handles tight bends around corners and through conduits without signal degradation.
- LSZH Safety: Low Smoke Zero Halogen jacket meets fire safety requirements for building interiors (CPR compliant).
- 100% OTDR Tested: Every reel individually tested with full traceability documentation.
Frequently Asked Questions
What is a micro ADSS cable?
A micro ADSS cable is an ultra-compact all-dielectric self-supporting fiber cable with 3.0–5.0mm outer diameter, designed for space-constrained FTTx drop, building entry, and indoor/outdoor transition applications where standard ADSS cables are too bulky to route.
Can JET Mini ADSS be used both indoors and outdoors?
Yes. The LSZH jacket is rated for both indoor and outdoor environments, making it ideal for transition points between outdoor aerial and indoor routing — no need to switch cable types at the building entry, reducing splice points and installation time.
What bend radius does the micro ADSS support?
Static bend radius is 15× cable diameter and dynamic bend radius is 30× cable diameter, thanks to G.657A2 bend-insensitive fiber. This allows tight routing around corners, through conduits, and in crowded cable trays without signal loss.
How far can JET Mini ADSS span without a messenger wire?
Up to 50M self-supporting for standard installations. For longer spans, a messenger wire can be used to extend reach. Contact ZTO for span-specific engineering recommendations.
What fire safety standards does it meet?
Compliant with EN 50575 (CPR — Construction Products Regulation) for fire safety in building applications. The LSZH jacket minimizes smoke and toxic halogen emissions in the event of fire.
Ordering Information
MOQ: 5KM per order
Lead Time: 10–18 days
Custom Options: Fiber count, jacket color, cable marking, and packaging available on request.
