Kevlar Reinforced Fiber Optic Cable — G.657A2 0.9mm Aramid Yarn 200N Tensile for UAV Drone Tethering
Kevlar (aramid) reinforced fiber optic cable — G.657A2 single-mode, 6 strands of 200D aramid yarn, 0.9 mm tight buffer, >200 N tensile. Designed for UAV/drone tethering, FTTH drop, industrial indoor wiring.
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description

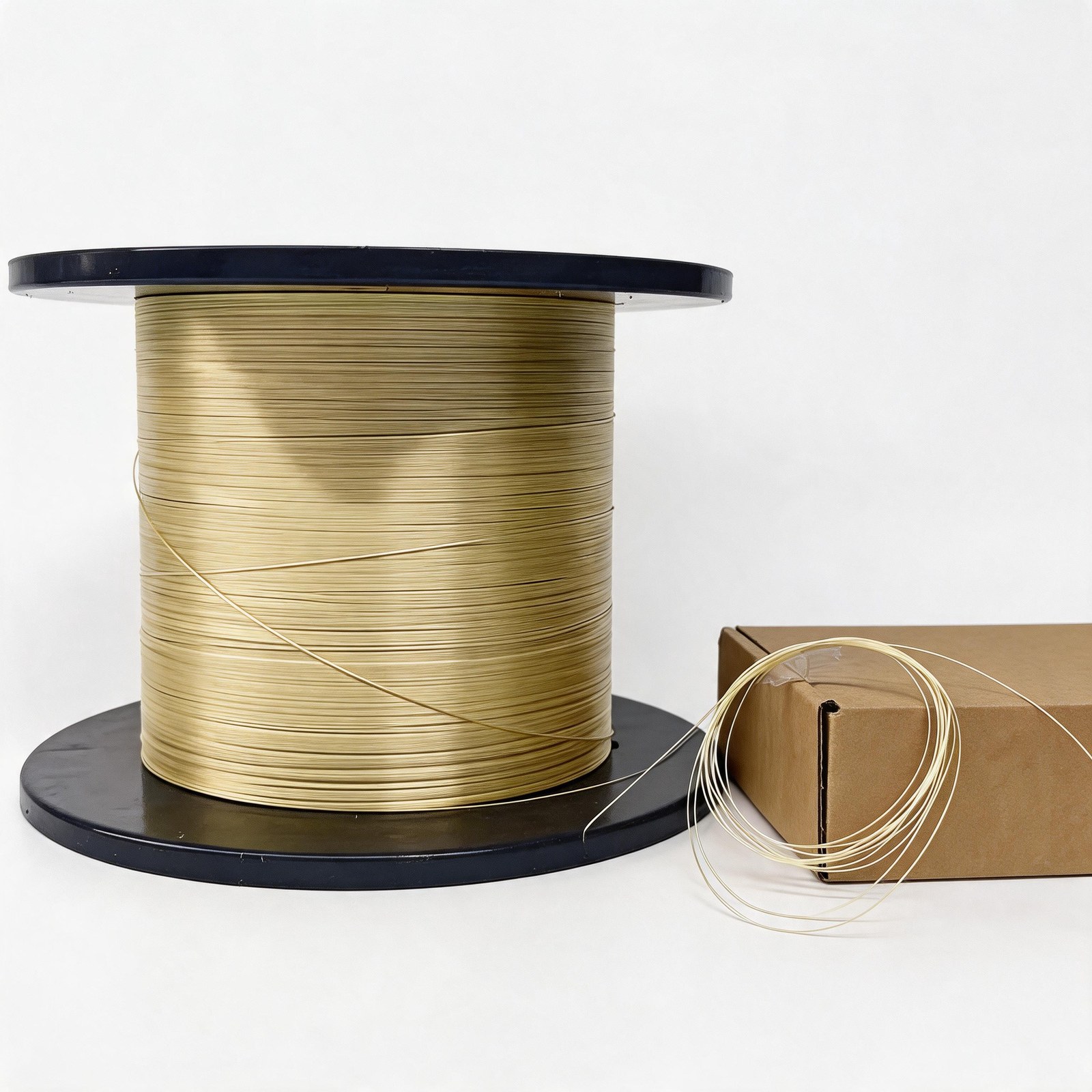

Kevlar Reinforced Fiber Optic Cable

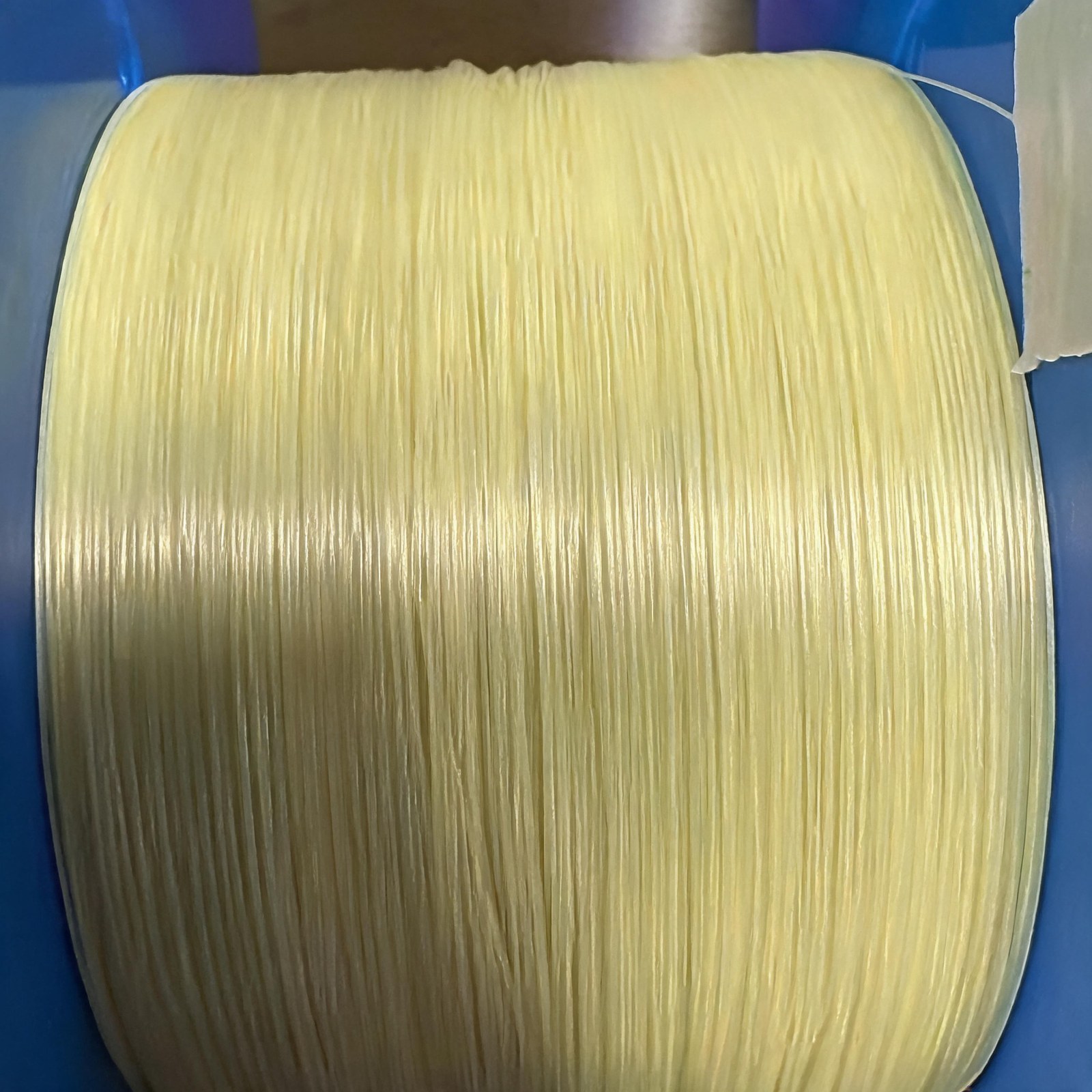

The Kevlar Reinforced Fiber Optic Cable is a high-tensile-strength indoor optical cable designed for UAV (drone) tethering, FTTH drop wiring, and industrial indoor deployments. It features a G.657A2 bend-insensitive single-mode fiber (1 fiber) protected by 6 strands of 200D imported aramid (Kevlar) yarn and a 0.9 mm tight-buffer jacket, delivering >200 N long-term tensile load while staying lightweight (≈6.5 kg/km) and compact.
Engineered for applications where the cable must withstand repeated pulling, suspension, or drone-flight tension without compromising optical performance — ZTO Kevlar reinforced cable is the go-to choice for fiber-tethered drones, mobile signal transmission, mining and tunnel wiring, and FTTH in-home runs.
Key Features
- Kevlar (Aramid) Yarn Reinforcement: 6 strands × 200D imported aramid yarn provide >200 N long-term tensile strength and 660 N short-term — ideal for UAV tethering and suspended installations.
- Bend-Insensitive G.657A2 Fiber: Single-mode fiber compliant with ITU-T G.657A2, with minimum bend radius of 15 mm (long-term) — survives tight routing without signal loss.
- 0.9 mm Tight-Buffer Jacket: Compact 0.9 mm outer diameter with tight-buffer construction protects the bare fiber and simplifies connector termination (SC/APC, LC/UPC).
- Ultra-Lightweight Design: Approximately 6.5 kg/km cable weight — minimises drone payload and enables long flight duration on tethered platforms.
- Wide Temperature Range: Operating temperature -40 °C to +70 °C; storage -40 °C to +80 °C — suitable for outdoor UAV missions and harsh industrial environments.
- Low Attenuation: ≤0.4 dB/km @ 1310 nm, ≤0.3 dB/km @ 1550 nm — meets and exceeds ITU-T G.657A2 specifications for long-reach fiber runs.
Applications
- UAV / Drone Fiber Tethering: Continuous fiber-optic link between ground station and airborne drone for unlimited-flight surveillance, comms relay, and persistent ISR missions.
- FTTH Drop Cable: Indoor drop wiring from ONT to wall outlets in MDU / SDU installations.
- Industrial Indoor Wiring: Factory floor, warehouse, and production-line fiber links where mechanical stress is high.
- Mining & Tunnel Communication: Mobile equipment signal transmission and backbone cabling in confined / high-stress environments.
- FTTA (Fiber-to-the-Antenna): Lightweight fiber runs between BBU and RRU on cell towers where cable weight matters.
- Robotics & Mobile Platforms: Tethered robots, AGVs, and remote-operated equipment requiring reliable fiber under repeated motion.

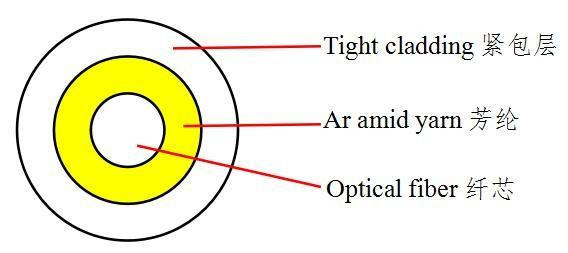

Product Structure
| Layer | Component | Specification |
|---|---|---|
| Core | Optical fiber (1 fiber) | G.657A2 single-mode, 9/125 μm, bare fiber 0.25 mm |
| Reinforcement | Aramid yarn (Kevlar) | 6 strands × 200D imported aramid yarn |
| Jacket | Tight buffer | 0.9 mm outer diameter |
Technical Specifications
Cable Construction
| Parameter | Specification |
|---|---|
| Fiber count | 1 fiber |
| Fiber type | G.657A2 single-mode, 9/125 μm |
| Bare fiber diameter | 0.25 mm |
| Reinforcement | 6 strands × 200D imported aramid yarn (Kevlar) |
| Jacket material | Tight buffer (LSZH optional) |
| Cable outer diameter | 0.9 mm ± 0.05 mm |
| Cable weight | ≈ 6.5 kg/km |
| Standard color | Yellow (other colors on request) |
Optical Characteristics
| Parameter | Value | Standard |
|---|---|---|
| Attenuation @ 1310 nm | ≤ 0.4 dB/km | ITU-T G.657A2 |
| Attenuation @ 1550 nm | ≤ 0.3 dB/km | ITU-T G.657A2 |
| Attenuation @ 1625 nm | ≤ 0.3 dB/km | ITU-T G.657A2 |
| Zero-dispersion wavelength | 1310 ± 10 nm | ITU-T G.652 |
| Mode field diameter @ 1310 nm | 8.6 ± 0.4 μm | ITU-T G.657A2 |
| Cable cutoff wavelength (λcc) | ≤ 1260 nm | ITU-T G.657A2 |
| Macrobend loss (1 turn, 15 mm radius) | ≤ 0.1 dB @ 1550 nm | ITU-T G.657A2 |
| Macrobend loss (10 turns, 15 mm radius) | ≤ 0.2 dB @ 1625 nm | ITU-T G.657A2 |
Mechanical & Environmental
| Parameter | Value | Method |
|---|---|---|
| Long-term tensile load | ≥ 200 N | IEC 60794-1-2 E1 |
| Short-term tensile load | ≥ 660 N | IEC 60794-1-2 E1 |
| Crush resistance (long-term) | 100 N/100 mm | IEC 60794-1-2 E3 |
| Crush resistance (short-term) | 500 N/100 mm | IEC 60794-1-2 E3 |
| Min. bend radius (long-term) | 15 mm (static) | IEC 60794-1-2 E11 |
| Min. bend radius (short-term) | 30 mm (dynamic) | IEC 60794-1-2 E6 |
| Operating temperature | -40 °C to +70 °C | IEC 60794-1-2 F1 |
| Storage temperature | -40 °C to +80 °C | IEC 60794-1-2 F1 |
Standards & Compliance: ITU-T G.657A2, IEC 60794-1-2, ISO/IEC 11801, RoHS compliant. Manufactured under ISO 9001 quality management system. Custom lengths, jacket materials, and connector terminations (SC/APC, LC/UPC, FC) available on request.
