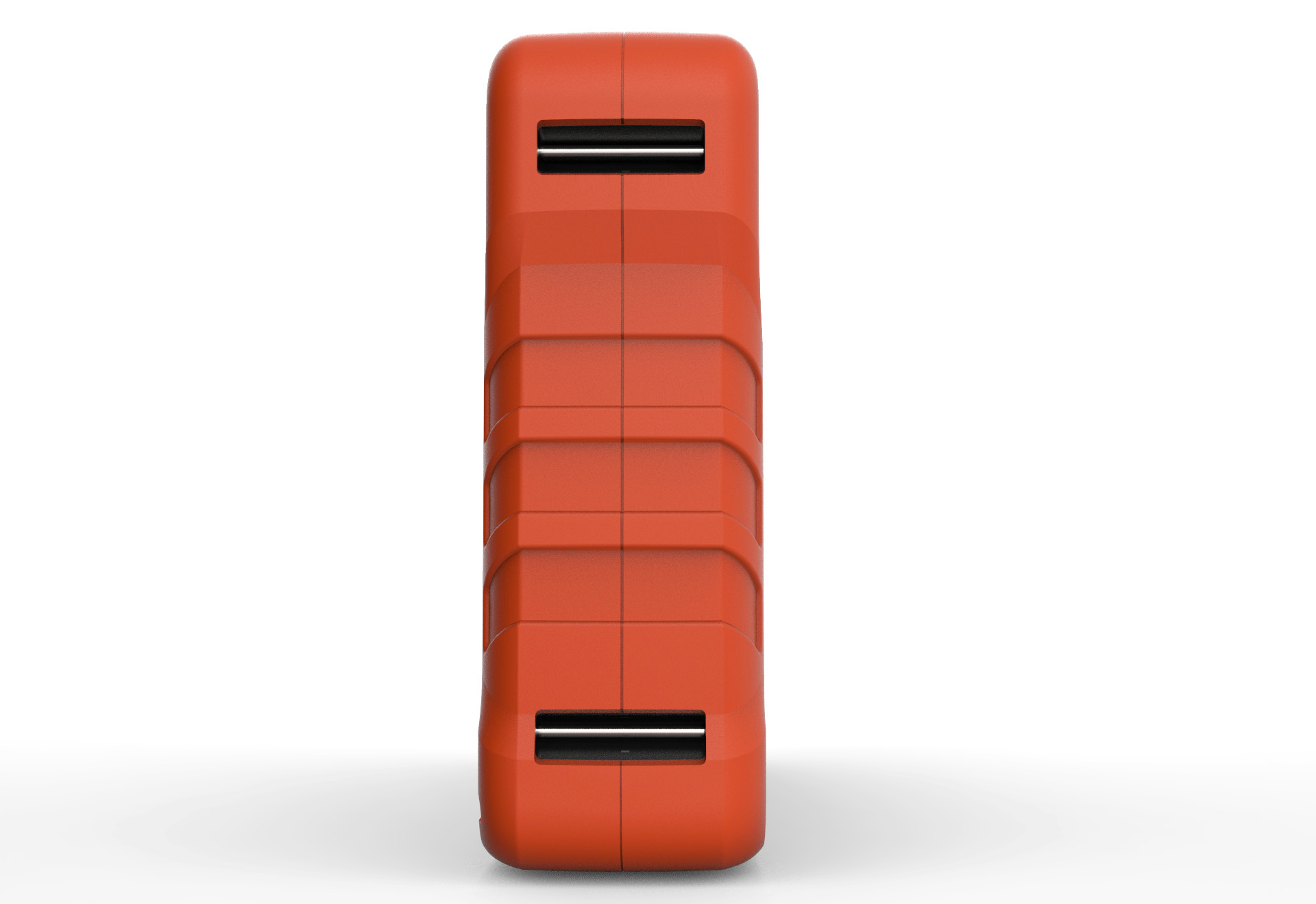

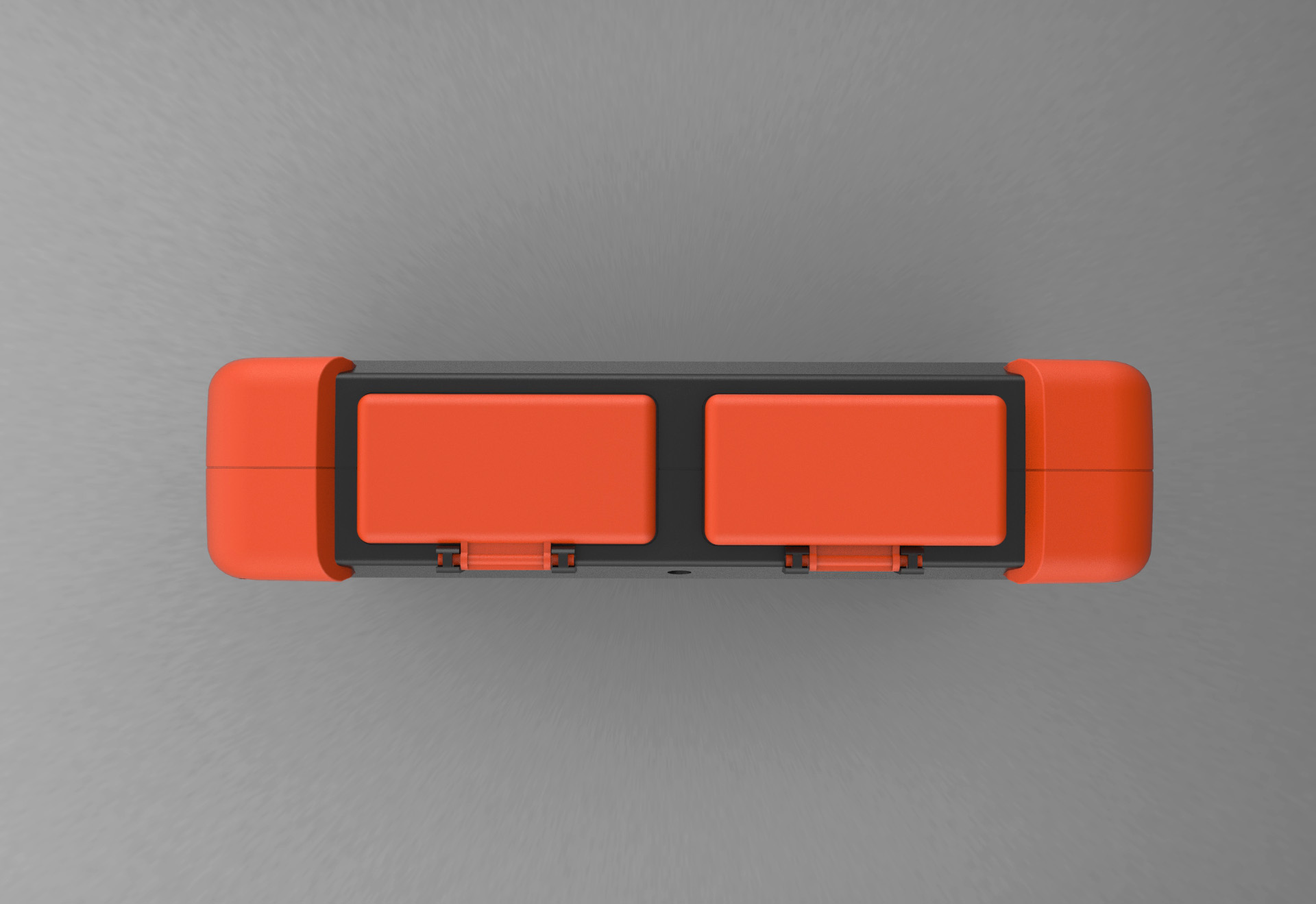

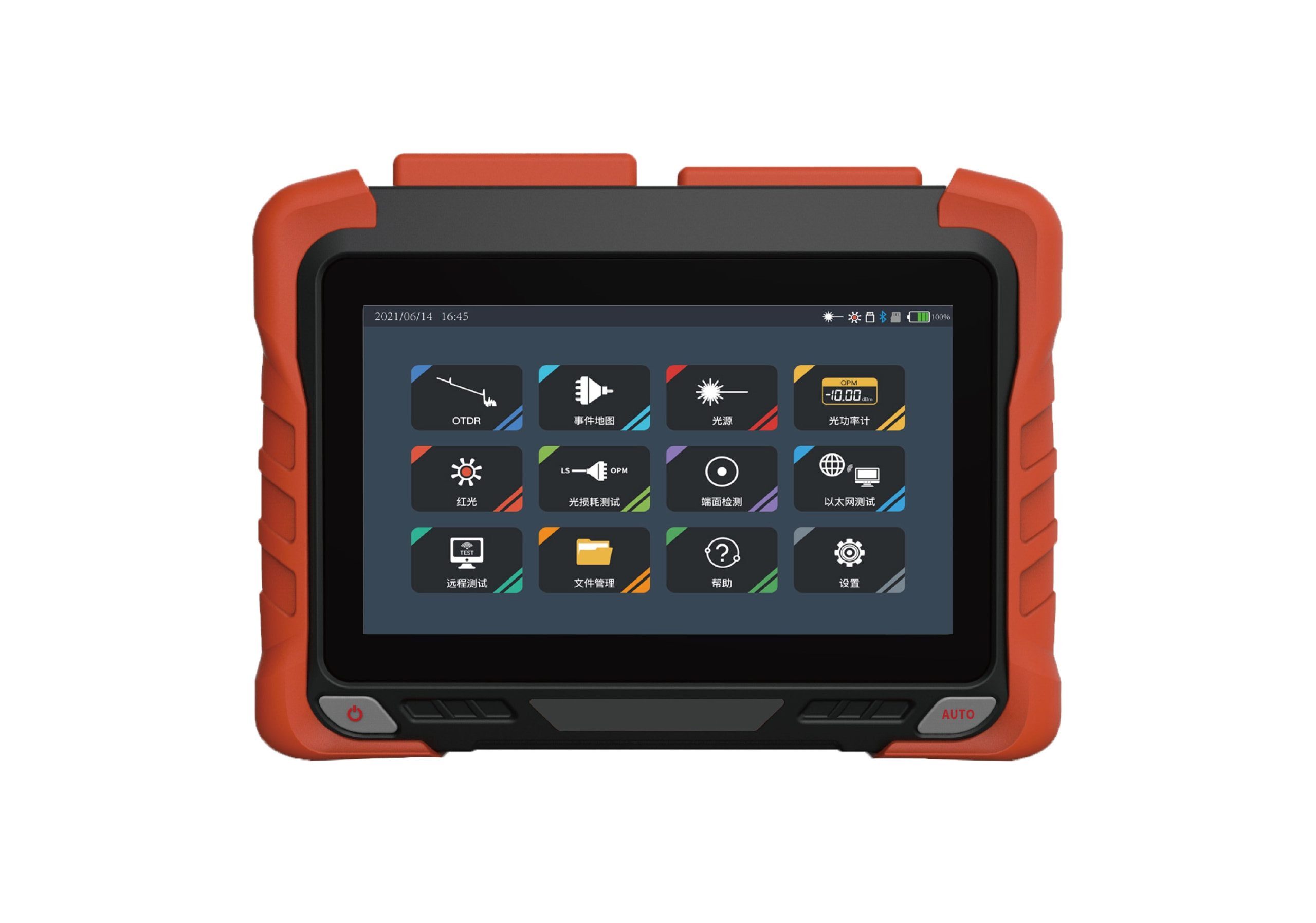

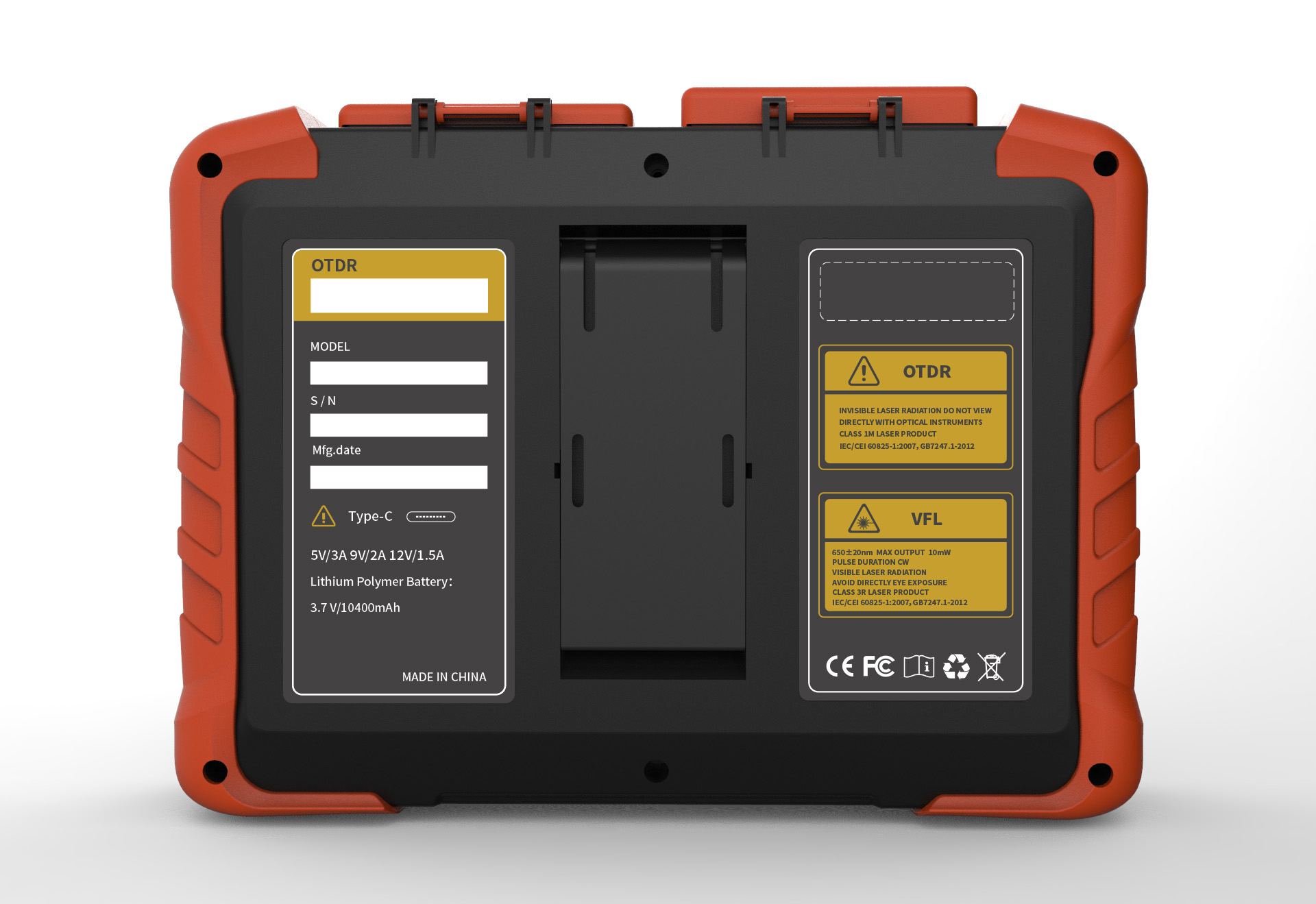

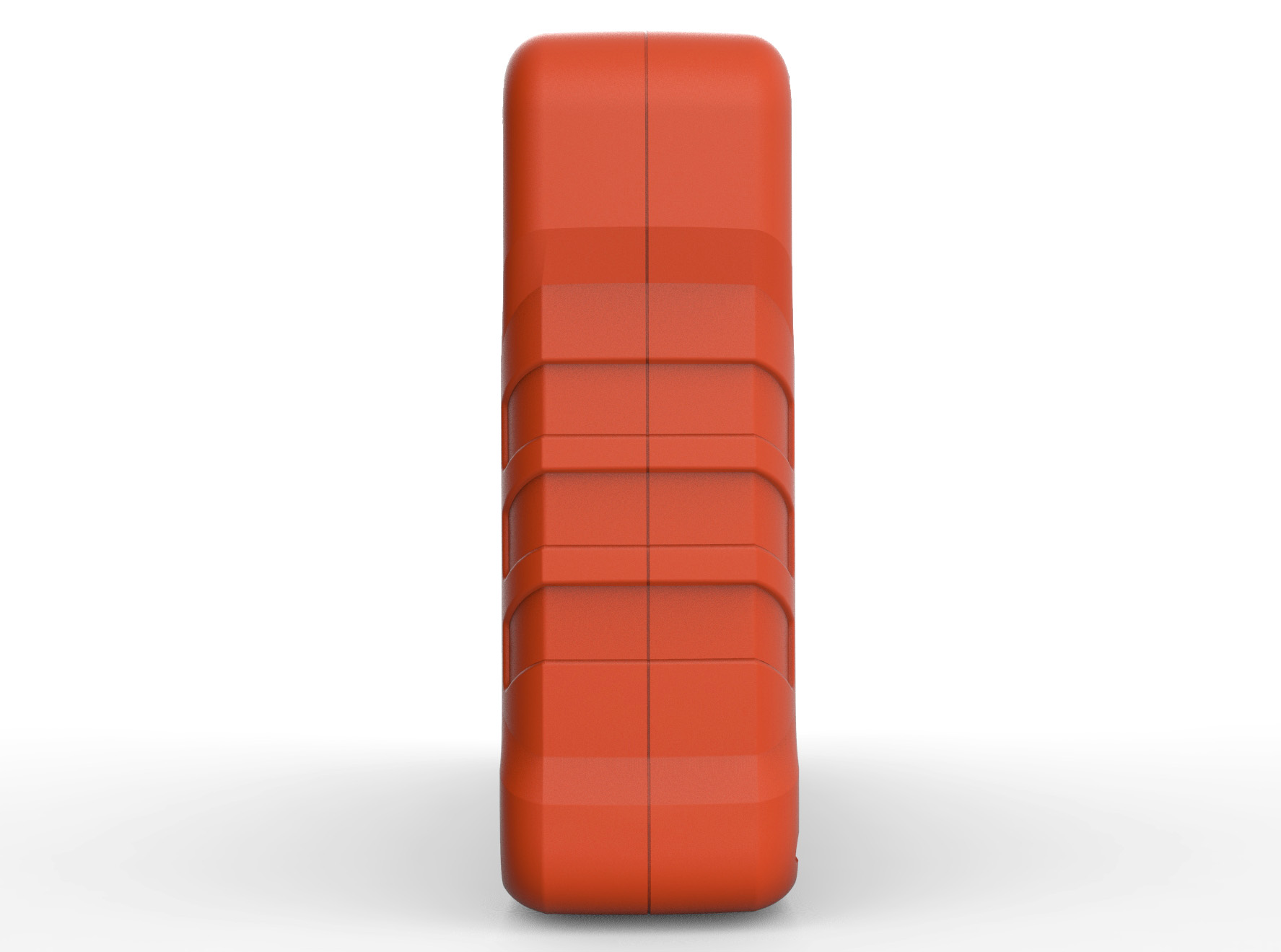

NK6200 Series Optical Time Domain Reflectometer
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description

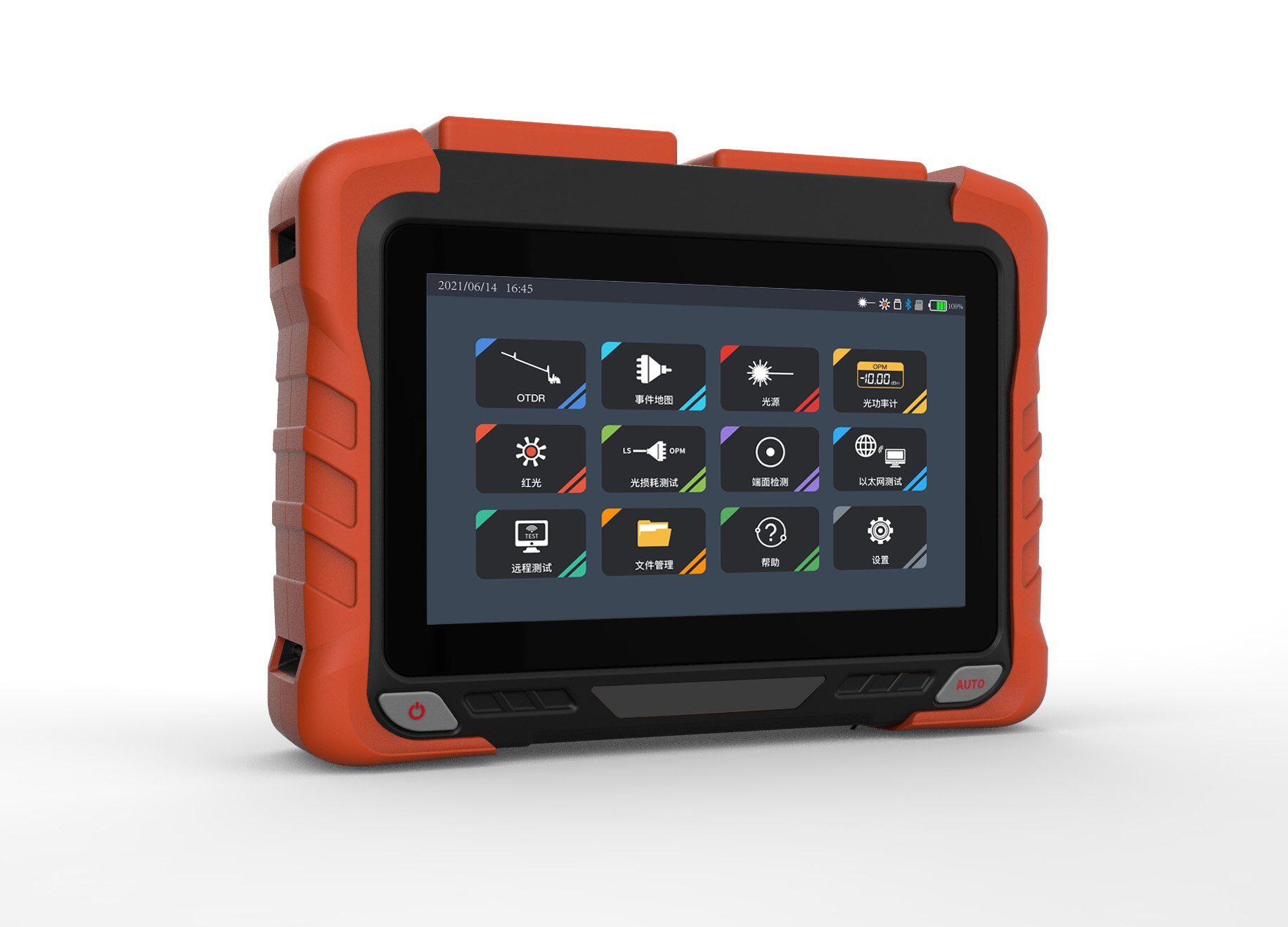

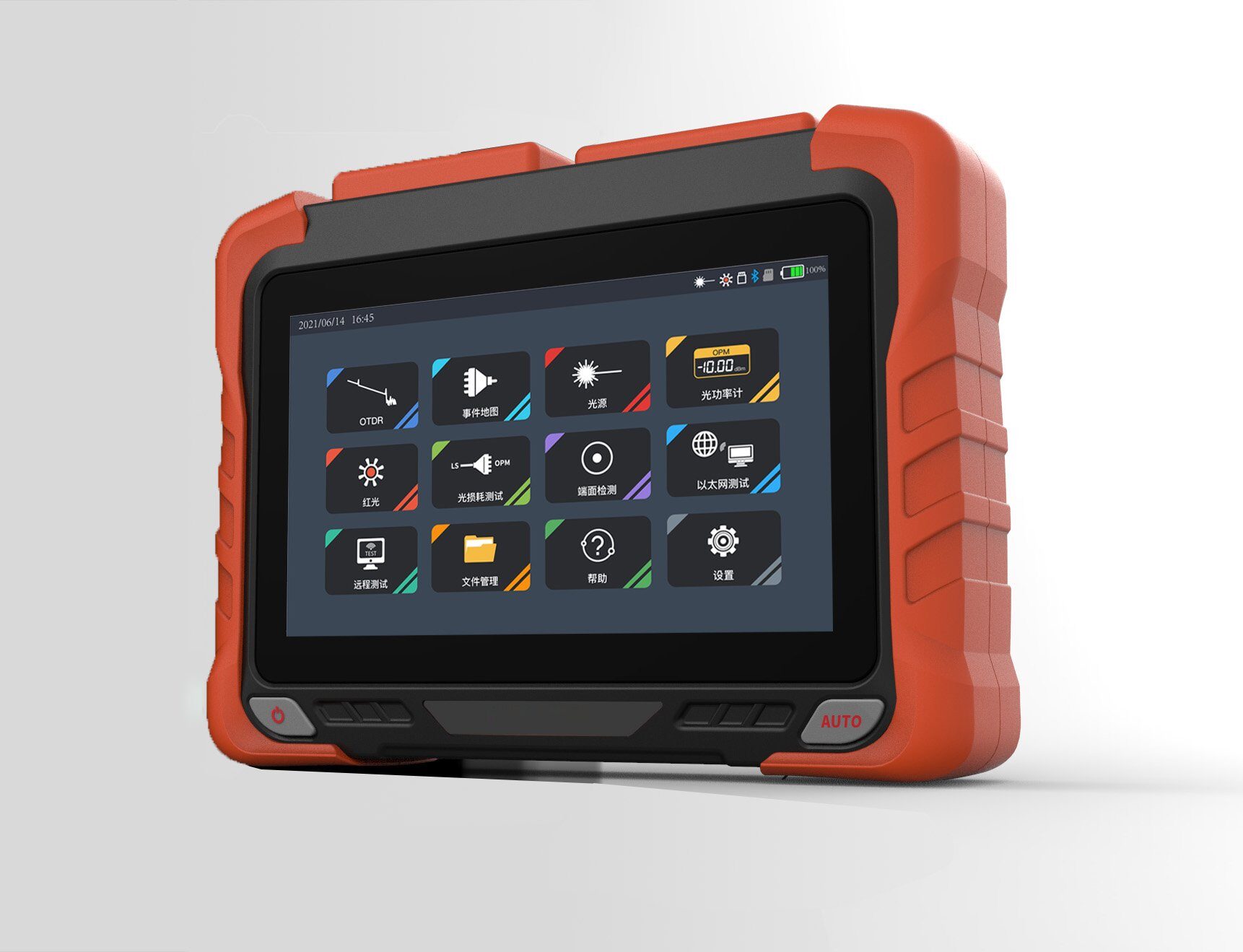

The NK6200 Series Optical Time Domain Reflectometer (OTDR) is a new-generation 7-inch capacitive touch product that integrates 9 major functional modules including OTDR, optical power meter, and visual fault locator. It features an attractive and novel design with rich peripheral support. Utilizing excellent intelligent hardware and software design, it offers higher accuracy in short fiber testing and automatic testing. It also comes equipped with comprehensive Ethernet testing functions (Ping/PPOE/Cable Tracing, etc.) to diagnose Ethernet network faults, supports wireless control via mobile app, and allows easy access to test results.
The NK6200 Series is primarily used to measure parameters such as fiber optic cable length, loss, and splice quality. It is widely applied in engineering construction, line maintenance testing, emergency repair of fiber optic communication systems, as well as in the development, production, and measurement of fiber optic cables. Its main applications include urban trunk lines, backbone networks, and metropolitan area networks.
Main Functions
- OTDR
- Event Map
- Optical Power Meter
- Visual Fault Locator
- Stable Light Source
- End-face Inspection (probe required, sold separately)
- Optical Loss Test
- Ethernet Test
- Remote Test
- File Management
Technical Specifications
OTDR Specifications
| Specification | Details |
|---|---|
| Models | S0, S1, S2, S3, S4, T1, T2, T3, T4, T5, T6, F1, M1, SM1, SM2 |
| Fiber Type | Single-mode, Multi-mode, Single/Multi-mode depending on model |
| Wavelength | Various combinations including 1310/1550 nm, 1310/1490/1550 nm, 1310/1550/1625 nm, 1310/1550/1650 nm, 1310/1490/1550/1625 nm, 850/1300 nm, 850/1300/1310/1550 nm |
| Maximum Dynamic Range | From 32/30 dB up to 45/43 dB depending on model |
| Event Dead Zone | 0.5 m to 1 m |
| Attenuation Dead Zone | 3.5 m to 6 m |
| Measurement Range | 100 m / 500 m / 1.25 km / 2.5 km / 5 km / 10 km / 20 km / 40 km / 80 km / 125 km / 260 km / 420 km |
| Pulse Width | 3 ns / 5 ns / 10 ns / 20 ns / 30 ns / 50 ns / 80 ns / 100 ns / 200 ns / 300 ns / 500 ns / 800 ns / 1 μs / 2 μs / 3 μs / 5 μs / 8 μs / 10 μs / 20 μs |
| Distance Accuracy | ±(0.75 m + sampling interval + 0.0025% × test distance) |
| Loss Resolution | 0.001 dB |
| Linearity | ±0.03 dB/dB |
| Sampling Points | ≥256k |
| Sampling Resolution | 0.015 m to 16 m |
| Reflection Accuracy | ±2 dB |
| File Format | SOR standard file format |
| Loss Measurement Mode | 4-point method |
| Laser Safety Class | Class II |
General Specifications
| Data Storage | Internal: 2 GB (≥20,000 records); Maximum external storage: 64 GB |
| Optical Connector | FC/UPC (interchangeable with SC, ST) |
| Real-time Refresh Rate | 4 Hz (typical) |
| Data Interface | USB-A, Type-C, RJ45 LAN 10M/100M bit/s |
