NK3200 Mini PRO Series Optical Time Domain Reflectometer (OTDR)

Description

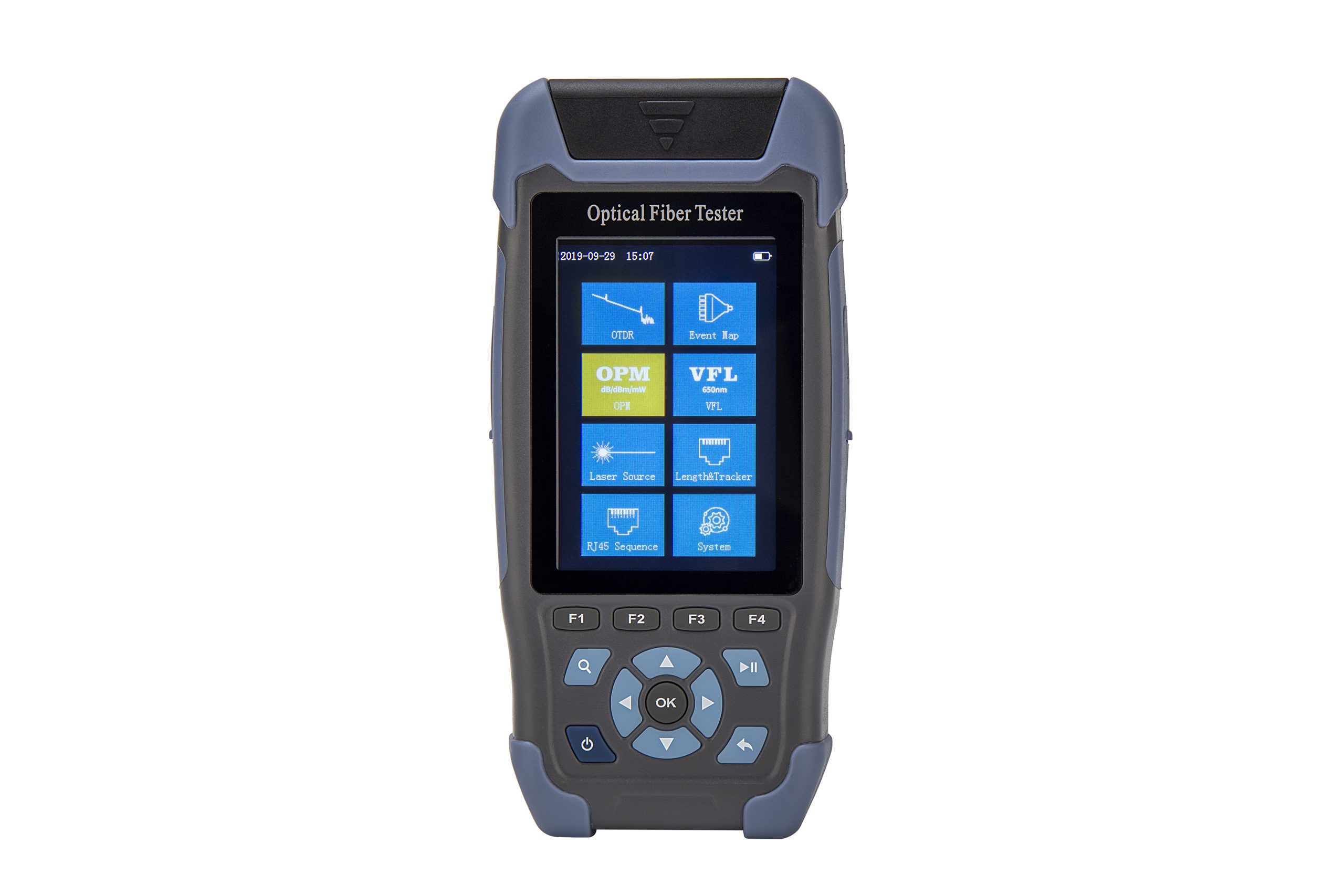

The NK3200 Mini PRO Series Optical Time Domain Reflectometer (OTDR) features a 3.5-inch color display with a simple UI interface. It integrates 8 major functions, including OTDR, stable light source, optical power meter, red light source (visual fault locator), wire sequence testing, cable length testing, cable tracing, and illumination. With optimized parameter configuration, it maximizes the simplification of testing operations. The compact body is easy to carry; equipped with intelligent power-saving management, it offers up to 12 hours of ultra-long measurement time, efficiently ensuring field testing and maintenance operations.

The NK3200 Series is primarily used to measure parameters such as length, loss, and splice quality of various optical fibers and cables. It remains usable even when there are communication optical signals in the line, with a maximum live fiber test signal power of -5 dBm. It can be widely used in engineering construction, line maintenance testing, emergency repair, as well as research, development, and production measurement of optical fiber cables in fiber optic communication systems.

Main Functions

• OTDR
• Stable Light Source
• Optical Power Meter
• Visual Fault Locator (Red Light)

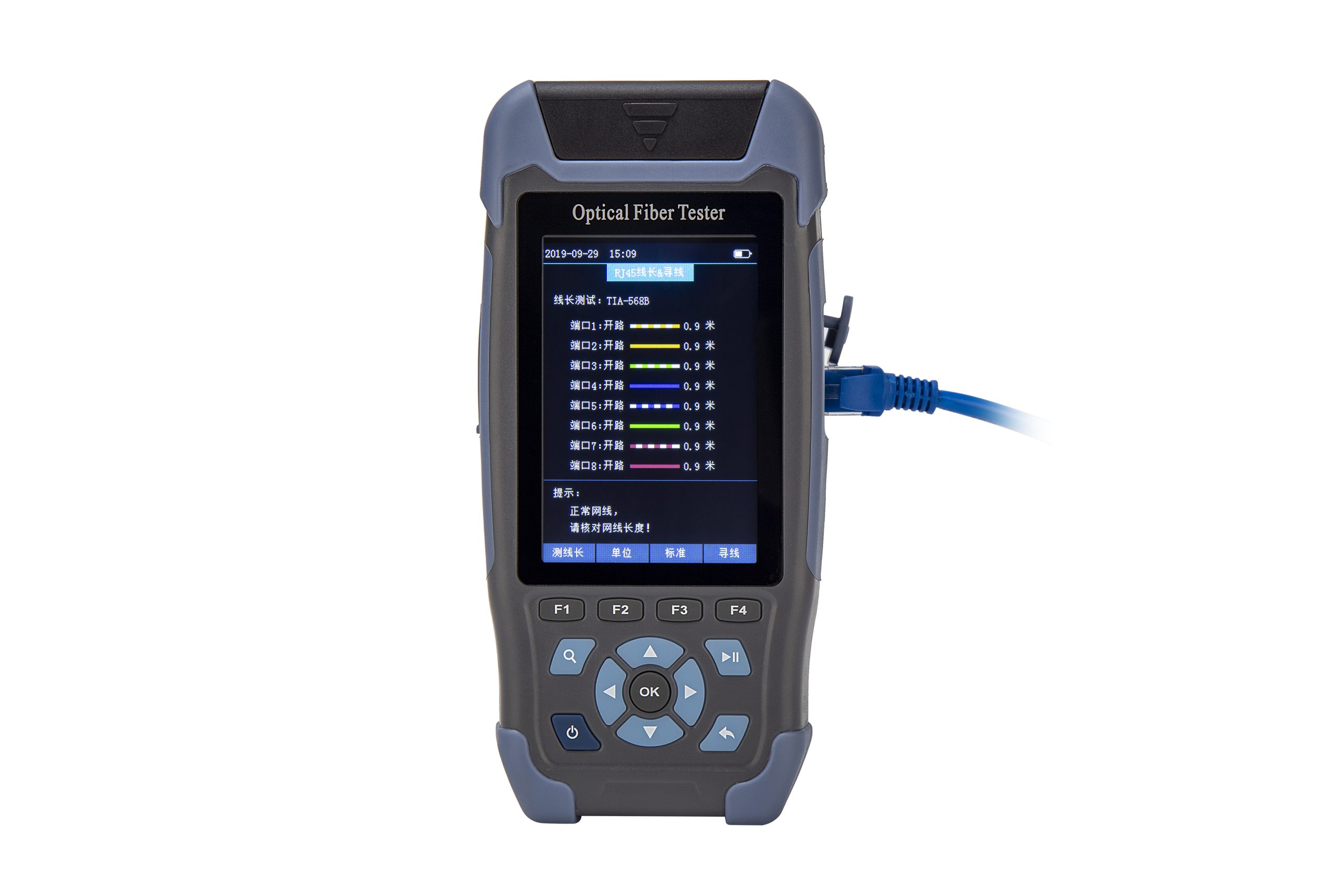

• Wire Sequence Testing
• Cable Length Testing
• Cable Tracing
• Illumination (Flashlight)

Technical Specifications

OTDR Specifications

Model	NK3200D	NK3200F1 (with live fiber testing)	NK3200F2 (with live fiber testing)
Test Wavelength	1310 nm / 1550 nm ±20 nm	1310 nm ±20 nm	1550 nm ±20 nm
Fiber Type	G.652 Single-mode Fiber
Dynamic Range	24 dB / 22 dB	24 dB	22 dB
Event Dead Zone	3 m
Attenuation Dead Zone	8 m
Measurement Range	500 m / 1 km / 2 km / 4 km / 8 km / 16 km / 32 km / 64 km
Pulse Width	3 ns / 5 ns / 10 ns / 20 ns / 30 ns / 50 ns / 80 ns / 160 ns / 320 ns / 500 ns / 800 ns / 1 µs / 2 µs / 3 µs / 5 µs / 8 µs / 10 µs
Distance Accuracy	±(1 m + sampling interval + 0.005% × test distance)
Linearity	±0.2 dB/dB
Sampling Points	16k ~ 128k
Sampling Resolution	0.05 m ~ 8 m
Loss Resolution	0.001 dB
Loss Threshold	0.2 dB
Distance Resolution	0.001 m
Refractive Index	1.00000 ~ 2.00000
Reflection Accuracy	±3 dB
File Format	SOR standard file format
Loss Measurement Mode	4-point method / 5-point method
Laser Safety Class	Class 2

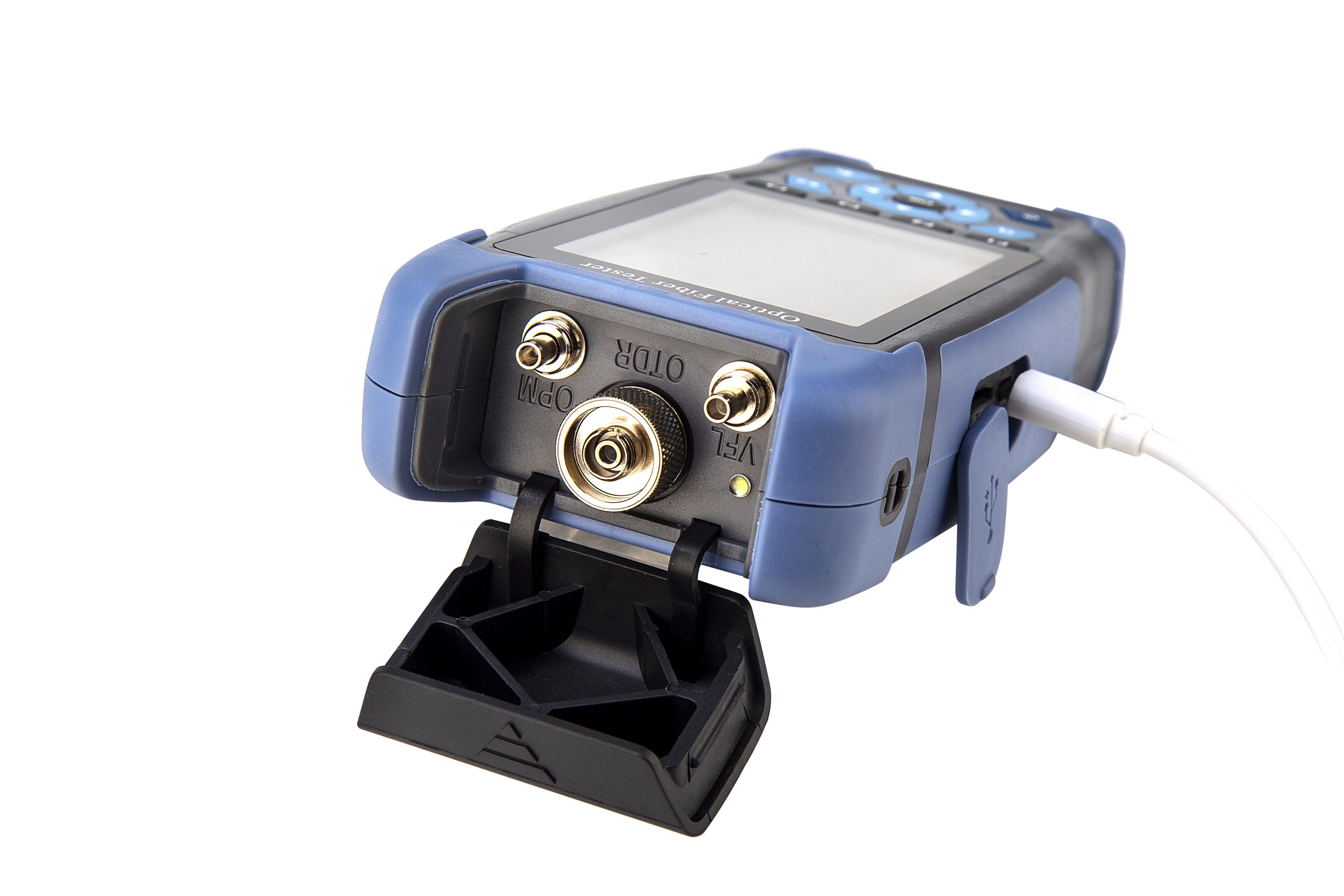

Optical Connector	FC/UPC (interchangeable with SC, ST)

Optical Power Meter

Wavelength Range	800 nm ~ 1700 nm
Calibrated Wavelengths	850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650 nm
Measurement Range	-70 to +10 dBm (optional) / -50 to +26 dBm (standard)
Resolution	0.01 dB
Uncertainty	±5%
Frequency Recognition	CW / 270 Hz / 330 Hz / 1 kHz / 2 kHz
Optical Connector	Universal FC / SC / ST

Light Source

Laser Type	FP-LD
Output Wavelength	Same as OTDR output wavelength
Output Power	≥ -5 dBm
Output Mode	CW / 270 Hz / 330 Hz / 1 kHz / 2 kHz
Stability	CW, ±0.5 dB/15 min (tested after 15 min warm-up)
Optical Connector	FC/UPC (interchangeable with SC, ST)

Visual Fault Locator (VFL)

Operating Wavelength	650 nm ±20 nm
Output Power	≥ 10 mW
Operating Mode	CW / 1 Hz / 2 Hz
Optical Connector	Universal FC / SC / ST

General Specifications

Display	3.5-inch, 320×480 color LCD
Data Interface	Micro USB
Data Storage	Internal: ≥600 records; External: supports TF card
Power Supply	AC/DC adapter: Input: 100V~240V, 50/60 Hz, 0.6 A; Output: 5 V, 2 A; Polymer lithium battery: 3.7 V, 4000 mAh
Battery Operating Time	High brightness: Standby >20 hours; Continuous testing >12 hours
Operating Temperature	-10°C ~ +50°C
Storage Temperature	-40°C ~ +70°C
Relative Humidity	0 ~ 95% non-condensing
Weight	≤350 g
Dimensions	173 mm × 82 mm × 37 mm

Standard Configuration

OTDR, Event Map, Optical Power Meter, Red Light (VFL), Stable Light Source, RJ45 Cable Tracing (requires separate digital tracer), RJ45 Wire Sequence Test, Cable Length Test, Flashlight
