GJJV-1B6A2 Invisible Optical Fiber Cable – 0.9mm Nylon Tight Buffer G657A2

Description

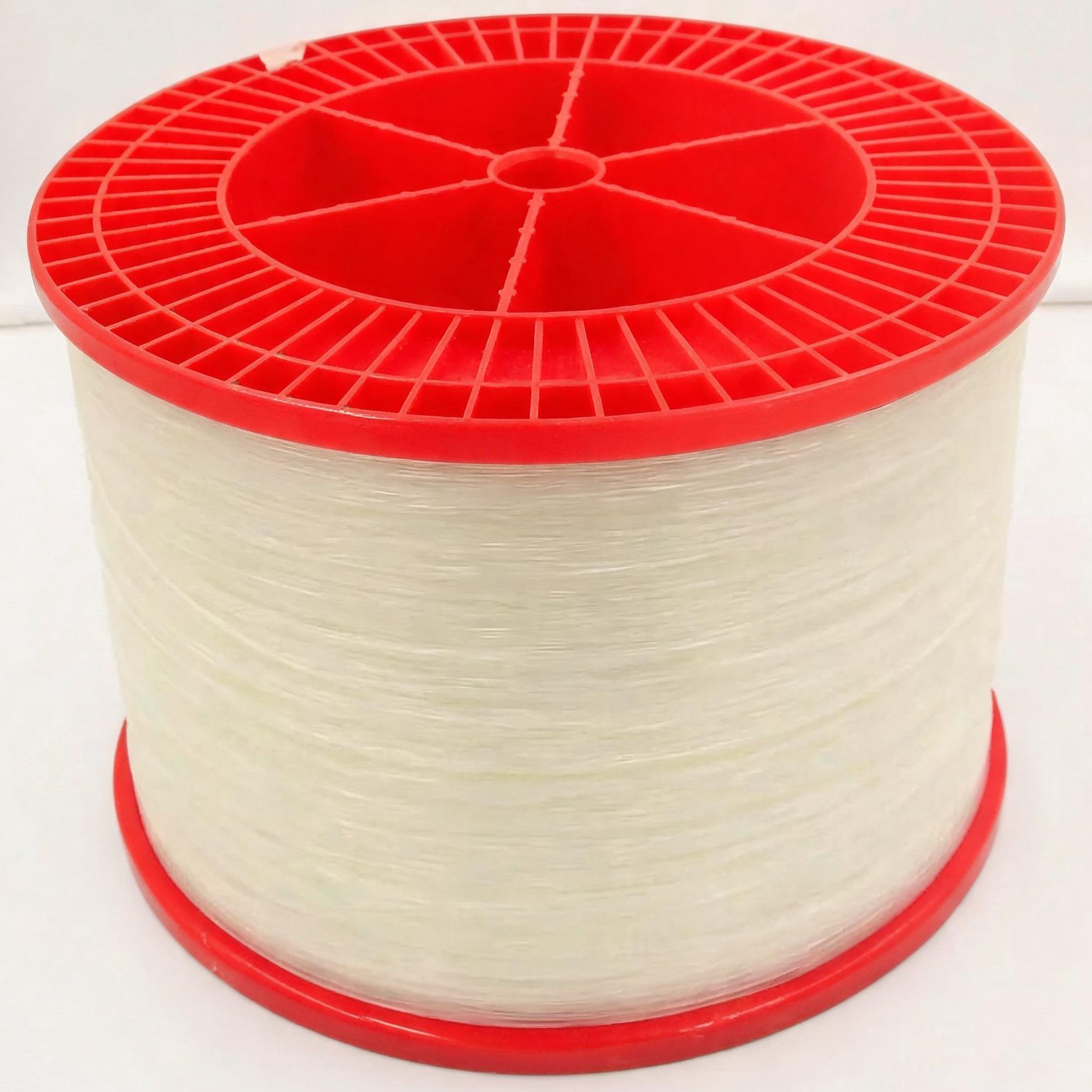

GJJV-1B6A2 Invisible Optical Fiber Cable

The GJJV-1B6A2 is an ultra-thin 0.9mm nylon tight-buffered indoor optical fiber cable designed for discreet, nearly invisible fiber deployments. Built with ITU-T G.657A2 bend-insensitive single-mode fiber, it delivers reliable optical performance even when routed around tight corners and through constrained pathways — making it the ideal choice for FTTH in-home wiring, MDU (Multi-Dwelling Unit) installations, and surface-mount applications where aesthetics matter.

Key Features

• Ultra-Thin Profile: 0.9 ± 0.1 mm outer diameter — virtually invisible when surface-mounted along walls, baseboards, or ceiling corners
• Bend-Insensitive G.657A2 Fiber: Macrobend loss ≤ 0.1 dB at 1550 nm (1 turn, 10 mm radius), enabling tight routing without signal degradation
• Durable Nylon Outer Sheath: Transparent nylon jacket protects the fiber while maintaining a discreet appearance
• Lightweight: Approximately 0.9 kg/km — easy to handle and install
• Wide Operating Range: Reliable performance from -10°C to +50°C

Applications

• FTTH in-home / in-building drop wiring
• MDU (Multi-Dwelling Unit) fiber distribution
• Surface-mount deployments along walls, baseboards, and moldings
• Office and commercial building fiber-to-the-desk
• Hotels, hospitals, and heritage buildings requiring minimal visual impact

Technical Specifications

Cable Construction

Parameter	Specification
Fiber Count	1
Fiber Type	G.657A2 (Bend-Insensitive)
Fiber Color	Natural
Outer Sheath Material	Nylon
Outer Sheath Color	Natural (Transparent)
Cable Diameter	0.9 ± 0.1 mm
Net Weight	Approx. 0.9 kg/km

Optical Characteristics (ITU-T G.657A2)

Parameter	Unit	Value
Attenuation @ 1310 nm	dB/km	≤ 0.4
Attenuation @ 1550 nm	dB/km	≤ 0.3
Zero Dispersion Wavelength	nm	1300 ~ 1324
Zero Dispersion Slope	ps/(nm²·km)	≤ 0.092
Cable Cut-off Wavelength λcc	nm	≤ 1260
MFD @ 1310 nm	μm	8.6 ± 0.4
MFD @ 1550 nm	μm	10.0 ± 0.5

Macrobend Loss @ 1550 nm

Condition	Max Loss
10 turns, 15 mm radius	≤ 0.03 dB
1 turn, 10 mm radius	≤ 0.1 dB
1 turn, 7.5 mm radius	≤ 0.5 dB

Geometrical Characteristics

Parameter	Unit	Value
Cladding Diameter	μm	125 ± 0.7
Cladding Non-Circularity	%	≤ 0.5
Coating Diameter	μm	245 ± 10
Coating/Cladding Concentricity Error	μm	≤ 12.0
Coating Non-Circularity	%	≤ 6.0
Core/Cladding Concentricity Error	μm	≤ 0.5
Screening Tension	GPa	≥ 0.69
Dynamic Fatigue Parameter	/	≥ 20
Coating Peel Force (Typical Avg)	N	1.5

Mechanical & Environmental

Parameter	Short-Term	Long-Term
Tension Performance	6 N	3 N
Crush Resistance	100 N/100 mm	—
Min Bending Radius	Static: 30 mm | Dynamic: 60 mm	—
Installation Temperature	-10°C ~ +50°C	—
Operation Temperature	-10°C ~ +50°C	—

The mechanical properties of this optical fiber cable comply with international standards IEC 60793 and IEC 60794.
