MT-MT Assembly
MT-MT passive micro optical interconnect for QSFP/QSFP28/QSFP-DD/OSFP parallel optical modules, supporting 40G–800G data rates.
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description

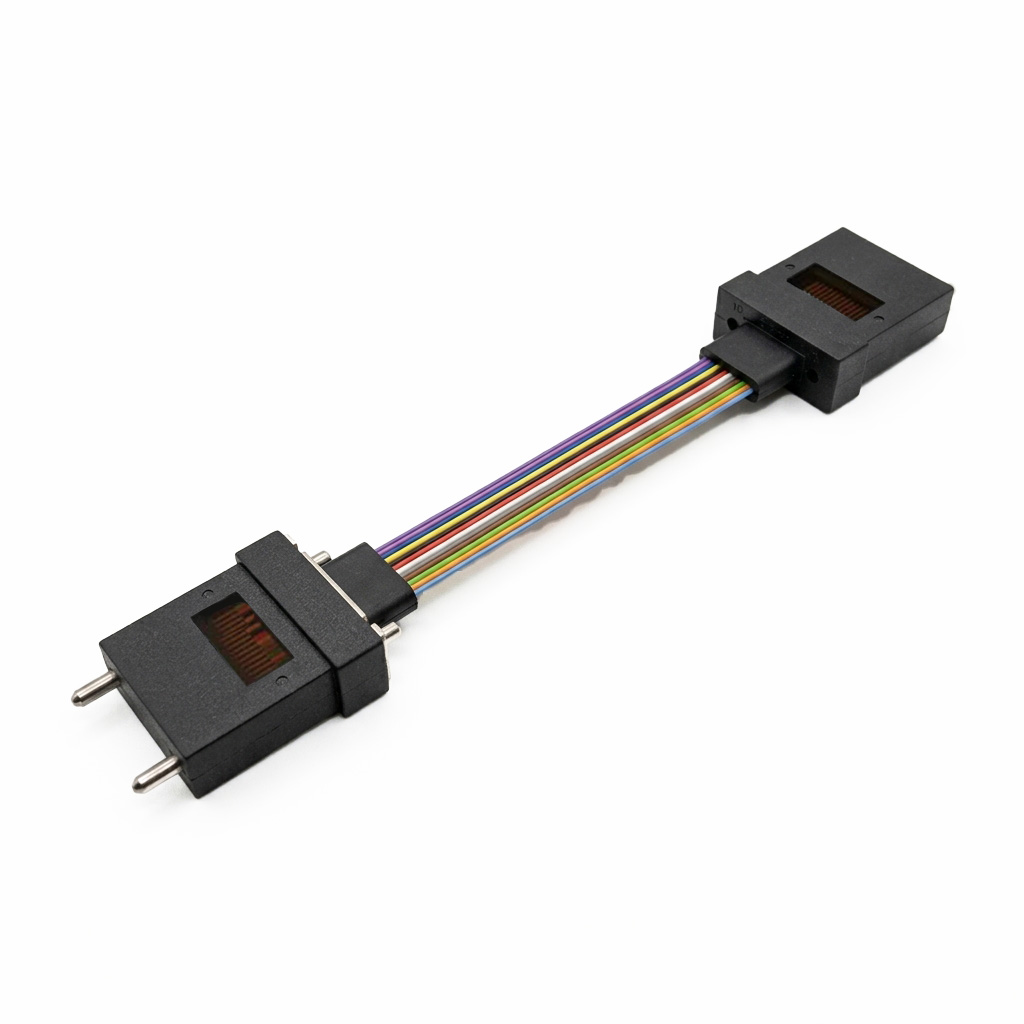

MT-MT Assembly
The MT-MT Assembly is a passive micro optical interconnect used in QSFP, QSFP+, QSFP28, 100GPSM4, QSFP-DD, Micro, OSFP, CXP, CFP, and CDFP parallel optical transceiver modules. It supports data rates from 40G to 800G, making it ideal for high-density data center deployments.
Compatible with all major parallel optical transceiver standards, the MT-MT assembly provides 0° and 8° passive coupling via guide pins and integrates seamlessly with Ethernet, Infiniband, and Fibre Channel network architectures.
Key Features
- Broad transceiver compatibility: Designed for QSFP, QSFP+, QSFP28, 100GPSM4, QSFP-DD, Micro, OSFP, CXP, CFP, and CDFP modules.
- Wide data-rate support: 40G (4×10G), 100G (4×25G), 4×32G, 200G (8×25G), and 800G (8×100G).
- Passive coupling: 0° and 8° MT-to-MT coupling via guide pins — no active components required.
- Low insertion loss: MT insertion loss ≤ 0.60 dB (typical 0.20 dB), MT return loss ≥ 20 dB.
- Multi-mode and single-mode support: OM2, OM3, OM4, OM5 multimode; OS1, OS2 single-mode.
Typical Applications
- Hyperscale data centers: 40G / 100G / 200G / 400G / 800G parallel optics interconnects.
- Ethernet optical networks: Parallel optics links between switches and servers.
- Infiniband optical networks: HPC and AI cluster fabric interconnects.
- Fibre Channel networks: Enterprise SAN connectivity.
- Switches, servers, storage, HPC: Universal interconnect for parallel optical modules across enterprise and HPC equipment.
Specifications
| Item | Specification |
|---|---|
| Connector A | MT ferrule with guide pin |
| Connector B | MT pin |
| Fiber Shape | Ribbon / Loose tube |
| Fiber Count | 8F / 12F / 16F / 24F |
| Fiber Grade | OM2, OM3, OM4, OM5; OS1, OS2 |
| Length | 20–50 mm (customizable) |
| Length Tolerance | +0.3/-0 mm to +0.5/-0 mm |
