NK2800 Mini Optical Time Domain Reflectometer (OTDR)

Inquire Online

  • Check Mark Satisfaction guarantee
  • Check Mark Fast delivery
  • Check Mark Quality assurance
Categories: ,

Description

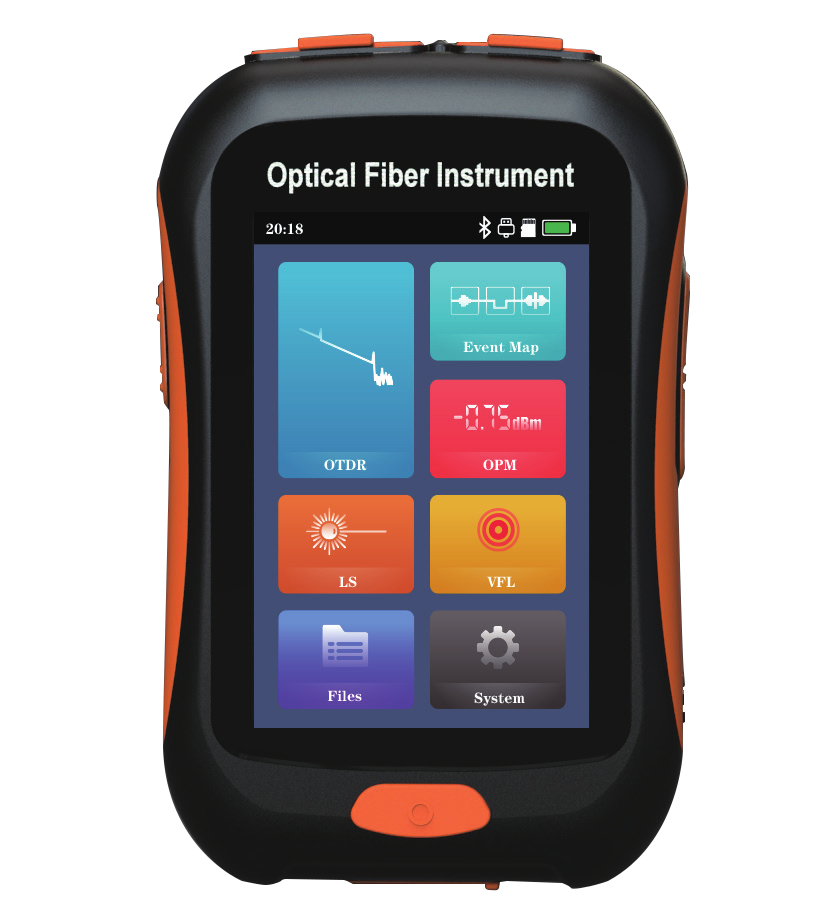

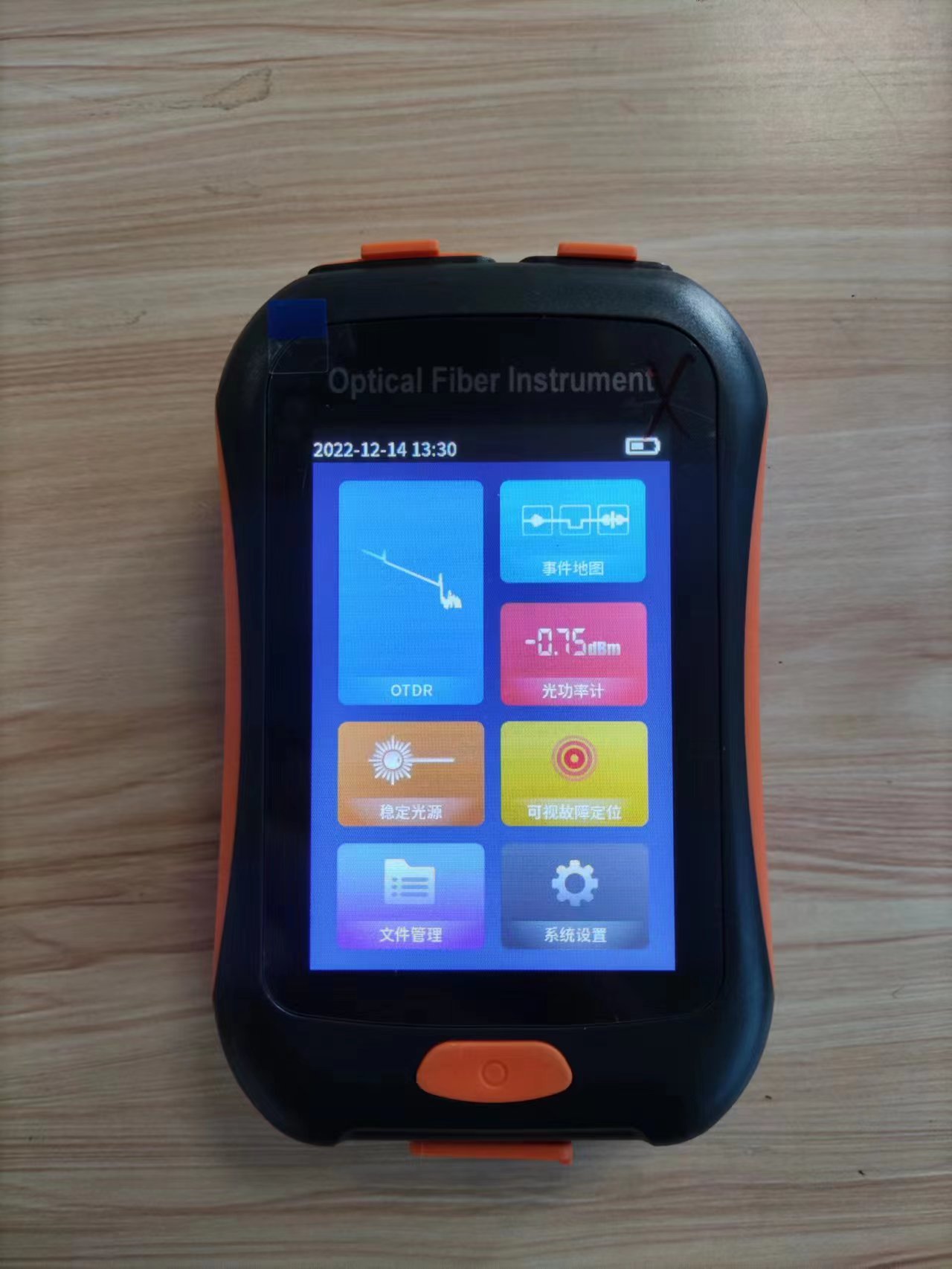

The NK2800 Mini Optical Time Domain Reflectometer (OTDR) features a compact and portable design. It incorporates a 3.5-inch high-definition touchscreen with multi-touch support for smooth operation. The device integrates multiple functions including OTDR, Event Map, Optical Power Meter, Visual Fault Locator (VFL), and flashlight, meeting diverse testing requirements across various scenarios. The OTDR function utilizes a 1550 nm wavelength and features a built-in high-efficiency wavelength isolator, enabling live fiber testing on 1490 nm and 1577 nm links. It supports live fiber testing capability up to approximately +10 dBm, with a maximum measurement range of 80 km.

The NK2800 is designed to measure fiber length, attenuation, splice quality, and other parameters. It can easily test fiber link breakpoints, bends, and loss points, making it suitable for installation and maintenance personnel for line maintenance and emergency repair testing.

Main Functions

  • OTDR
  • Event Map
  • Optical Power Meter
  • Visual Fault Locator (VFL)
  • Stable Light Source
  • Flashlight

Technical Specifications

Mini OTDR Specifications

Test Wavelength1550 nm
Fiber TypeG.652 Single-mode Fiber
Dynamic Range20 dB
Event Dead Zone2.5 m
Attenuation Dead Zone10 m
Live Fiber TestingSupported
Measurement Range100 m / 300 m / 500 m / 1.25 km / 2.5 km / 5 km / 10 km / 20 km / 40 km / 80 km
Pulse Width5 ns / 10 ns / 20 ns / 30 ns / 50 ns / 80 ns / 100 ns / 200 ns / 300 ns / 500 ns / 800 ns / 1 µs / 2 µs / 3 µs / 5 µs / 8 µs / 10 µs / 20 µs
Sampling Points20k
Loss Resolution0.01 dB
Storage2000 records

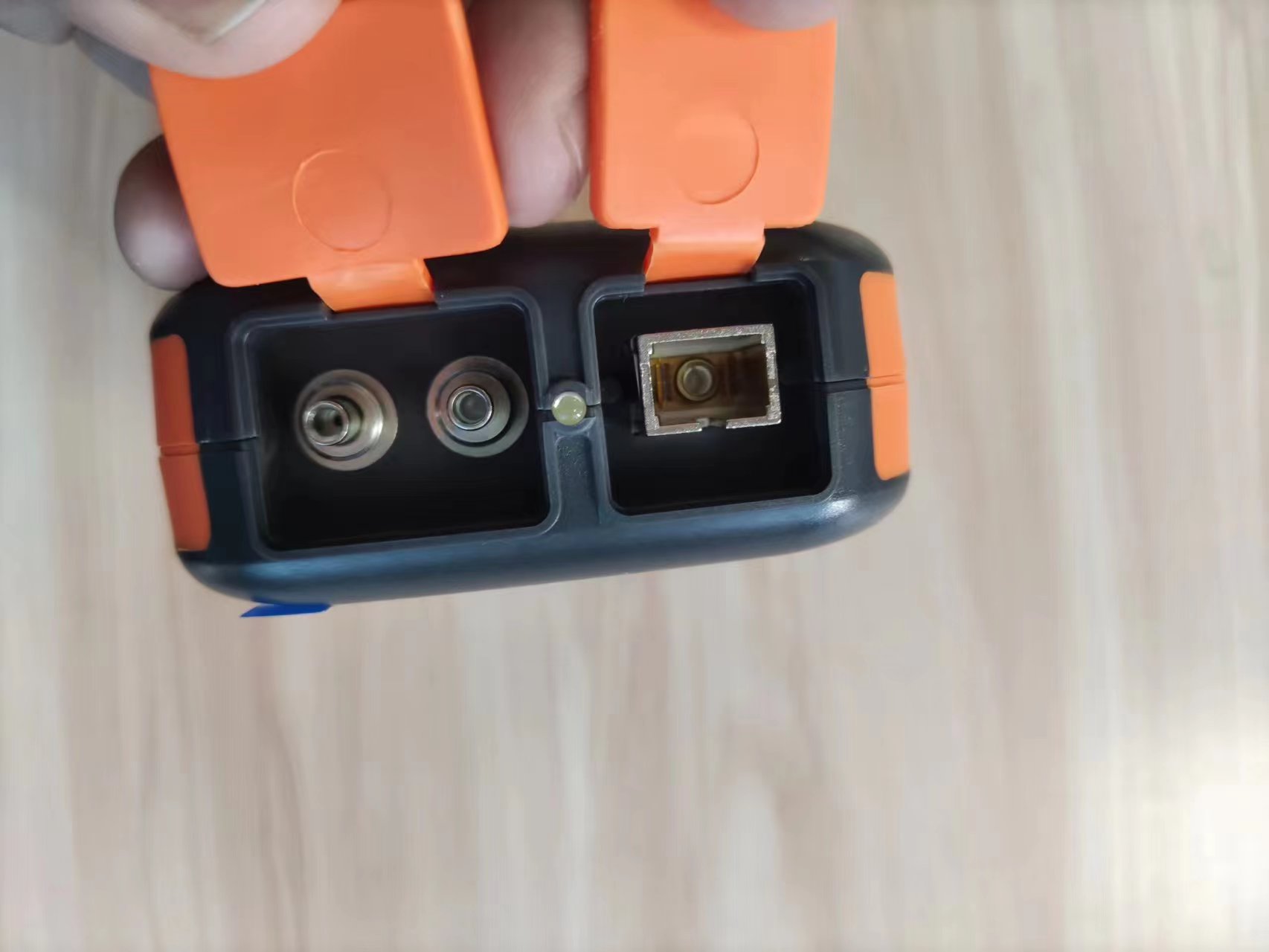

Optical ConnectorSC/PC

Optical Power Meter

Wavelength Range800 nm ~ 1700 nm
Optical ConnectorUniversal FC/SC/ST
Measurement Range-70 dBm to +6 dBm (optional) / -50 dBm to +26 dBm (standard)
Uncertainty±5%
Frequency IdentificationCW / 270 Hz / 330 Hz / 1 kHz / 2 kHz
Calibrated Wavelengths850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650 nm

Light Source

Output Wavelength1550 nm
Output Power≥ -5 dBm
Output ModeCW / 270 Hz / 330 Hz / 1 kHz / 2 kHz
Optical Output PortOTDR Port

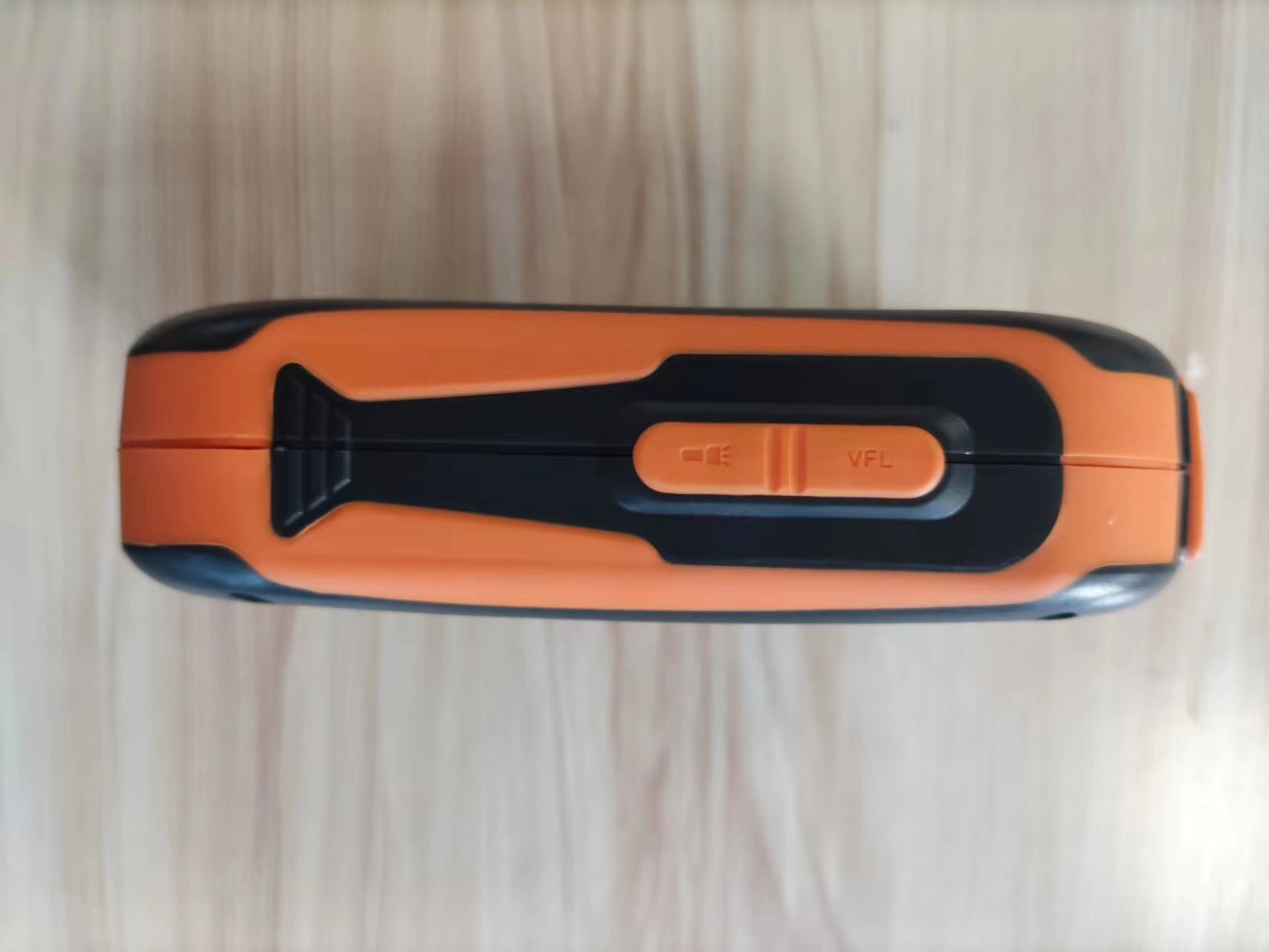

Visual Fault Locator (Red Light)

Operating Wavelength650 nm ± 20 nm
Output Power≥ 10 mW
Operating ModeCW / 1 Hz / 2 Hz
Optical ConnectorUniversal Connector

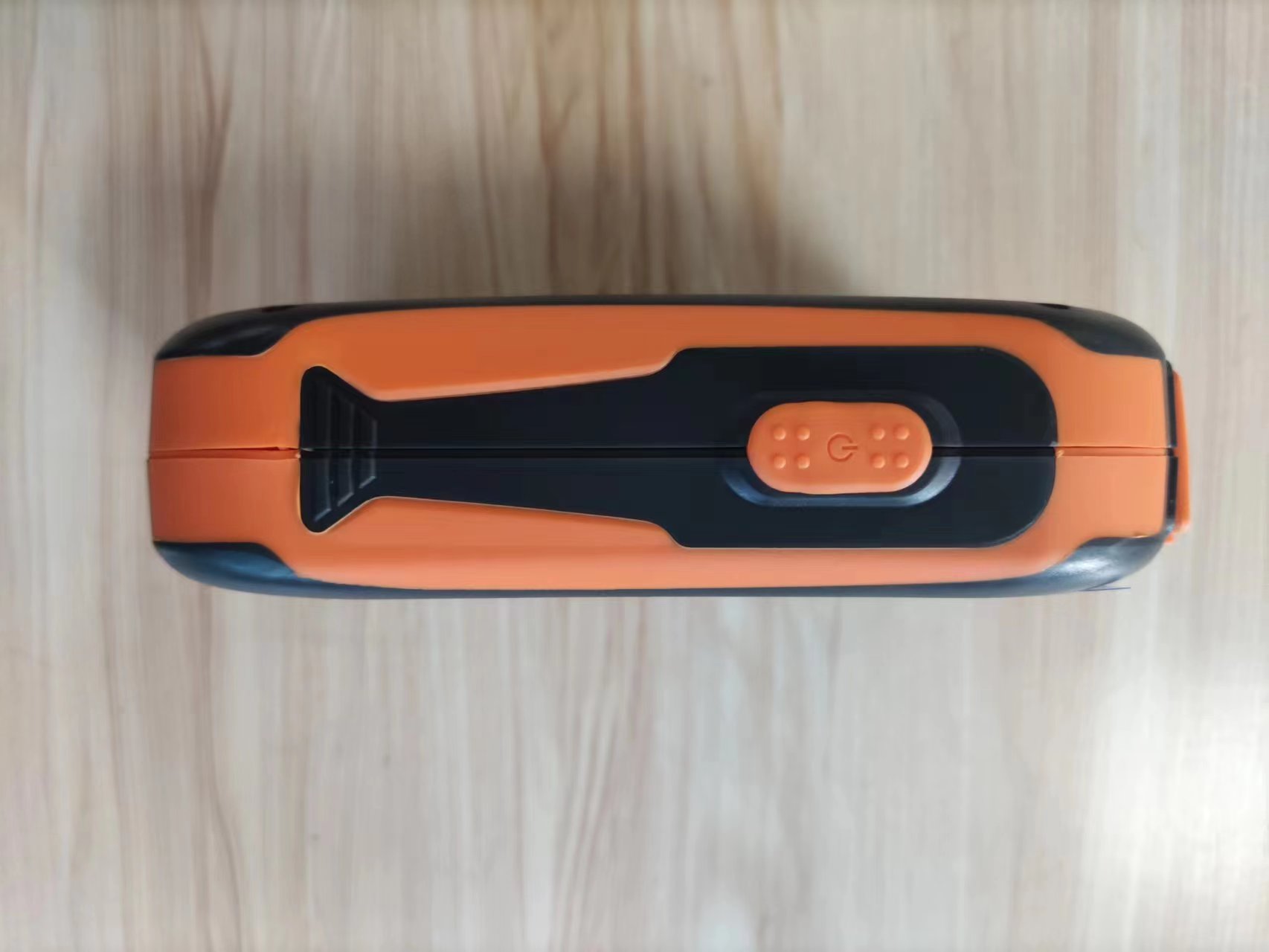

General Specifications

Display3.5-inch, 320×480 color LCD

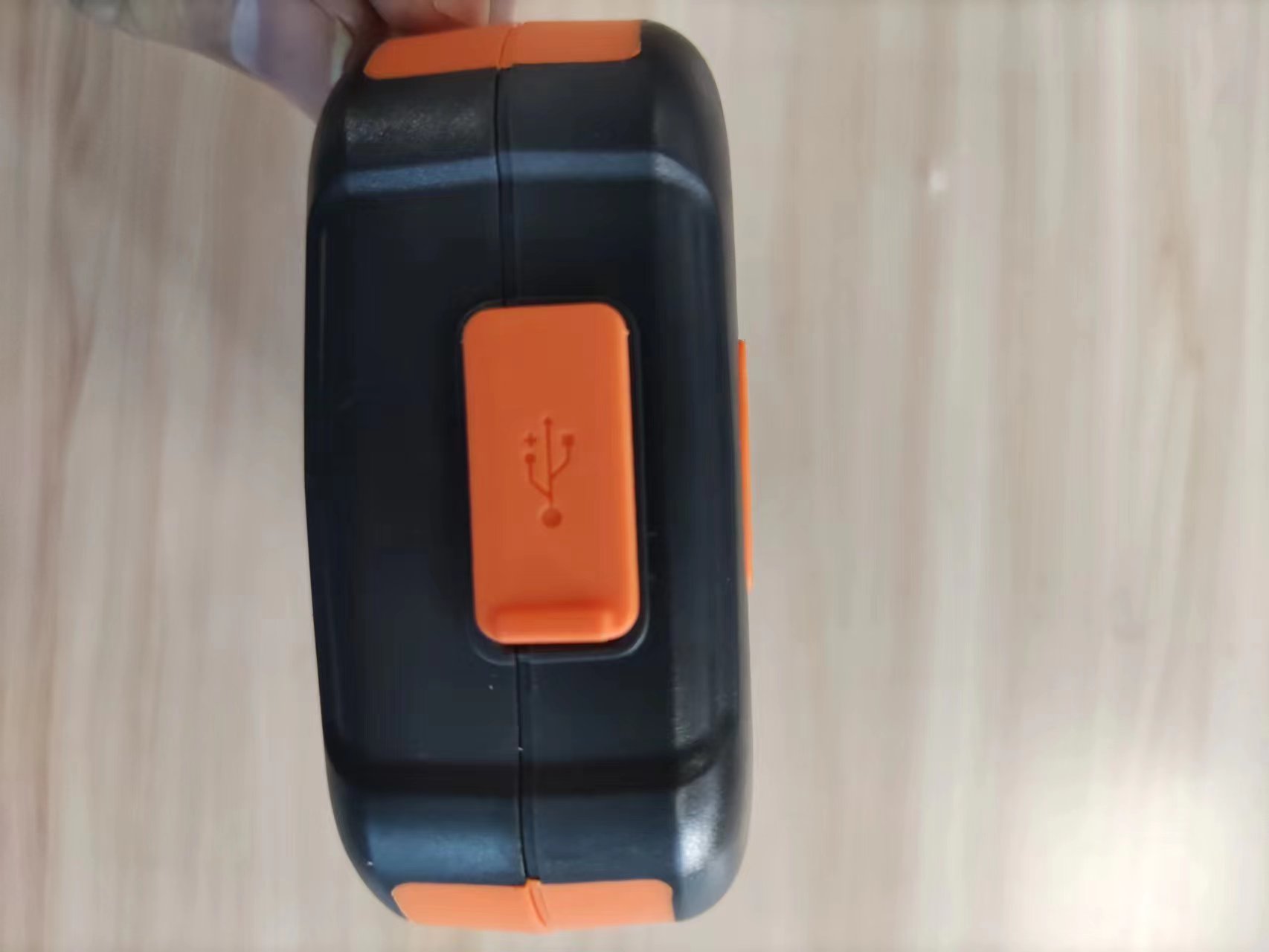

External InterfaceType-C
Power SupplyDC USB (Type-C) 5V ±10%, 2A; Polymer Lithium Battery: 2200 mAh
Battery LifeStandby >12 hours; Charging time: 4 hours (typical)
Operating Temperature-10°C to +50°C
Storage Temperature-40°C to +70°C
Relative Humidity0 to 95% non-condensing
Weight≤200 g (including battery)
Dimensions126 mm × 80 mm × 37 mm

Standard Configuration

Includes OTDR, Optical Power Meter, Red Light (Visual Fault Locator), Stable Light Source, and Flashlight.
