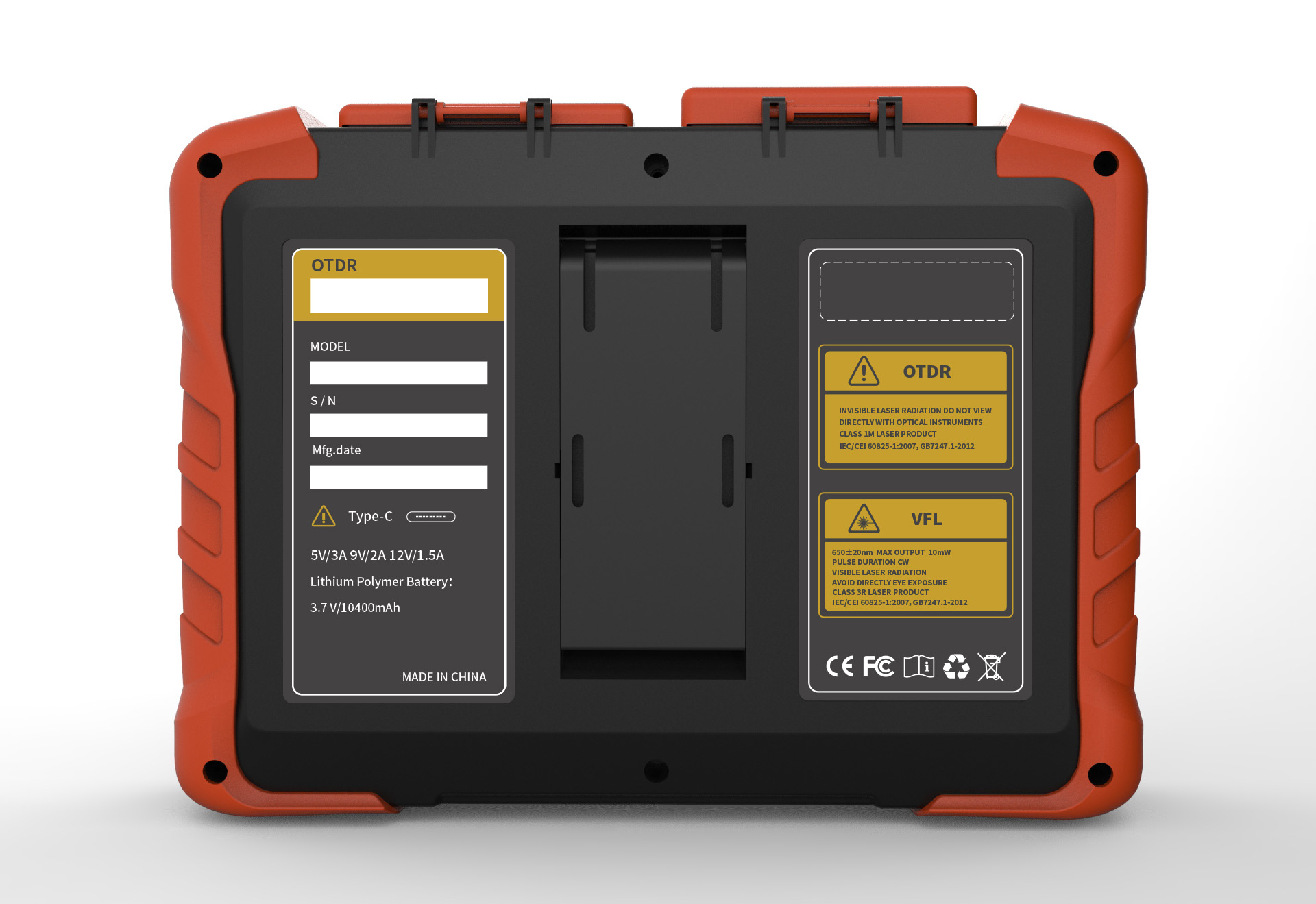

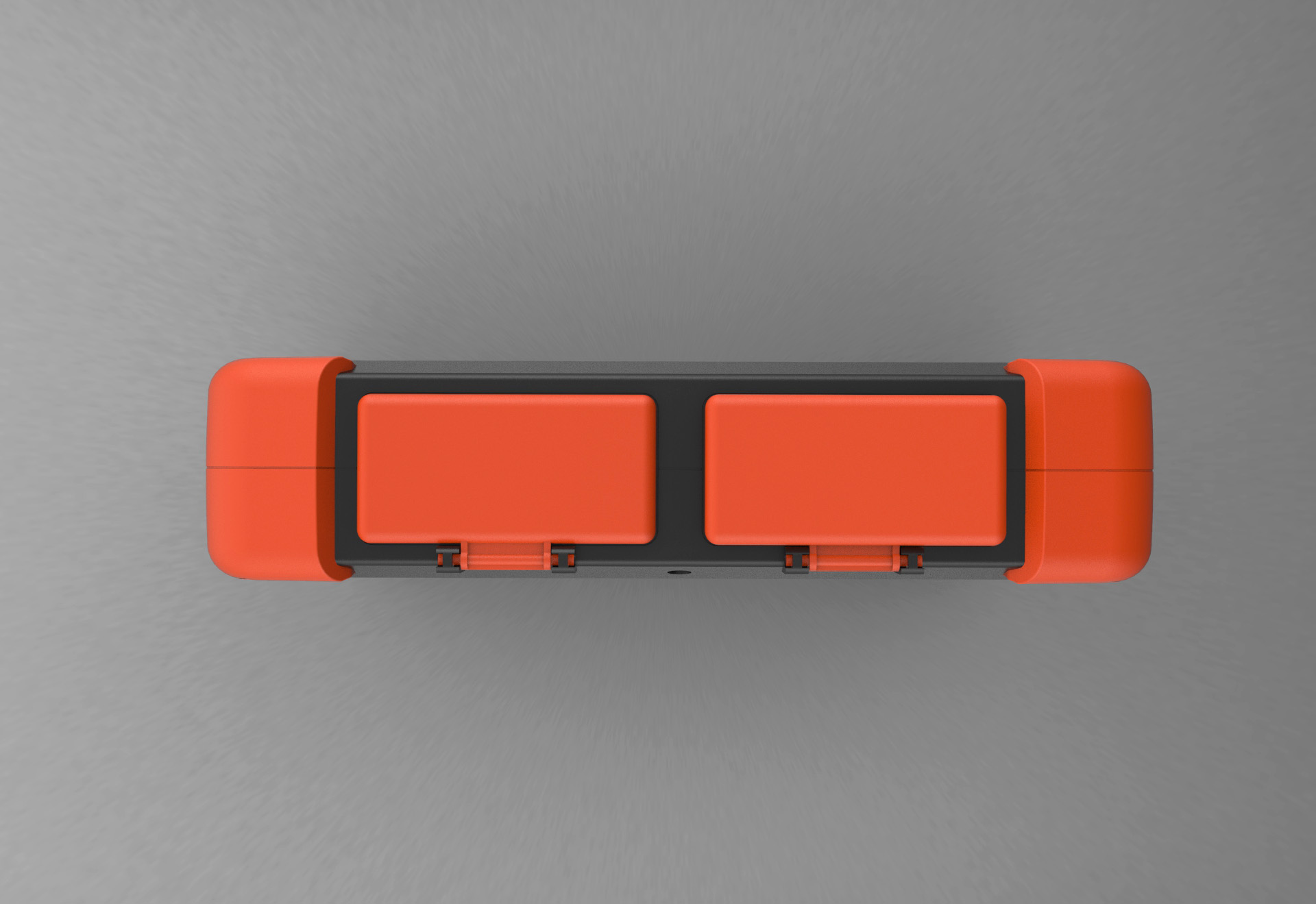

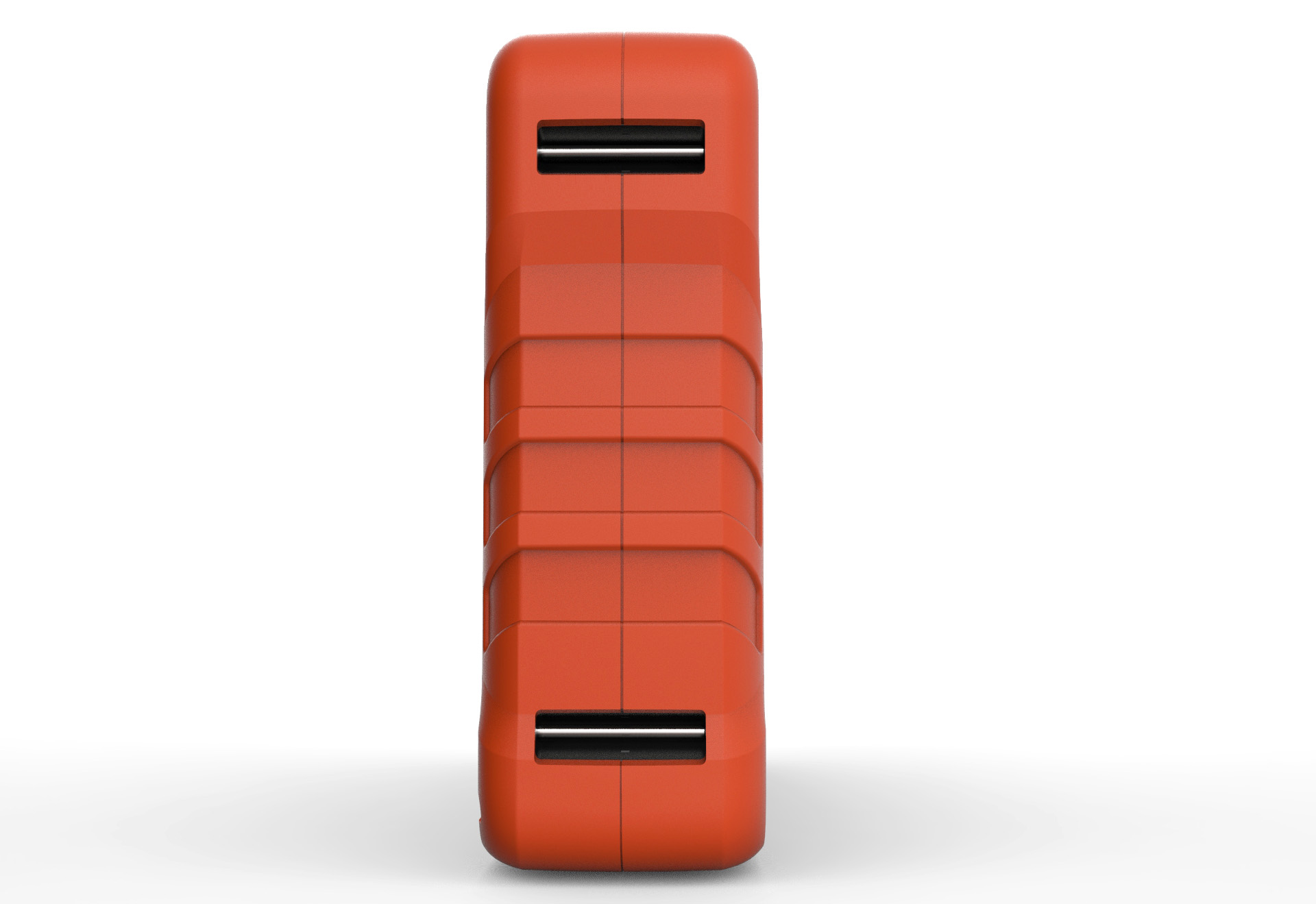

NK6200 Series OTDR with 7-inch Touch Screen and Integrated Multi-Function Testing
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description

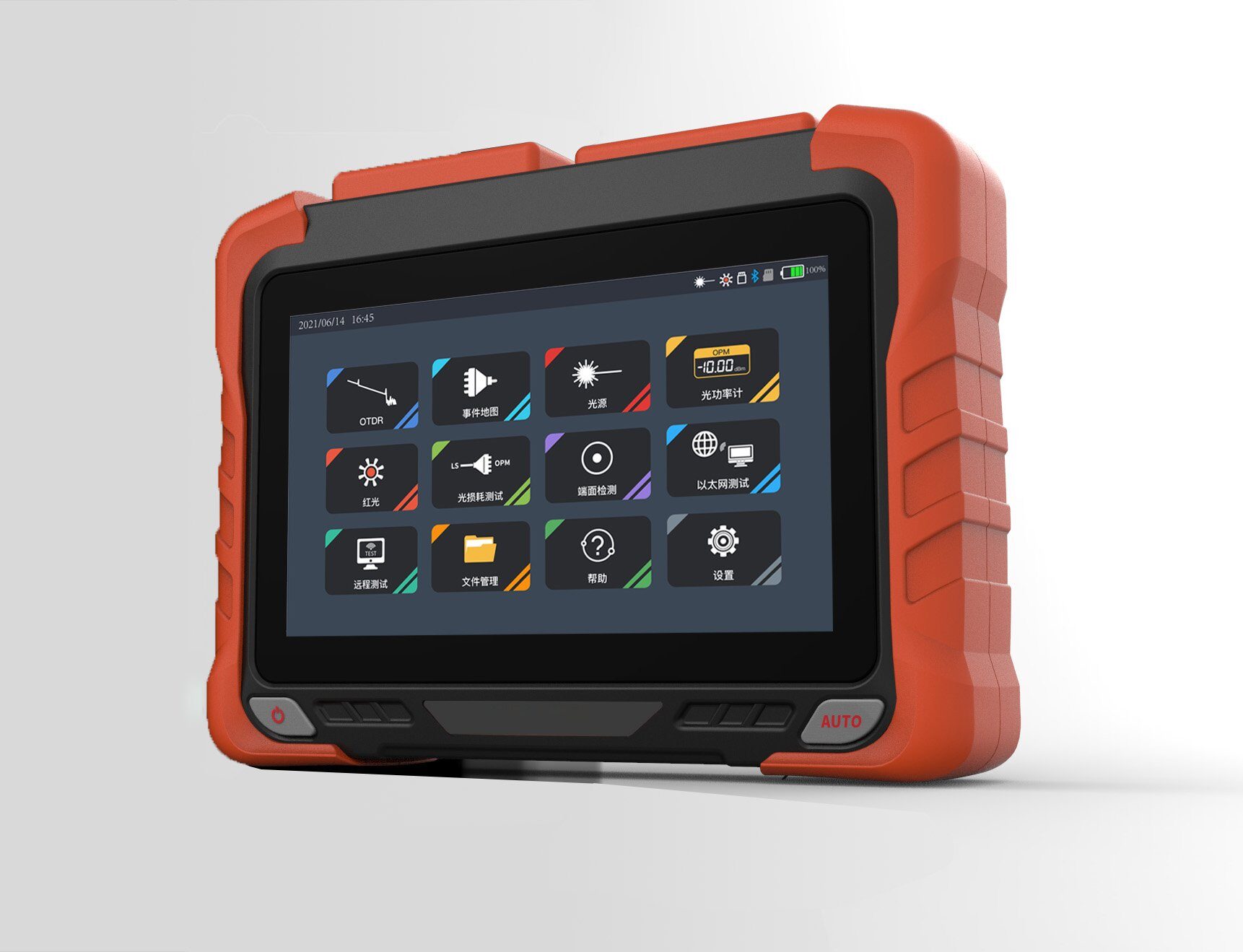

The NK6200 Series Optical Time Domain Reflectometer (OTDR) features a 7-inch capacitive touch screen and integrates 9 functional modules. With excellent intelligent hardware and software design, it delivers higher accuracy in short-fiber testing and automated measurements. It is equipped with rich Ethernet test capabilities (Ping, PPPoE, etc.) and supports APP control for remote operation.
The NK6200 Series is designed to measure optical fiber length, loss, and connection quality. It is widely used in engineering construction, link maintenance testing, and is primarily deployed in urban trunk lines, backbone networks, and metropolitan area networks.
Technical Specifications
OTDR Specifications
| Item | Specification |
|---|---|
| Available Models | S0, S1, S2, S3, S4, T1, T2, T3, T4, T5, T6, F1, M1, SM1, SM2 |
| Fiber Type | Single-mode (SM), Multi-mode (MM), or SM/MM depending on model |
| Wavelength Options |
1310 / 1550 nm 1310 / 1490 / 1550 nm 1310 / 1550 / 1625 nm 1310 / 1550 / 1650 nm 1310 / 1490 / 1550 / 1625 nm 850 / 1300 nm 850 / 1300 / 1310 / 1550 nm |
| Maximum Dynamic Range | 32 / 30 dB up to 45 / 43 dB (model dependent) |
| Event Dead Zone | 0.5 m ~ 0.8 m |
| Attenuation Dead Zone | 3.5 m ~ 4 m |
| Measurement Range |
100 m / 500 m / 1.25 km / 2.5 km / 5 km / 10 km / 20 km / 40 km / 80 km / 125 km / 260 km / 420 km |
| Pulse Width |
3 ns / 5 ns / 10 ns / 20 ns / 30 ns / 50 ns / 80 ns / 100 ns / 200 ns / 300 ns / 500 ns / 800 ns / 1 μs / 2 μs / 3 μs / 5 μs / 8 μs / 10 μs / 20 μs |
| Distance Accuracy | ±(0.75 m + sampling interval + 0.0025% × test distance) |
| Linearity | 0.03 dB/dB |
| Sampling Points | ≥ 256k |
| Sampling Resolution | 0.015 m ~ 16 m |
| Reflection Accuracy | ±2 dB |
| Loss Resolution | 0.001 dB |
| Loss Measurement Method | 4-point / 5-point method |
| File Format | SOR standard file format |
| Laser Safety Class | Class II |
| Refresh Rate | 4 Hz (typical) |
Optical Power Meter (OPM)
| Wavelength Range | 800 ~ 1700 nm |
| Measurement Range | -50 dBm ~ +26 dBm / -70 dBm ~ +6 dBm |
| Uncertainty | ±5% |
| Calibration Wavelengths | 850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650 nm |
| Connector | Universal FC / SC / ST |
Stable Light Source (LS)
| Laser Type | FP-LD |
| Wavelength | Consistent with OTDR output wavelength |
| Output Power | ≥ -5 dBm (SM fiber) |
| Modulation Modes | CW / 270 Hz / 1 kHz / 2 kHz |
| Stability | ±0.5 dB / 15 min (after 15 min warm-up) |
| Connector | FC/UPC (SC, ST interchangeable) |
Visual Fault Locator (VFL)
| Wavelength | 650 nm ± 20 nm |
| Output Power | ≥ 10 mW |
| Operating Modes | CW / 1 Hz / 2 Hz |
| Connector | FC/UPC (SC, ST interchangeable) |
