Pre-Terminated Invisible Fiber Cable with Self-Adhesive Tape – SC/APC G657B3
Pre-terminated SC/APC invisible fiber cable with self-adhesive tape for peel-and-stick installation. G.657B3 bend-insensitive fiber, up to 50 m length. Insertion loss ≤0.30 dB. Ideal for FTTH in-home wiring.
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description

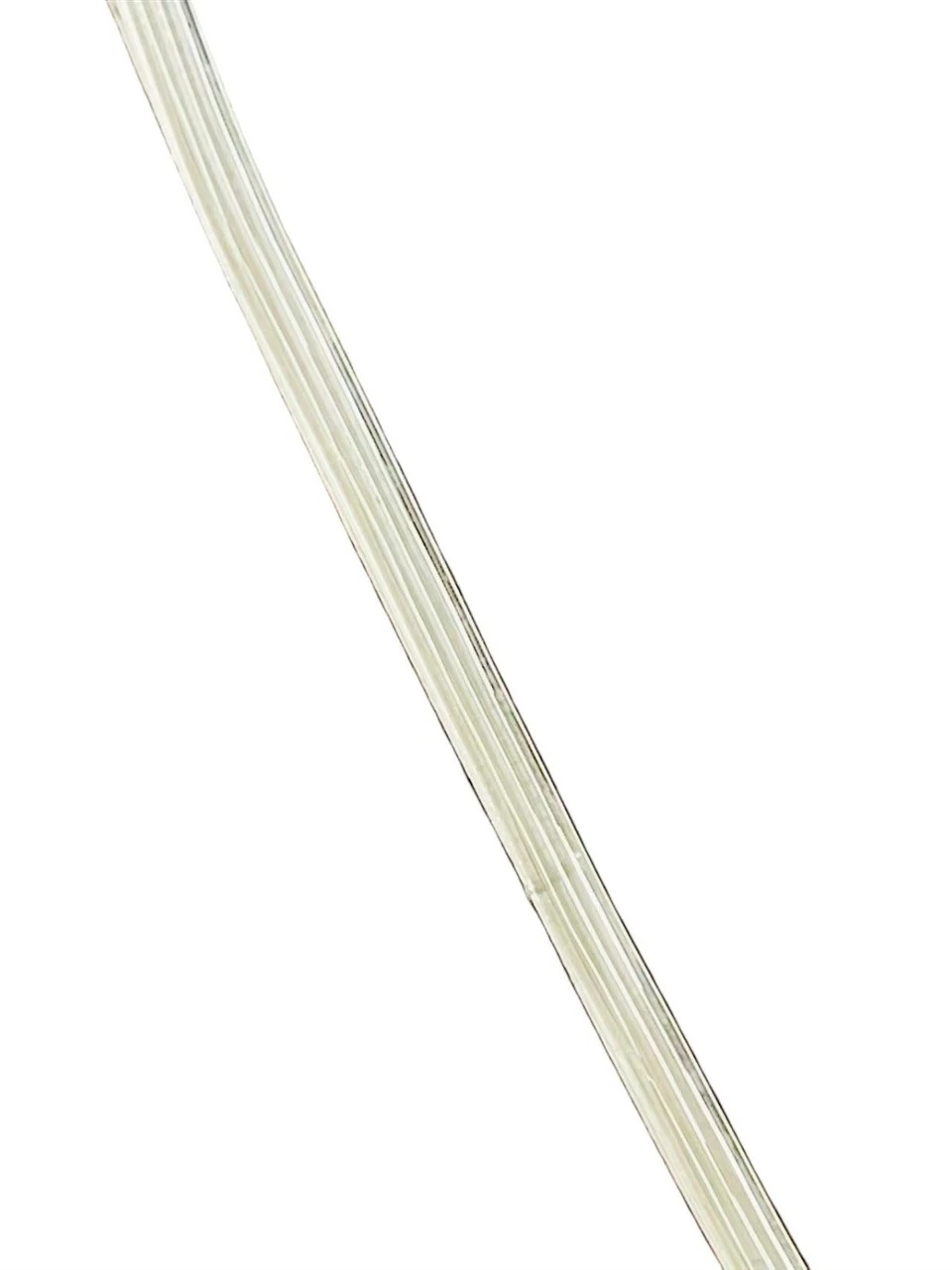

Pre-Terminated Invisible Fiber Cable with Self-Adhesive Tape
The Pre-Terminated Invisible Fiber Cable is a complete plug-and-play solution for discreet in-building fiber deployment. Factory pre-terminated with SC/APC connectors and integrated with a self-adhesive backing tape, it eliminates the need for on-site splicing or connectorization — simply peel, stick, and connect. Built with ITU-T G.657B3 bend-insensitive single-mode fiber and reinforced with dual strength members, it delivers reliable optical performance with minimal visual impact.
Key Features
- Pre-Terminated Ready-to-Use: Factory-installed SC/APC connector — no field splicing required
- Self-Adhesive Tape: Integrated adhesive backing allows quick surface-mount installation along walls, baseboards, and corners
- G.657B3 Bend-Insensitive Fiber: Superior bending performance for tight routing scenarios
- Low Insertion Loss: ≤ 0.30 dB connector loss for excellent link budget
- Dual Strength Members: Two 0.25 mm strength members provide tensile and crush resistance
- Up to 50 Meters: Available in custom lengths up to 50 m per assembly
- Lightweight: Only 4.0 kg/km for easy handling
Applications
- FTTH in-home / MDU drop wiring with minimum disruption
- Retrofit installations in occupied buildings, hotels, and heritage sites
- Office LAN extension and fiber-to-the-desk deployments
- Quick-deploy temporary fiber links for events and exhibitions
- Surface-mount routing along walls, moldings, and door frames

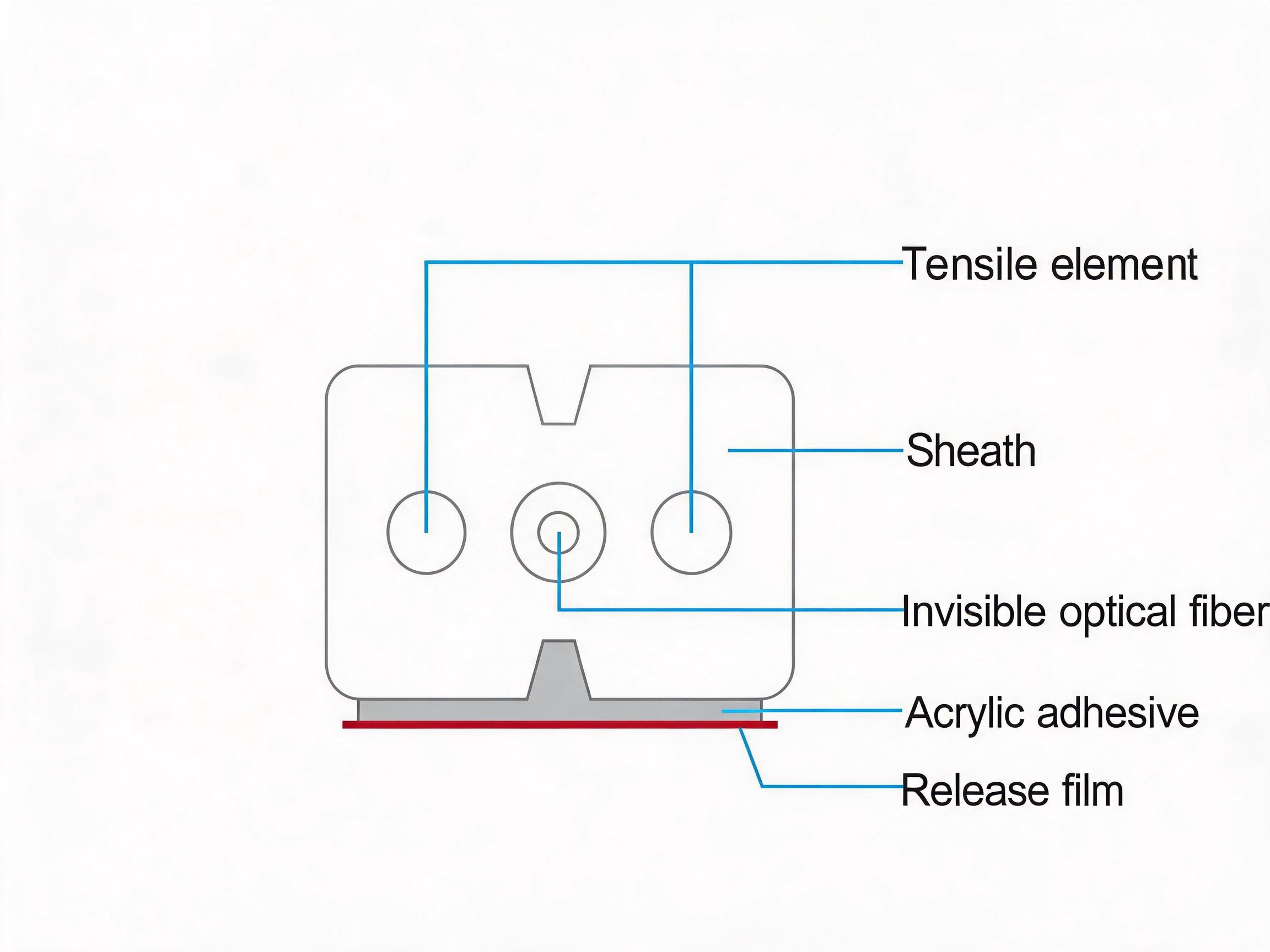

Product Structure
| Layer | Material |
|---|---|
| Optical Fiber | G.657B3 Single-Mode, Natural |
| Strength Member | 2 x 0.25 mm, Natural |
| Outer Sheath | PVC / PBT |
| Adhesive Layer | Self-Adhesive Tape, < 0.5 mm |
| Connector | SC/APC (Factory Pre-Terminated) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Cable Dimensions | (1.2 ± 0.1) x (3.0 ± 0.1) mm |
| Invisible Fiber Length | Up to 50 meters |
| Net Weight | 4.0 kg/km |
| Connector Type | SC/APC |
| Insertion Loss | ≤ 0.30 dB |
| Return Loss | UPC: ≥ 50 dB / APC: ≥ 60 dB |
| Attenuation @ 1310 nm | ≤ 0.36 dB/km |
| Attenuation @ 1550 nm | ≤ 0.25 dB/km |
Mechanical & Environmental
| Parameter | Long-Term | Short-Term |
|---|---|---|
| Tensile Performance | 10 N | 20 N |
| Crush Resistance | 50 N/100 mm | 100 N/100 mm |
| Installation Temperature | -10°C ~ +60°C | |
Manufactured under ISO 9001:2015 quality management system. All optical and mechanical properties comply with relevant IEC standards.
