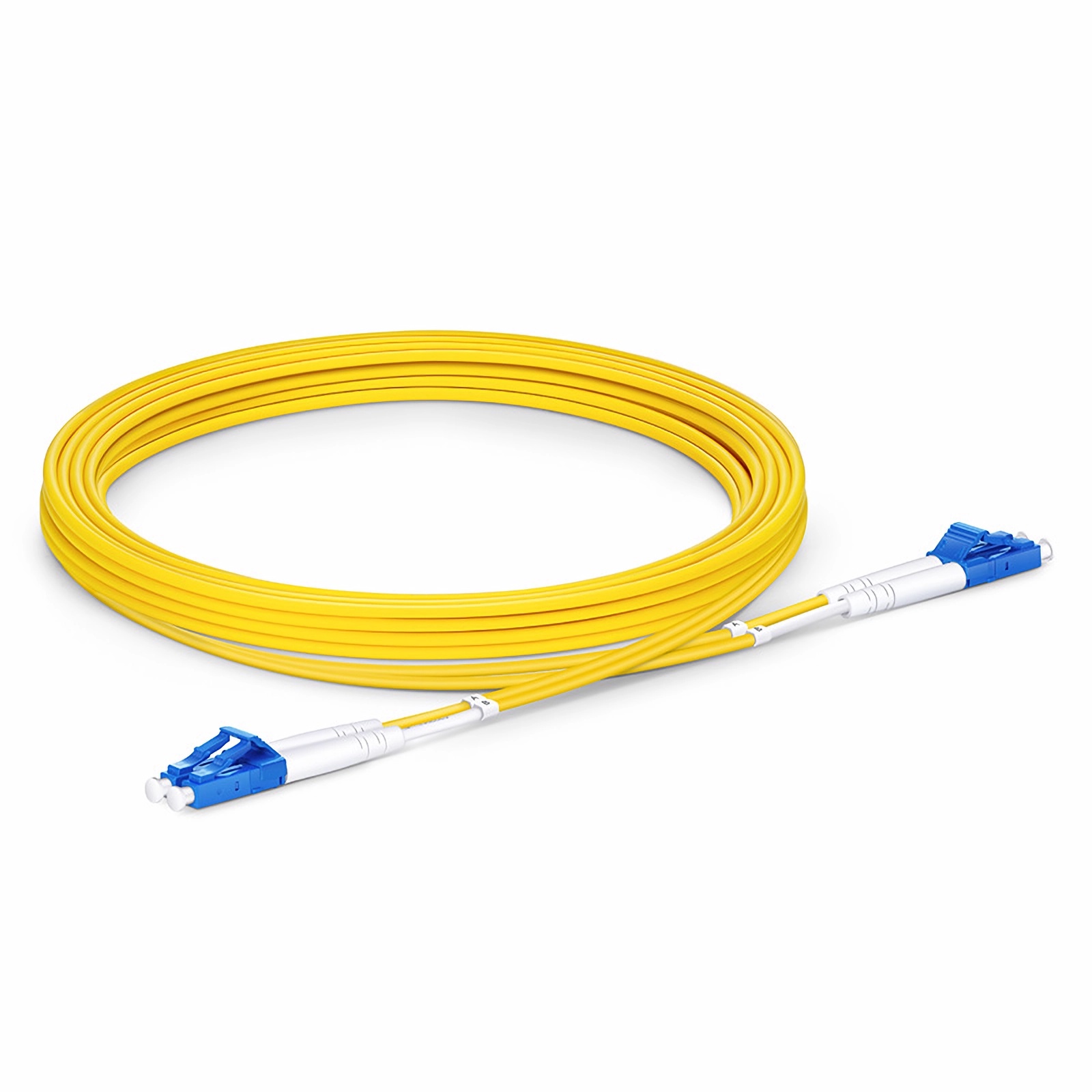

LC UPC Duplex to LC UPC Duplex, Single Mode OS2 G.657.A2 Patch Cord, LSZH, 5m

Description

LC UPC Duplex to LC UPC Duplex, Single Mode OS2 G.657.A2 Patch Cord, LSZH, 5m

Factory-terminated LC UPC duplex to LC UPC duplex singlemode patch cord built with bend-insensitive G.657.A2 fiber under Riser-rated 2.0 mm LSZH jacket, ready for data center singlemode backbone links between switches, ODF patch panels, and transceivers. Standard length 5 m (16 ft); available in 1 m / 2 m / 3 m / 5 m / 10 m / 15 m / 20 m / 30 m and custom lengths on request. Each assembly is 100% factory tested for insertion loss and endface geometry per IEC 61300-3-35.

Key Features

• G.657.A2 bend-insensitive fiber: 7.5 mm minimum bend radius for tight routing inside cable trays, raceways and behind rack-mount equipment.
• Low insertion loss: ≤ 0.20 dB typical per IEC 61753-1 Grade B, suitable for high-port-count switch and ODF deployments.
• High return loss: ≥ 50 dB (UPC) for analog video overlay and long-reach singlemode links.
• 2.0 mm LSZH duplex zipcord jacket: OFNR-rated, flame-retardant, low-smoke zero-halogen compliant with IEC 60332-3.
• LC UPC duplex clip: integrated duplex clip for standard LC duplex adapters, color-coded blue boots per TIA-568.3-E OS2 standard.
• 100% factory tested: insertion loss and endface geometry per IEC 61300-3-35; test report shipped with each assembly.
• Custom lengths: standard 1 m / 2 m / 3 m / 5 m / 10 m / 15 m / 20 m / 30 m; custom lengths from 0.5 m to 100 m available.

Applications

• Data center singlemode backbone patch between switches and ODF patch panels
• FTTH and central office equipment room jumpers
• Transceiver (SFP/SFP+/XFP/QSFP) LC port patch links
• CATV and analog video overlay networks
• Enterprise telecom and equipment room interconnects
• Long-reach singlemode links up to 40 km (with appropriate transceivers)

Product Structure

Component	Specification
Connectors (both ends)	LC UPC Duplex, blue boots, with integrated duplex clip
Fiber type	Singlemode 9/125 µm OS2, G.657.A2 bend-insensitive
Cable structure	Duplex zipcord (figure-8) with 2.0 mm sub-units
Jacket material	LSZH (Low Smoke Zero Halogen), OFNR-rated
Jacket color	Yellow (TIA-598-D OS2 standard)
Cable outer dimension	4.0 mm × 7.0 mm (zipcord)
Minimum bend radius	30 mm (cable); 7.5 mm (G.657.A2 fiber)
Standard length	5 m (custom 1 m – 100 m available)
Operating temperature	-20 °C to +70 °C

Technical Specifications

Cable Construction

Parameter	Value
Fiber count	2 (duplex)
Fiber mode	Singlemode 9/125 µm OS2, G.657.A2
Cable type	Duplex zipcord (figure-8)
Cable dimension	4.0 mm × 7.0 mm
Jacket material	LSZH (Low Smoke Zero Halogen), OFNR
Jacket color	Yellow
Minimum bend radius (cable)	30 mm
Minimum bend radius (fiber)	7.5 mm (G.657.A2)
Tensile load (long term)	100 N
Crush resistance	500 N/100 mm

Optical Characteristics

Parameter	Value
Insertion loss (typical)	≤ 0.20 dB
Insertion loss (max)	≤ 0.30 dB
Return loss	≥ 50 dB (UPC)
Operating wavelength	1310 nm / 1550 nm / 1625 nm
Attenuation at 1310 nm	≤ 0.40 dB/km
Attenuation at 1550 nm	≤ 0.30 dB/km
Attenuation at 1625 nm	≤ 0.40 dB/km
Macrobend loss (1 turn @ 15 mm radius, 1550 nm)	≤ 0.05 dB
Macrobend loss (1 turn @ 15 mm radius, 1625 nm)	≤ 0.10 dB

Mechanical & Environmental

Parameter	Value
Operating temperature	-20 °C to +70 °C
Storage temperature	-40 °C to +85 °C
Mating cycles	LC ≥ 1000 cycles
Flame retardant	IEC 60332-3 compliant, OFNR-rated
Smoke density	IEC 61034 compliant
Halogen content	IEC 60754-1 compliant (zero halogen)
RoHS / REACH	Compliant

Compliant with IEC 61753-1, IEC 61300-3-35, TIA-568.3-E and ISO/IEC 11801-1 OS2. Each assembly ships with serial number, test report and length-specific labeling.
