MTP-8 to 4 x LC UPC Harness, 8 Fibers, OM4, Type B
MTP-8 to 4 x LC UPC Harness, 8 Fibers, OM4, Type B
MPO/MPT

MTP-8 to 4 x LC UPC Harness, 8 Fibers, OM4, Type B

Factory-terminated MTP-8 (UPC) to 4× LC UPC duplex breakout harness for OM4 multimode 40G/100G/400G data center links, Type B polarity, LSZH violet jacket.

  • Check Mark Satisfaction guarantee
  • Check Mark Fast delivery
  • Check Mark Quality assurance
Category: Tags: , , ,

Description

MTP-8 to 4 x LC UPC Harness, 8 Fibers, OM4, Type B

Factory-terminated MTP-8 (UPC) to 4× LC UPC duplex breakout harness for high-density multimode optical interconnects inside data centers. The OM4 multimode MTP connector on one end breaks out to four LC UPC duplex legs on the other end, mapping an 8-fiber (Base-8) channel with Type B (crossover) polarity. The assembly uses bend-insensitive OM4 fiber (50/125 µm) under LSZH jacket and is 100% factory tested, ready for direct plug-in between OM4 MTP trunk cables and LC switch ports in 40G/100G/400G parallel optics deployments.

MTP-8 to 4 x LC UPC Harness, 8 Fibers, OM4, Type B

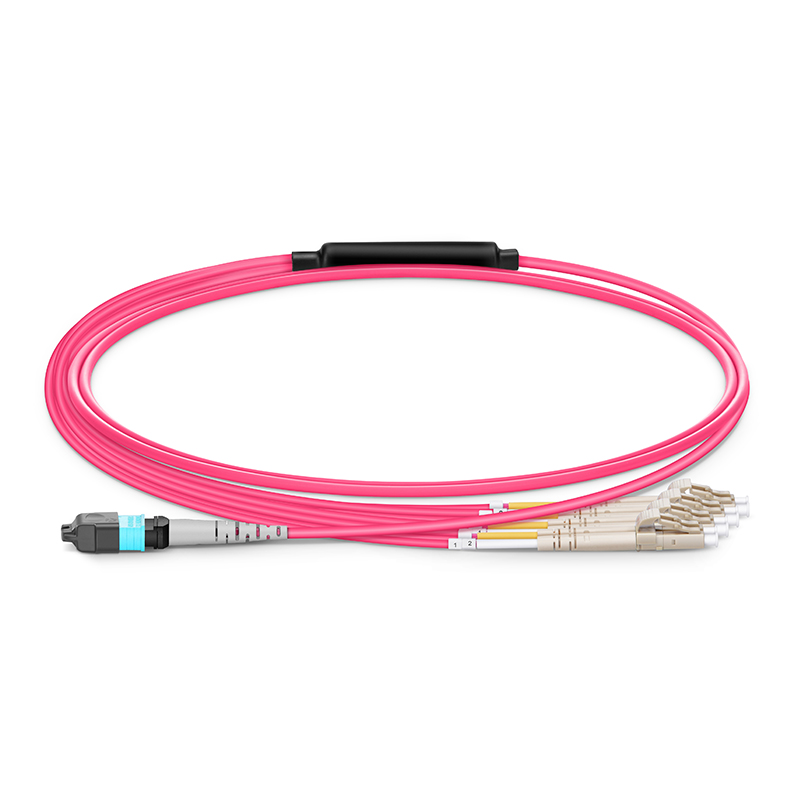

MTP-8 to 4 × LC UPC Harness, 8 Fibers, OM4, Type B — factory-terminated multimode breakout assembly with violet LSZH jacket

Key Features

  • Base-8 OM4 breakout: one MTP-8 connector breaks out to 4× duplex LC UPC legs, ideal for SR4 parallel optics migration.
  • Type B (crossover) polarity: standard polarity for direct connection between MTP cassettes at both ends of a link.
  • Low insertion loss: MTP ≤ 0.35 dB typical; LC UPC ≤ 0.2 dB typical, fully interchangeable per IEC 61753-1 Grade B.
  • High return loss: UPC end ≥ 30 dB multimode per IEC 61300-3-4.
  • OM4 bend-insensitive fiber: 50/125 µm OM4 with 7.5 mm minimum bend radius, optimized for 850 nm VCSEL transmission up to 150 m @ 100G.
  • LSZH jacket (violet): OFNR-rated violet jacket per TIA-568.3-E OM4 color code.
  • 100% factory tested: insertion loss and endface geometry per IEC 61300-3-35; test report shipped with each assembly.

Applications

  • 40G SR4 / 100G SR4 / 400G SR4.2 parallel optics breakout
  • Hyperscale spine-leaf architecture with multimode OM4 backbone
  • MPO/MTP cassette to LC patch panel fan-out
  • QSFP / QSFP28 / QSFP-DD transceiver fan-out inside racks
  • Multimode OM4 backbone links in enterprise equipment rooms

Product Structure

Component Specification
MTP end connector MTP-8 Female (no pins), UPC endface (aqua boot)
LC breakout connectors 4 × LC UPC Duplex (beige boots)
Polarity Type B (crossover)
Fiber type Multimode OM4 50/125 µm, bend-insensitive
MTP trunk jacket 3.0 mm LSZH, violet, OFNR
LC breakout legs 2.0 mm LSZH, violet, OFNR
Breakout length 0.5 m standard, customizable 0.3 m – 1.5 m
Total length 1 m / 2 m / 3 m / 5 m / 10 m / 15 m / custom
Operating temperature -20 °C to +70 °C

Technical Specifications

Cable Construction

Parameter Value
Fiber count 8 (Base-8)
Fiber mode Multimode OM4, 50/125 µm, bend-insensitive
Trunk diameter 3.0 mm
Breakout leg diameter 2.0 mm
Jacket material LSZH (Low Smoke Zero Halogen), OFNR
Jacket color Violet (per TIA-568.3-E OM4)
Minimum bend radius 7.5 mm
Tensile load (long term) 100 N

Optical Characteristics

Parameter MTP UPC LC UPC
Insertion loss (typical) ≤ 0.35 dB ≤ 0.20 dB
Insertion loss (max) ≤ 0.75 dB ≤ 0.30 dB
Return loss ≥ 30 dB (UPC MM) ≥ 30 dB (UPC MM)
Operating wavelength 850 nm / 1300 nm (850 nm primary for OM4) 850 nm / 1300 nm
Bandwidth @ 850 nm ≥ 4700 MHz·km (OM4) ≥ 4700 MHz·km (OM4)
Reach at 100G (SR4) Up to 150 m @ 850 nm —

Mechanical & Environmental

Parameter Value
Operating temperature -20 °C to +70 °C
Storage temperature -40 °C to +85 °C
Mating cycles MTP ≥ 500 cycles; LC ≥ 1000 cycles
Flame retardant IEC 60332-3 compliant
RoHS / REACH Compliant

Compliant with IEC 61753-1, IEC 61300-3-35, TIA-568.3-E and ISO/IEC 11801-1 OM4. Each assembly ships with serial number, test report and length-specific labeling.
