MPO-12 Multimode Patch Cord (OM3 / OM4 / OM5), LSZH, Type B
Factory-terminated MPO-12 Female to MPO-12 Female multimode patch cord available in OM3, OM4, and OM5, LSZH jacket, Type B polarity. For 40G/100G/400G SR4 and SWDM4 parallel optics in data centers.
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description
MPO-12 Multimode Patch Cord (OM3 / OM4 / OM5), LSZH, Type B

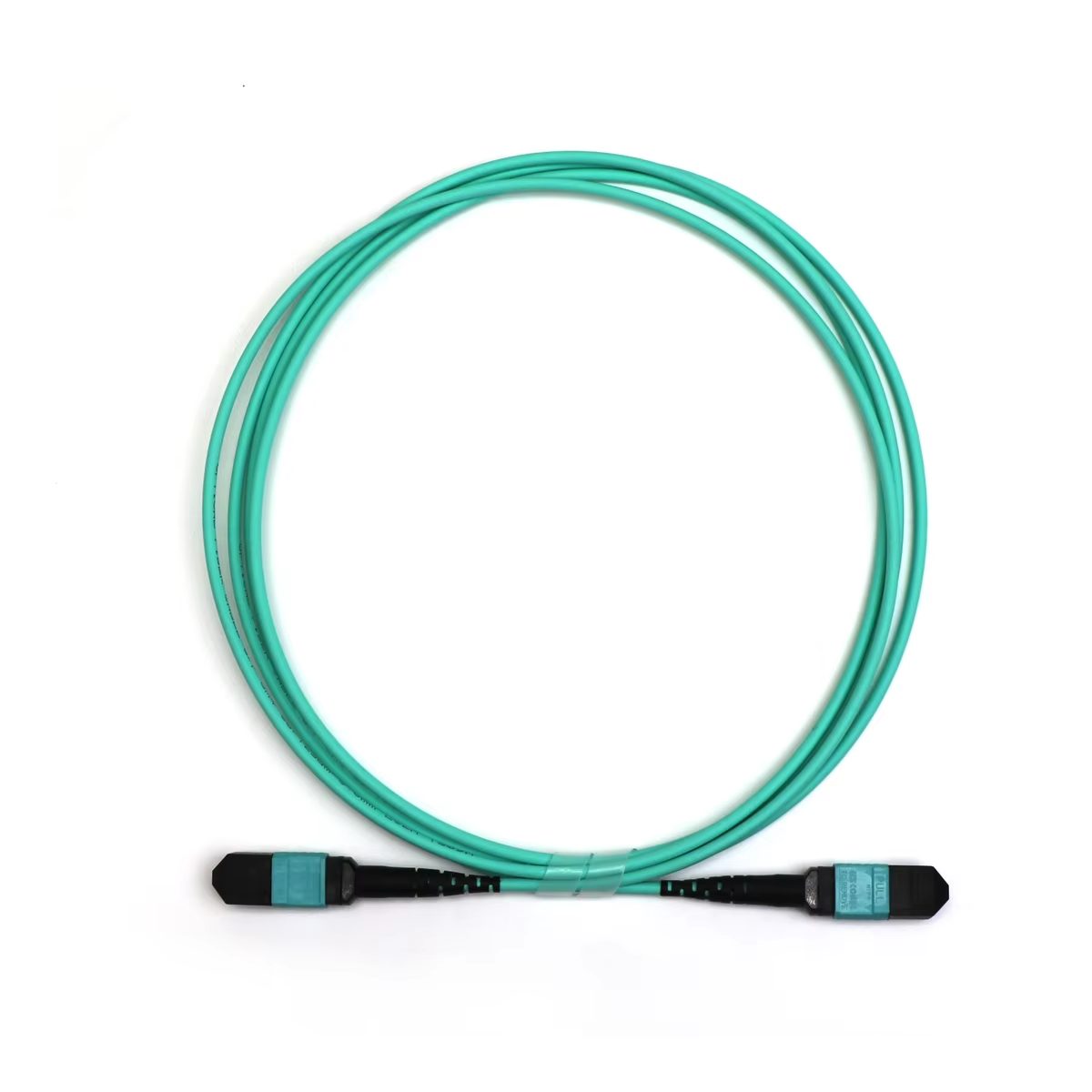

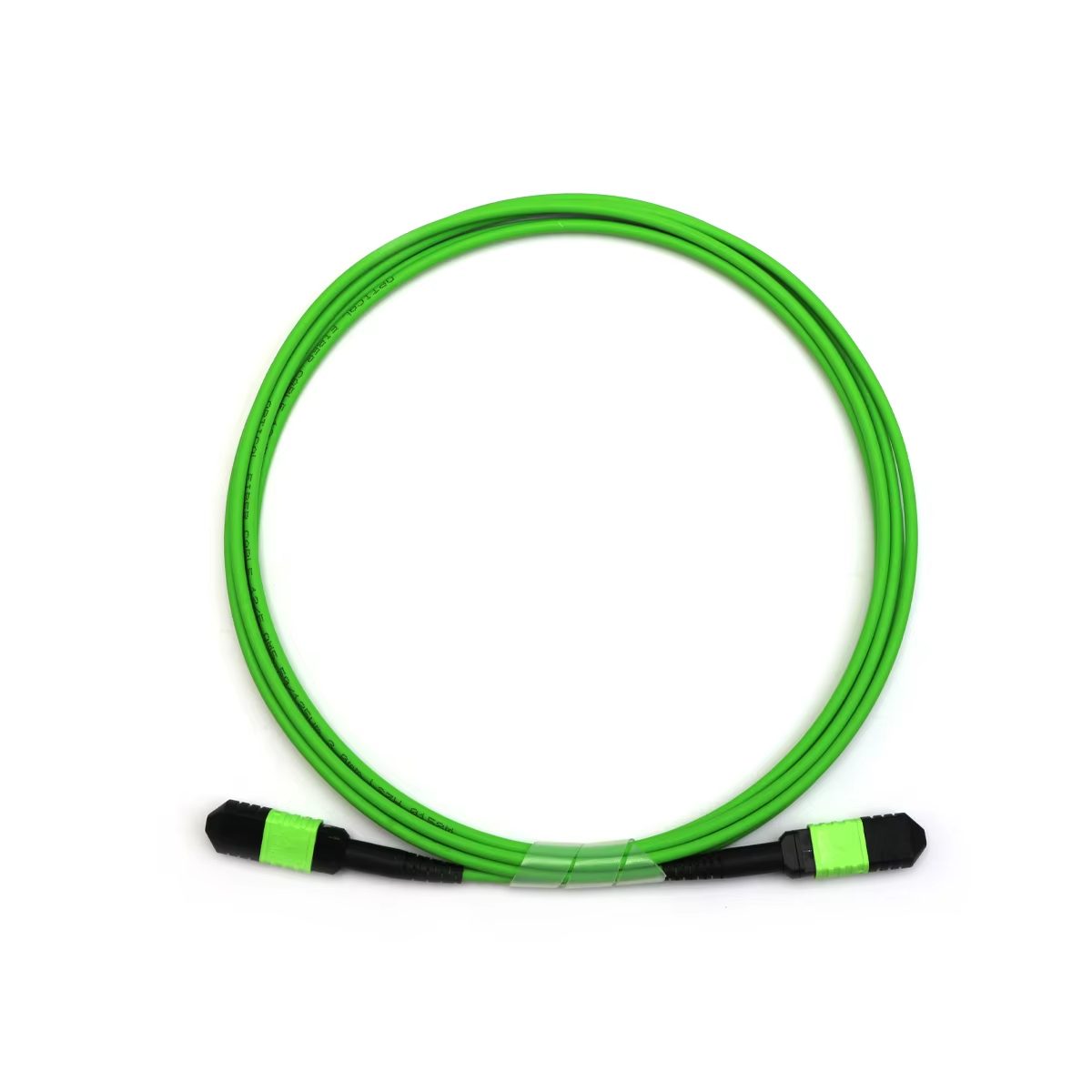

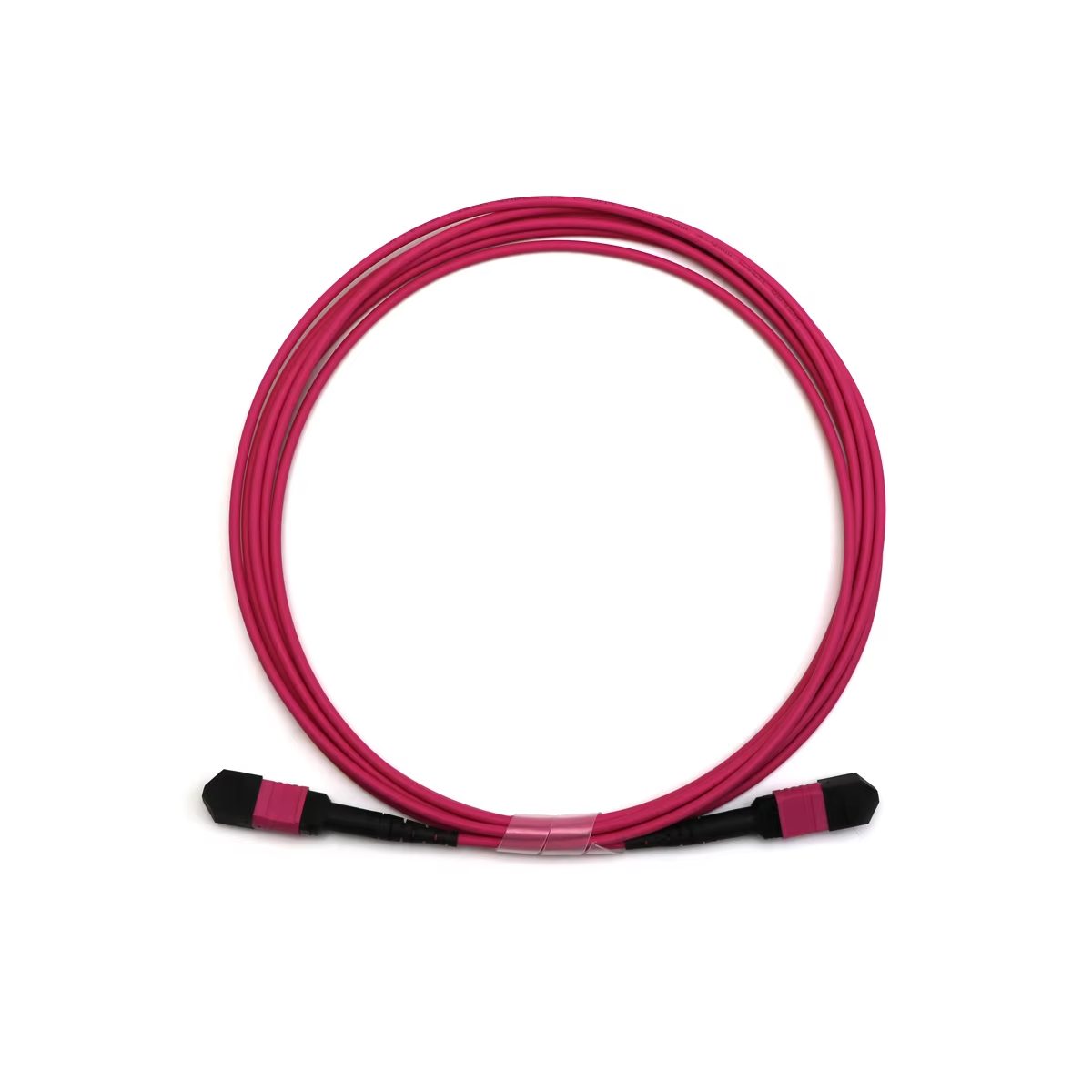

Factory-terminated MPO-12 to MPO-12 multimode patch cord with female-to-female MPO connectors and Type B (crossover) polarity, available in three multimode fiber grades: OM3 (Aqua), OM4 (Violet), and OM5 wideband (Lime green). The 12-fiber ribbon assembly uses bend-insensitive 50/125 µm fiber under LSZH jacket, ready for plug-in between MPO/MTP cassettes, transceivers (QSFP/QSFP28/QSFP-DD SR4) and patch panels in high-density data center parallel optics deployments. Each assembly is 100% factory tested for insertion loss and endface geometry per IEC 61300-3-35.
Available modes: OM3 (10G/40G up to 100 m @ 850 nm), OM4 (10G/40G/100G up to 150 m @ 850 nm), and OM5 wideband (40G/100G SWDM4 up to 440 m, 400G SR4.2 up to 150 m). Choose the mode that matches your transceiver and reach requirements.
Key Features
- Three multimode grades on one product page: OM3 Aqua, OM4 Violet, OM5 Lime green — order the same MPO-12 patch cord at the mode your link needs.
- MPO-12 female-to-female assembly: standard for parallel optics transceivers (no pins on either end; pair with MPO male-to-male trunk cables for full duplex link).
- Type B (crossover) polarity: standard polarity for 40G/100G SR4 direct connection between MPO/MTP cassettes.
- Low insertion loss: MPO multimode ≤ 0.35 dB typical per IEC 61753-1 Grade B.
- High return loss: ≥ 30 dB multimode per IEC 61300-3-4.
- Bend-insensitive 50/125 µm fiber: 7.5 mm minimum bend radius for tight routing inside racks.
- LSZH jacket: OFNR-rated jacket in TIA-568.3-E standard color code per mode (Aqua/Violet/Lime).
- 100% factory tested: insertion loss and endface geometry per IEC 61300-3-35; test report shipped with each assembly.
Applications
- 40G SR4 / 100G SR4 / 400G SR4.2 parallel optics patch cord between QSFP transceivers and MPO cassettes
- OM5 SWDM4 40G/100G/400G over a single MPO-12 (4 wavelengths × 25G/lane or 50G/lane)
- Hyperscale spine-leaf and leaf-spine high-density architecture
- MPO/MTP cassette-to-cassette direct connection inside ODF frames
- Top-of-rack switch to spine switch optical patch links
- Multimode backbone links in enterprise equipment rooms and data centers
Product Structure
| Component | Specification |
|---|---|
| Connectors | MPO-12 Female (no pins) to MPO-12 Female (no pins), UPC endface |
| Polarity | Type B (crossover) |
| Fiber types available | OM3 50/125 µm / OM4 50/125 µm bend-insensitive / OM5 wideband 50/125 µm bend-insensitive |
| Cable diameter | 3.0 mm round ribbon cable |
| Jacket material | LSZH (Low Smoke Zero Halogen), OFNR |
| Jacket color (by mode) | OM3 — Aqua; OM4 — Violet; OM5 — Lime green (per TIA-568.3-E) |
| Minimum bend radius | 7.5 mm |
| Cable length | 1 m / 2 m / 3 m / 5 m / 10 m / custom |
| Operating temperature | -20 °C to +70 °C |
Technical Specifications
Cable Construction
| Parameter | Value |
|---|---|
| Fiber count | 12 |
| Fiber mode | Multimode OM3 / OM4 / OM5 — 50/125 µm bend-insensitive |
| Cable diameter | 3.0 mm round ribbon |
| Jacket material | LSZH (Low Smoke Zero Halogen), OFNR |
| Jacket color | Aqua (OM3) / Violet (OM4) / Lime green (OM5) |
| Minimum bend radius | 7.5 mm |
| Tensile load (long term) | 100 N |
Optical Characteristics — by Mode
| Parameter | OM3 | OM4 | OM5 |
|---|---|---|---|
| Insertion loss (typical) | ≤ 0.35 dB | ≤ 0.35 dB | ≤ 0.35 dB |
| Insertion loss (max) | ≤ 0.75 dB | ≤ 0.75 dB | ≤ 0.75 dB |
| Return loss | ≥ 30 dB (UPC MM) | ≥ 30 dB (UPC MM) | ≥ 30 dB (UPC MM) |
| Operating wavelength | 850 nm primary | 850 nm primary | 850 nm primary (953 nm for SWDM) |
| Bandwidth @ 850 nm | ≥ 2000 MHz·km | ≥ 4700 MHz·km | ≥ 4700 MHz·km |
| Bandwidth @ 953 nm | — | — | ≥ 2470 MHz·km (OM5 wideband) |
| Reach at 10G (SR) | Up to 300 m | Up to 400 m | Up to 400 m |
| Reach at 40G/100G (SR4) | Up to 100 m | Up to 150 m | Up to 150 m |
| Reach at 100G SWDM4 | — | — | Up to 440 m |
| Reach at 400G SR4.2 | — | Up to 150 m (limited) | Up to 150 m |
Mechanical & Environmental
| Parameter | Value |
|---|---|
| Operating temperature | -20 °C to +70 °C |
| Storage temperature | -40 °C to +85 °C |
| Mating cycles | MPO ≥ 500 cycles |
| Flame retardant | IEC 60332-3 compliant |
| RoHS / REACH | Compliant |
How to Choose the Right Mode
- Pick OM3 (Aqua) if your link is 10G/40G up to 100 m, or if you are matching legacy OM3 plant. Lowest cost.
- Pick OM4 (Violet) if your link is 40G/100G up to 150 m, or if you want headroom for 100G SR4 today and OM5 migration later.
- Pick OM5 (Lime green) if you are deploying SWDM4 transceivers (BiDi / SWDM) for 40G/100G up to 440 m, or 400G SR4.2 over a single MPO-12.
Compliant with IEC 61753-1, IEC 61300-3-35, TIA-568.3-E and ISO/IEC 11801-1 OM3/OM4/OM5. Each assembly ships with serial number, test report, mode-specific jacket color, and length-specific labeling.
