Stainless Steel Armored Fiber Patch Cord (OS2 / OM3 / OM4), LC UPC Duplex, LSZH
Factory-terminated stainless steel spiral armored LC UPC duplex patch cord available in OS2, OM3, and OM4 with LSZH jacket (Yellow/Aqua/Violet). Rodent-proof and crush-resistant for harsh-environment data center and industrial deployments.
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description
Stainless Steel Armored Fiber Patch Cord (OS2 / OM3 / OM4), LC UPC Duplex, LSZH
Factory-terminated LC UPC duplex armored patch cord with stainless steel spiral armor and LSZH outer jacket, available in three fiber grades: OS2 singlemode (Yellow), OM3 multimode (Aqua), and OM4 multimode (Violet). Designed for harsh-environment and high-traffic data center and industrial deployments. The optical fibers are protected by an inner LSZH jacket, a stainless steel 304 spiral wrap (rodent-proof and crush-resistant), and an outer LSZH jacket. Available in 1 m / 2 m / 3 m / 5 m / 10 m / 15 m / 20 m / 30 m and custom lengths. 100% factory tested for insertion loss and endface geometry.
Available modes: OS2 singlemode (1310 / 1550 nm, long-reach), OM3 (10G/40G up to 100 m @ 850 nm), OM4 (10G/40G/100G up to 150 m @ 850 nm). Choose the mode that matches your transceiver and reach requirements.
Key Features
- Three fiber grades on one product page: OS2 singlemode (Yellow), OM3 multimode (Aqua), OM4 multimode (Violet) — order the same armored patch cord at the mode your link needs.

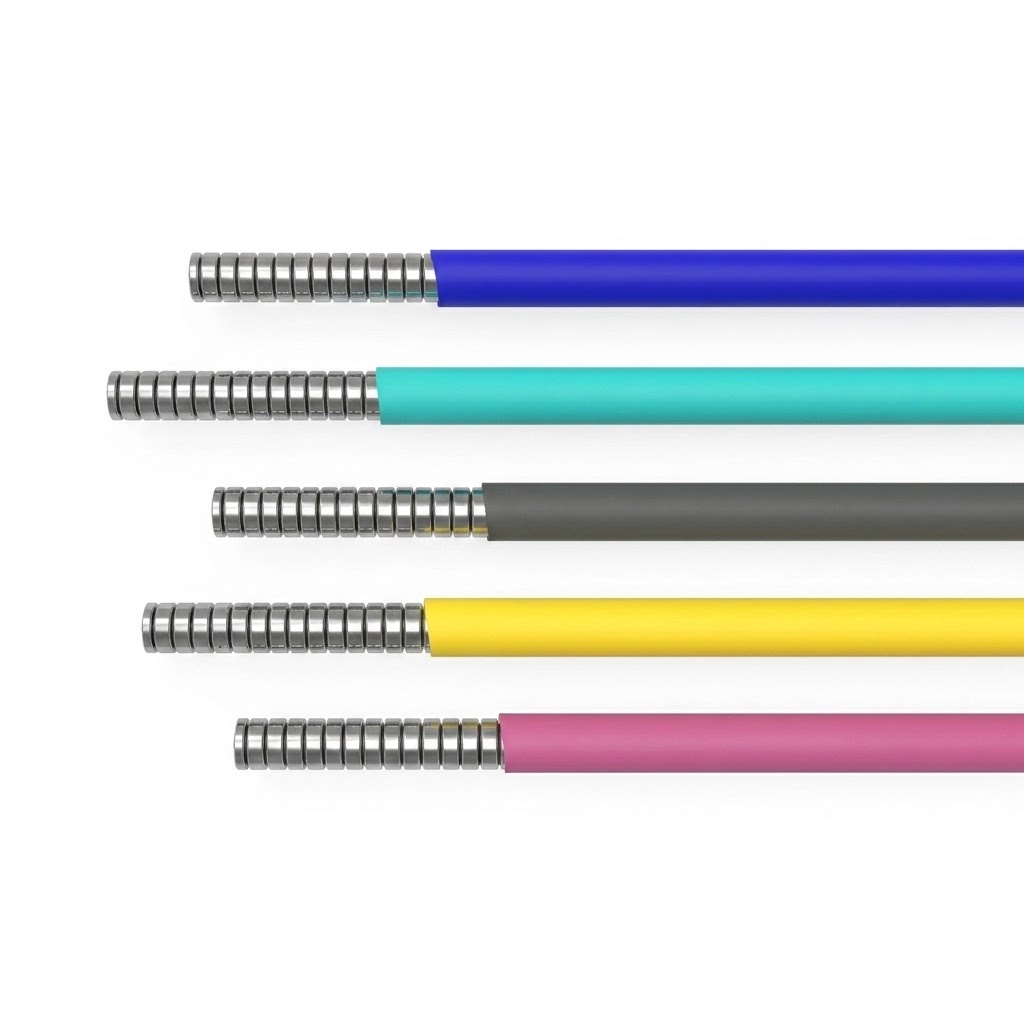

- Stainless steel 304 spiral armor: rodent-proof, crush-resistant up to 4000 N/100 mm, ideal for outdoor-indoor transition, industrial floors, and high-traffic cable trays.
- Triple-layer construction: inner LSZH buffer, stainless steel spiral armor, outer LSZH jacket — no separate conduit required.
- Bend-insensitive optical fiber: 7.5 mm minimum bend radius for tight routing inside racks despite armor stiffness.
- Low insertion loss: ≤ 0.20 dB typical per IEC 61753-1 Grade B.
- High return loss: OS2: ≥ 50 dB (UPC); OM3/OM4: ≥ 30 dB (UPC MM).
- LSZH jacket: flame-retardant, low-smoke zero-halogen compliant with IEC 60332-3. Color-coded by mode.
- LC UPC duplex clip: integrated duplex clip for standard LC duplex adapters.
- 100% factory tested: insertion loss and endface geometry per IEC 61300-3-35; test report shipped with each assembly.
Applications
- Data center raised floor and overhead tray deployments where rodent or mechanical crush protection is required
- Industrial Ethernet and SCADA fiber links in factory automation
- Outdoor-to-indoor transition patch (between outdoor armored cable and indoor equipment)
- Marine, mining, oil & gas field fiber patch links
- Military and tactical deployable fiber networks
- High-traffic public venue (stadium, airport, mall) backbone patch
- OS2 long-reach singlemode links between buildings or to telecom equipment rooms
- OM3 / OM4 10G/40G/100G multimode links in industrial or rugged-environment deployments
Product Structure
| Component | Specification |
|---|---|
| Connectors (both ends) | LC UPC Duplex with integrated duplex clip |
| Fiber types available | OS2 9/125 µm G.657.A1 bend-insensitive / OM3 50/125 µm bend-insensitive / OM4 50/125 µm bend-insensitive |
| Cable structure | Inner LSZH buffer → Stainless steel 304 spiral armor → Outer LSZH jacket |
| Armor material | Stainless steel 304 (SUS304) spiral wrap |
| Armor outer diameter | 3.0 mm spiral wrap |
| Outer jacket material | LSZH, OFNR-rated |
| Outer jacket color (by mode) | OS2 — Yellow; OM3 — Aqua; OM4 — Violet (per TIA-598-D / TIA-568.3-E) |
| Cable outer diameter | 5.0 mm (with armor) |
| Standard lengths | 1 m / 2 m / 3 m / 5 m / 10 m / 15 m / 20 m / 30 m; custom up to 100 m |
| Operating temperature | -20 °C to +70 °C |
Technical Specifications
Cable Construction
| Parameter | Value |
|---|---|
| Fiber count | 2 (duplex) |
| Fiber mode | OS2 / OM3 / OM4 — bend-insensitive |
| Cable type | Stainless steel spiral armored duplex |
| Armor material | Stainless steel 304 (SUS304) spiral wrap |
| Cable outer diameter | 5.0 mm |
| Inner jacket material | LSZH |
| Outer jacket material | LSZH (Low Smoke Zero Halogen), OFNR |
| Outer jacket color | Yellow (OS2) / Aqua (OM3) / Violet (OM4) |
| Minimum bend radius (cable) | 60 mm (with armor) |
| Tensile load (long term) | 500 N |
| Crush resistance | 4000 N/100 mm |
Optical Characteristics — by Mode
| Parameter | OS2 | OM3 | OM4 |
|---|---|---|---|
| Fiber type | Singlemode OS2 G.657.A1 | Multimode OM3 50/125 µm | Multimode OM4 50/125 µm |
| Jacket color | Yellow | Aqua | Violet |
| Insertion loss (typical) | ≤ 0.20 dB | ≤ 0.20 dB | ≤ 0.20 dB |
| Insertion loss (max) | ≤ 0.30 dB | ≤ 0.30 dB | ≤ 0.30 dB |
| Return loss | ≥ 50 dB (UPC) | ≥ 30 dB (UPC MM) | ≥ 30 dB (UPC MM) |
| Operating wavelength | 1310 / 1550 / 1625 nm | 850 / 1300 nm | 850 / 1300 nm |
| Attenuation at 1310 nm (SM) | ≤ 0.40 dB/km | — | — |
| Attenuation at 1550 nm (SM) | ≤ 0.30 dB/km | — | — |
| Bandwidth @ 850 nm | — | ≥ 2000 MHz·km | ≥ 4700 MHz·km |
| Reach at 100G (SR4) | — (long-reach singlemode) | Up to 100 m | Up to 150 m |
Mechanical & Environmental
| Parameter | Value |
|---|---|
| Operating temperature | -20 °C to +70 °C |
| Storage temperature | -40 °C to +85 °C |
| Mating cycles | LC ≥ 1000 cycles |
| Flame retardant | IEC 60332-3 compliant, OFNR-rated |
| Halogen content | IEC 60754-1 compliant (zero halogen) |
| RoHS / REACH | Compliant |
| Rodent resistance | Stainless steel armor — fully rodent-proof |
How to Choose the Right Mode
- Pick OS2 (Yellow) if your link is long-reach singlemode (1 km to 40 km+), connecting buildings, or matching existing OS2 plant.
- Pick OM3 (Aqua) if your link is 10G/40G up to 100 m @ 850 nm, or if you are matching legacy OM3 plant.
- Pick OM4 (Violet) if your link is 40G/100G up to 150 m @ 850 nm, or if you want extra modal-bandwidth headroom.

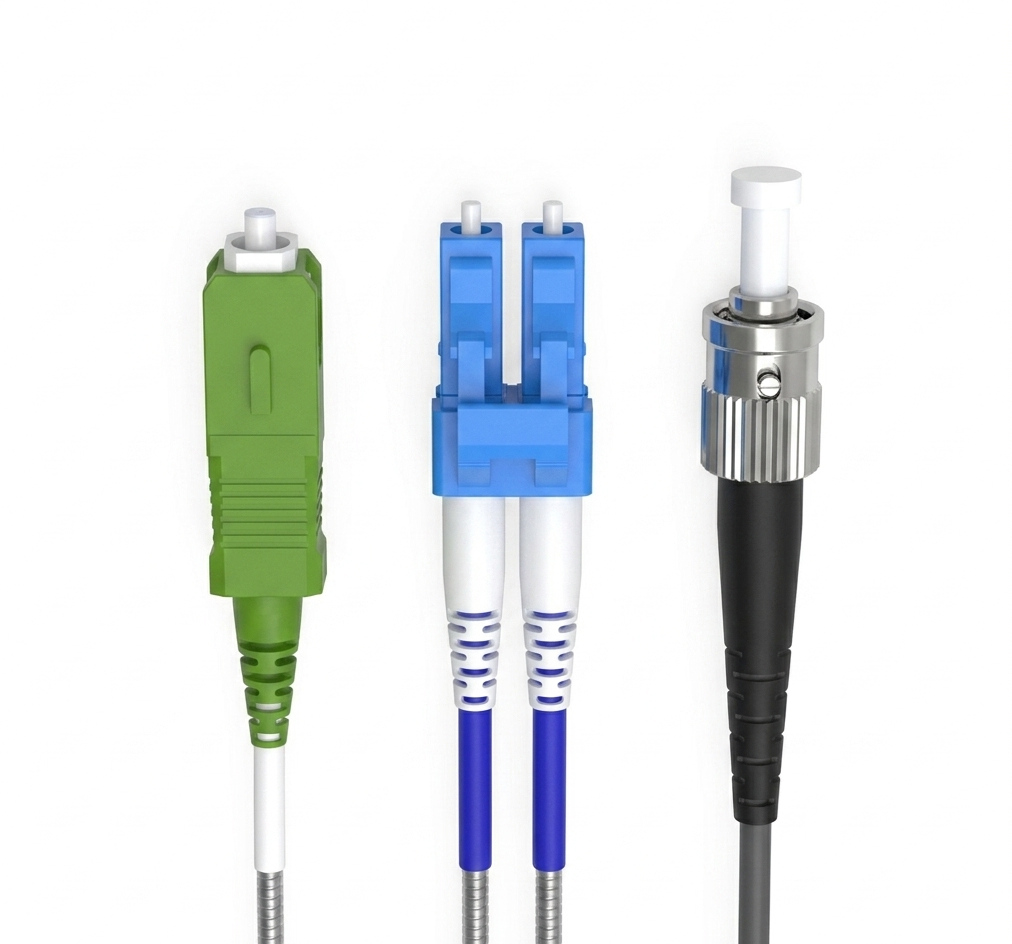

Compliant with IEC 61753-1, IEC 61300-3-35, TIA-568.3-E and ISO/IEC 11801-1. Each assembly ships with serial number, test report, mode-specific jacket color, and length-specific labeling. Custom connector combinations (SC/FC/ST/LC UPC or APC) available on request.
