MTP-8 APC to 4 x LC UPC Harness, 8 Fibers, OS2, Type B

Description

MTP-8 APC to 4 x LC UPC Harness, 8 Fibers, OS2, Type B

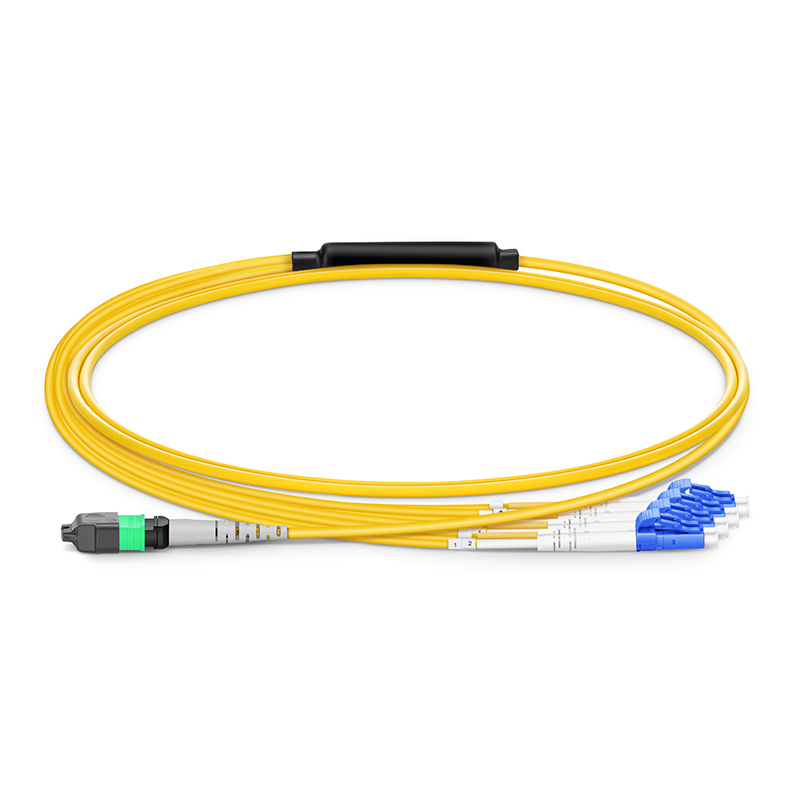

Factory-terminated MTP-8 APC to 4× LC UPC duplex breakout harness designed for high-density data center optical interconnects. The singlemode MTP connector on one end breaks out to four LC UPC duplex legs on the other end, giving an 8-fiber (Base-8) channel mapped with Type B (crossover) polarity. The harness uses bend-insensitive singlemode fiber (G.657.A1) under LSZH jacket and is 100% factory tested for insertion loss and return loss, ready for direct plug-in between MTP trunk cables and LC patch panels or switch ports.

Key Features

• Base-8 (8 fibers) MTP breakout: one MTP-8 APC connector breaks out to 4× duplex LC UPC legs, simplifying 40G/100G/400G migration paths.
• Type B (crossover) polarity: position 1 maps to position 12 across the link for direct connection between two MTP cassettes without additional patch cords.
• Low insertion loss: MTP APC ≤ 0.35 dB typical; LC UPC ≤ 0.2 dB typical, fully interchangeable per IEC 61753-1 Grade B.
• High return loss: APC end ≥ 60 dB, UPC end ≥ 50 dB, suitable for long-reach singlemode channels and analog video overlay.
• Bend-insensitive OS2 fiber: G.657.A1 singlemode fiber with 7.5 mm minimum bend radius for tight routing inside racks.
• LSZH jacket (yellow): OFNR-rated, flame-retardant, low-smoke, zero-halogen jacket compliant with IEC 60332-3, suitable for plenum-return-air spaces.
• 100% factory tested: insertion loss, return loss and endface geometry per IEC 61300-3-35; test report shipped with each assembly.

Applications

• 40G / 100G / 400G data center backbone breakout from MTP trunk to LC switch ports
• Hyperscale and colocation facility high-density spine-leaf architecture
• MPO/MTP cassette to LC patch panel fan-out inside ODF frames
• Parallel optics breakout for QSFP/QSFP-DD transceivers
• Single-mode backbone links in enterprise and telecom equipment rooms

Product Structure

Component	Specification
MTP end connector	MTP-8 Female (no pins), APC endface (green boot)
LC breakout connectors	4 × LC UPC Duplex (blue boots)
Polarity	Type B (crossover)
Fiber type	Singlemode OS2, G.657.A1 bend-insensitive
MTP trunk jacket	3.0 mm LSZH, yellow, OFNR
LC breakout legs	2.0 mm LSZH, yellow, OFNR
Breakout length	0.5 m standard, customizable 0.3 m – 1.5 m
Total length	1 m / 2 m / 3 m / 5 m / 10 m / 15 m / custom
Operating temperature	-20 °C to +70 °C

Technical Specifications

Cable Construction

Parameter	Value
Fiber count	8 (Base-8)
Fiber mode	Singlemode OS2, G.657.A1
Trunk diameter	3.0 mm
Breakout leg diameter	2.0 mm
Jacket material	LSZH (Low Smoke Zero Halogen), OFNR
Jacket color	Yellow
Minimum bend radius	7.5 mm (G.657.A1 fiber)
Tensile load (long term)	100 N

Optical Characteristics

Parameter	MTP APC	LC UPC
Insertion loss (typical)	≤ 0.35 dB	≤ 0.20 dB
Insertion loss (max)	≤ 0.75 dB	≤ 0.30 dB
Return loss	≥ 60 dB (APC)	≥ 50 dB (UPC)
Wavelength	1310 nm / 1550 nm
Attenuation at 1310 nm	≤ 0.40 dB/km
Attenuation at 1550 nm	≤ 0.30 dB/km

Mechanical & Environmental

Parameter	Value
Operating temperature	-20 °C to +70 °C
Storage temperature	-40 °C to +85 °C
Mating cycles	MTP ≥ 500 cycles; LC ≥ 1000 cycles
Flame retardant	IEC 60332-3 compliant
RoHS / REACH	Compliant

Compliant with IEC 61753-1, IEC 61300-3-35, TIA-568.3-E and ISO/IEC 11801-1. Each assembly ships with serial number, test report and length-specific labeling.
