MTP-16 APC to 8 x LC UPC Harness, 16 Fibers, OM4, Crossover

Factory-terminated MTP-16 APC to 8× LC UPC duplex breakout harness for high-density multimode OM4 data center interconnects, 50/125 µm bend-insensitive, LSZH violet jacket, Crossover polarity.

  • Check Mark Satisfaction guarantee
  • Check Mark Fast delivery
  • Check Mark Quality assurance
Category: Tags: , , ,

Description

MTP-16 APC to 8 x LC UPC Harness, 16 Fibers, OM4, Crossover

Factory-terminated MTP-16 APC to 8× LC UPC duplex breakout harness for high-density multimode OM4 data center interconnects. The OM4 multimode MTP-16 connector on one end breaks out to eight LC UPC duplex legs on the other end, giving a 16-fiber (Base-16) channel mapped with Crossover (Type B inverted) polarity. The assembly uses bend-insensitive OM4 fiber (50/125 µm) under LSZH jacket and is 100% factory tested for insertion loss and return loss, ready for direct plug-in between Base-16 OM4 MTP trunk cables and LC switch ports or patch panels.

MTP-16 APC to 8 x LC UPC Harness, 16 Fibers, OM4, Crossover

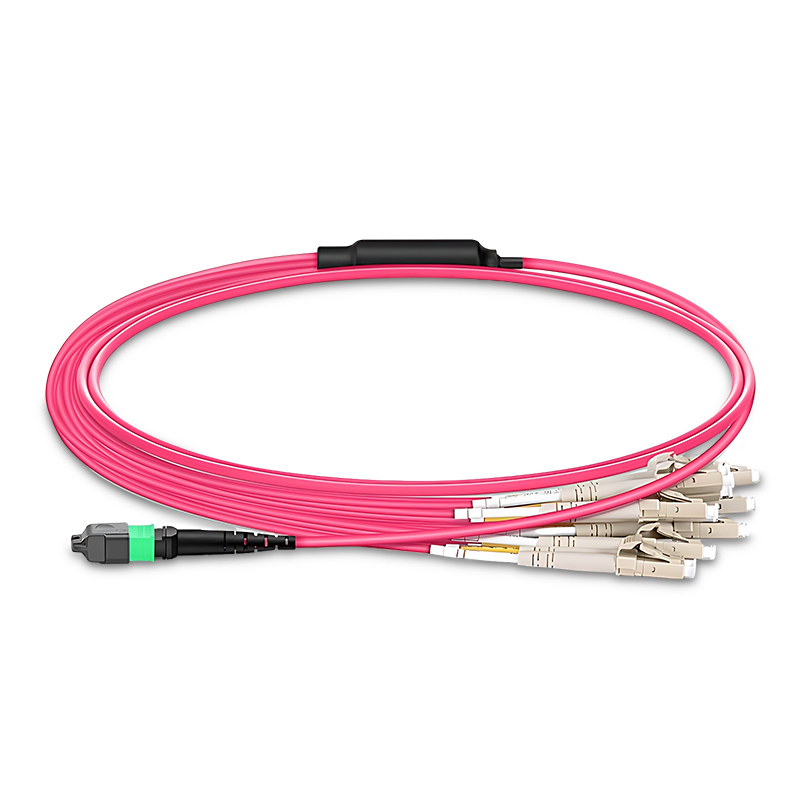

MTP-16 APC to 8 × LC UPC Harness, 16 Fibers, OM4, Crossover — Base-16 factory-terminated breakout assembly with violet LSZH jacket

Key Features

  • Base-16 OM4 breakout: one MTP-16 connector breaks out to 8× duplex LC UPC legs, enabling 400G/800G SR4.2 and OM4 parallel optics deployments.
  • Crossover (Base-16) polarity: inverted Type B mapping for direct connection between MTP cassettes at both ends.
  • Low insertion loss: MTP-16 ≤ 0.35 dB typical; LC UPC ≤ 0.2 dB typical per IEC 61753-1 Grade B.
  • High return loss: UPC end ≥ 30 dB multimode per IEC 61300-3-4.
  • OM4 bend-insensitive fiber: 50/125 µm OM4 with 7.5 mm minimum bend radius, optimized for 850 nm VCSEL transmission.
  • LSZH jacket (violet): OFNR-rated violet jacket per TIA-568.3-E OM4 color code.
  • 100% factory tested: insertion loss and endface geometry per IEC 61300-3-35; test report shipped with each assembly.

Applications

  • 400G SR4 / 800G SR4.2 multimode parallel optics breakout
  • Hyperscale spine-leaf architecture with multimode OM4 backbone
  • MPO/MTP cassette to LC patch panel fan-out
  • QSFP-DD / OSFP transceiver fan-out to LC ports
  • Multimode OM4 backbone links in enterprise equipment rooms

Product Structure

Component Specification
MTP end connector MTP-16 Female (no pins), APC endface (green boot)
LC breakout connectors 8 × LC UPC Duplex (beige boots)
Polarity Crossover (Base-16 / inverted Type B)
Fiber type Multimode OM4 50/125 µm, bend-insensitive
MTP trunk jacket 3.6 mm LSZH, violet, OFNR
LC breakout legs 2.0 mm LSZH, violet, OFNR
Breakout length 0.5 m standard, customizable 0.3 m – 1.5 m
Total length 1 m / 2 m / 3 m / 5 m / 10 m / 15 m / custom
Operating temperature -20 °C to +70 °C

Technical Specifications

Cable Construction

Parameter Value
Fiber count 16 (Base-16)
Fiber mode Multimode OM4, 50/125 µm, bend-insensitive
Trunk diameter 3.6 mm
Breakout leg diameter 2.0 mm
Jacket material LSZH (Low Smoke Zero Halogen), OFNR
Jacket color Violet (per TIA-568.3-E OM4)
Minimum bend radius 7.5 mm
Tensile load (long term) 100 N

Optical Characteristics

Parameter MTP APC LC UPC
Insertion loss (typical) ≤ 0.35 dB ≤ 0.20 dB
Insertion loss (max) ≤ 0.75 dB ≤ 0.30 dB
Return loss ≥ 30 dB (UPC MM) ≥ 30 dB (UPC MM)
Operating wavelength 850 nm (primary for OM4) 850 nm
Bandwidth @ 850 nm ≥ 4700 MHz·km (OM4) ≥ 4700 MHz·km (OM4)
Reach at 400G (SR4) Up to 100 m @ 850 nm —

Mechanical & Environmental

Parameter Value
Operating temperature -20 °C to +70 °C
Storage temperature -40 °C to +85 °C
Mating cycles MTP ≥ 500 cycles; LC ≥ 1000 cycles
Flame retardant IEC 60332-3 compliant
RoHS / REACH Compliant

Compliant with IEC 61753-1, IEC 61300-3-35, TIA-568.3-E and ISO/IEC 11801-1 OM4. Each assembly ships with serial number, test report and length-specific labeling.
