MTP-16 APC to 8 x LC UPC Harness, 16 Fibers, OS2, Crossover

Factory-terminated MTP-16 APC to 8× LC UPC duplex breakout harness designed for 400G and emerging 800G data center singlemode interconnects. The singlemode MTP-16 connector on one end breaks out to eight LC UPC duplex legs on the other end, giving a 16-fiber (Base-16) channel mapped with Crossover (Type B inverted) polarity. The assembly uses bend-insensitive singlemode fiber (G.657.A1) under LSZH jacket, fully 100% factory tested for insertion loss and return loss, ready for direct plug-in between Base-16 MTP trunk cables and LC switch ports or patch panels.

MTP-16 APC to 8 x LC UPC Harness, 16 Fibers, OS2, Crossover

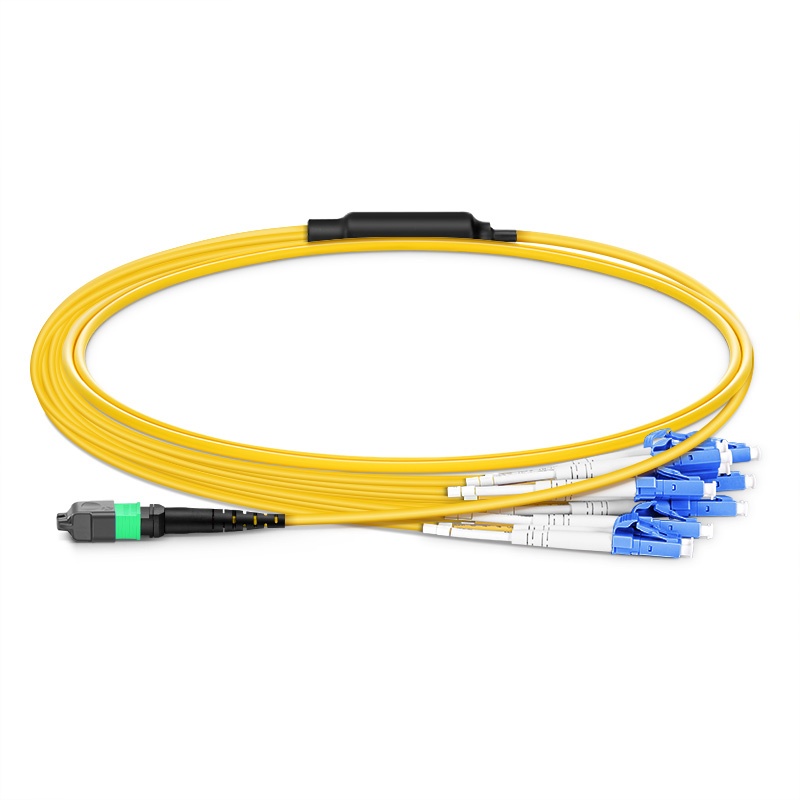

MTP-16 APC to 8 × LC UPC Harness, 16 Fibers, OS2, Crossover — Base-16 factory-terminated breakout assembly with yellow LSZH jacket

Key Features

  • Base-16 (16 fibers) MTP breakout: one MTP-16 APC connector breaks out to 8× duplex LC UPC legs, providing a 2× density upgrade path from Base-8 systems.
  • Crossover (Base-16) polarity: inverted Type B mapping for 400G/800G PSM4/DR4 deployments and direct MTP cassette-to-cassette connection.
  • Low insertion loss: MTP-16 APC ≤ 0.35 dB typical; LC UPC ≤ 0.2 dB typical per IEC 61753-1 Grade B.
  • High return loss: APC end ≥ 60 dB; UPC end ≥ 50 dB.
  • Bend-insensitive OS2 fiber: G.657.A1 singlemode fiber with 7.5 mm minimum bend radius.
  • LSZH jacket (yellow): OFNR-rated LSZH jacket compliant with IEC 60332-3.
  • 100% factory tested: insertion loss, return loss and endface geometry per IEC 61300-3-35; test report shipped with each assembly.

Applications

  • 400G FR4/DR4 and 800G PSM8 singlemode data center backbone breakout
  • Hyperscale spine-leaf and AI/ML fabric aggregation
  • MPO/MTP cassette to LC patch panel fan-out inside ODF frames
  • QSFP-DD / OSFP transceiver fan-out to LC ports
  • Single-mode backbone links in enterprise and telecom equipment rooms

Product Structure

Component Specification
MTP end connector MTP-16 Female (no pins), APC endface (green boot)
LC breakout connectors 8 × LC UPC Duplex (blue boots)
Polarity Crossover (Base-16 / inverted Type B)
Fiber type Singlemode OS2, G.657.A1 bend-insensitive
MTP trunk jacket 3.6 mm LSZH, yellow, OFNR
LC breakout legs 2.0 mm LSZH, yellow, OFNR
Breakout length 0.5 m standard, customizable 0.3 m – 1.5 m
Total length 1 m / 2 m / 3 m / 5 m / 10 m / 15 m / custom
Operating temperature -20 °C to +70 °C

Technical Specifications

Cable Construction

Parameter Value
Fiber count 16 (Base-16)
Fiber mode Singlemode OS2, G.657.A1
Trunk diameter 3.6 mm
Breakout leg diameter 2.0 mm
Jacket material LSZH (Low Smoke Zero Halogen), OFNR
Jacket color Yellow
Minimum bend radius 7.5 mm (G.657.A1 fiber)
Tensile load (long term) 100 N

Optical Characteristics

Parameter MTP APC LC UPC
Insertion loss (typical) ≤ 0.35 dB ≤ 0.20 dB
Insertion loss (max) ≤ 0.75 dB ≤ 0.30 dB
Return loss ≥ 60 dB (APC) ≥ 50 dB (UPC)
Wavelength 1310 nm / 1550 nm 1310 nm / 1550 nm
Attenuation at 1310 nm ≤ 0.40 dB/km ≤ 0.40 dB/km
Attenuation at 1550 nm ≤ 0.30 dB/km ≤ 0.30 dB/km

Mechanical & Environmental

Parameter Value
Operating temperature -20 °C to +70 °C
Storage temperature -40 °C to +85 °C
Mating cycles MTP ≥ 500 cycles; LC ≥ 1000 cycles
Flame retardant IEC 60332-3 compliant
RoHS / REACH Compliant

Compliant with IEC 61753-1, IEC 61300-3-35, TIA-568.3-E and ISO/IEC 11801-1. Each assembly ships with serial number, test report and length-specific labeling.
