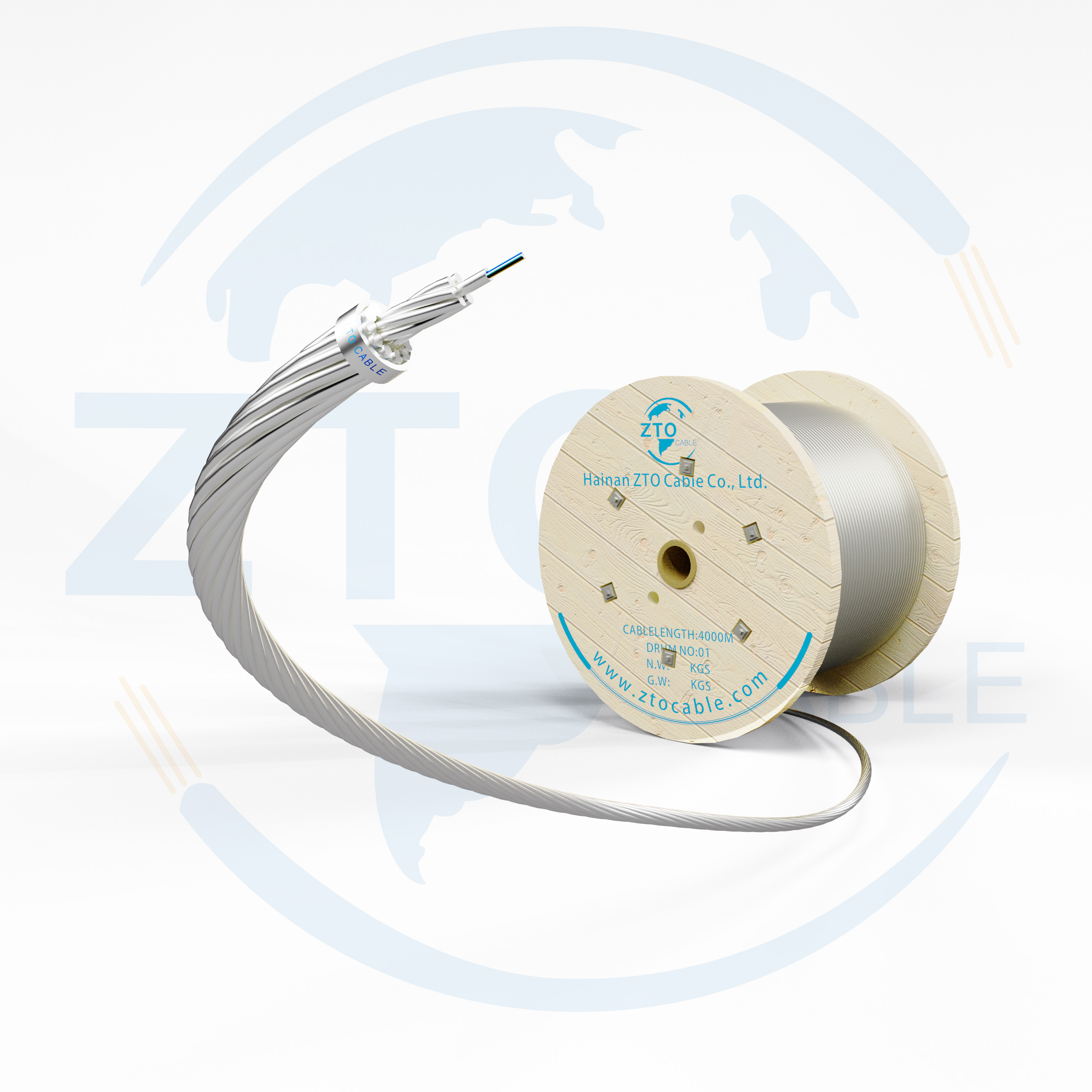

Central AL-covered stainless tube OPGW Cable

  • Check Mark Satisfaction guarantee
  • Check Mark Fast delivery
  • Check Mark Quality assurance


OPGW cable is suited for installation on transmission lines with the double function of a ground wire (designed to replace traditional static or shield wires) and a communication wire. OPGW conducts short circuit current and provide lightning resistance as it “shields” conductors, while providing a telecommunications path for internal as well as third party communications.  OPGW must be capable of withstanding the mechanical and environmental stresses inflicted on overhead cables (such those caused by wind or ice). OPGW must also be capable of handling electrical faults on the transmission line by providing a path to ground yet preventing damage to the delicate optical fibers inside the cable.


OPGW cable has two constructions:

Central loose tube type—The fibers are placed loosely in a sealed and water resistant central, aluminum tube filled with water blocking gel. This tube provides protection to the fiber during installation and operation under severe environmental conditions.  The stainless steel tube may also be aluminum-clad steel depending on the engineering requirements. The stainless optical tube is located at the center of the cable protected by single or multiple layers of aluminum clad steel, aluminum alloy wires, or steel wires. The metallic wires provide mechanical strength to withstand severe installation and operating conditions, while achieving conductivity to control temperature rise during short circuit conditions.

Each optical fiber is clearly distinguishable utilizing a fiber identification system consisting of coloring and the number of ring marks on it. This compact design features high mechanical strength and fault current rating within a smaller diameter. The smaller diameter also results in excellent sag tension performance.

Multi loose tube type— The fibers is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. Two or three stainless steel optical tubes are helically stranded in the inner layer of a multiple-layer cable.  The multi loose tube type is designed mostly for very high fiber count requirement over 48 with the maximum fiber count reaching 144. The multi loose tube type can meet the requirement of huge cross and large current capacity.

The optical fiber is made of high pure silica and germanium doped silica. UV curable acrylate material is applied over fiber cladding as optical fiber primary protective coating. The detail data of optical fiber performance are shown in the following table.

Optical fiber uses special spun device successfully controlled the value of PMD, and makes sure that it can keep stable in cabling


  • IEC 60793-1 Optical fiber Part 1: Generic specifications
  • IEC 60793-2 Optical fiber Part 2: Product specifications
  • ITU-T G.652 Characteristics of a single-mode optical fiber cable
  • ITU-T G.655 Characteristics of a non-zero dispersion-shifted single-mode optical fiber and Cable
  • EIA/TIA 598  Color code of fiber optic cables
  • IEC 60794-4-10 Aerial optical cables along electrical power lines – Family specification for OPGW
  • IEC 60794-1-2 Optical fiber cables-Part 1-2: Generic specification – Basic optical cable test procedures
  • IEEE1138-2009 IEEE Standard for testing and performance for optical ground wire (OPGW) for use on electric utility power lines
  • IEC 61232 Aluminum – clad steel wire for electrical purposes
  • IEC 60104 Aluminum magnesium-silicon alloy wire for overhead line conductors
  • IEC 61089 Round wire concentric lay overhead electrical stranded conductors
  • Fiber is Corning SMF-28e+ Optical Fiber


  • Hardware for Installation


  • Reel lengths must be defined at time of purchase to assist client with reducing waste, and to reduce splicing required during installation.
  • Please contact AWG for full detailed technical specifications, including PLS CADD data or Stress Creep data.
