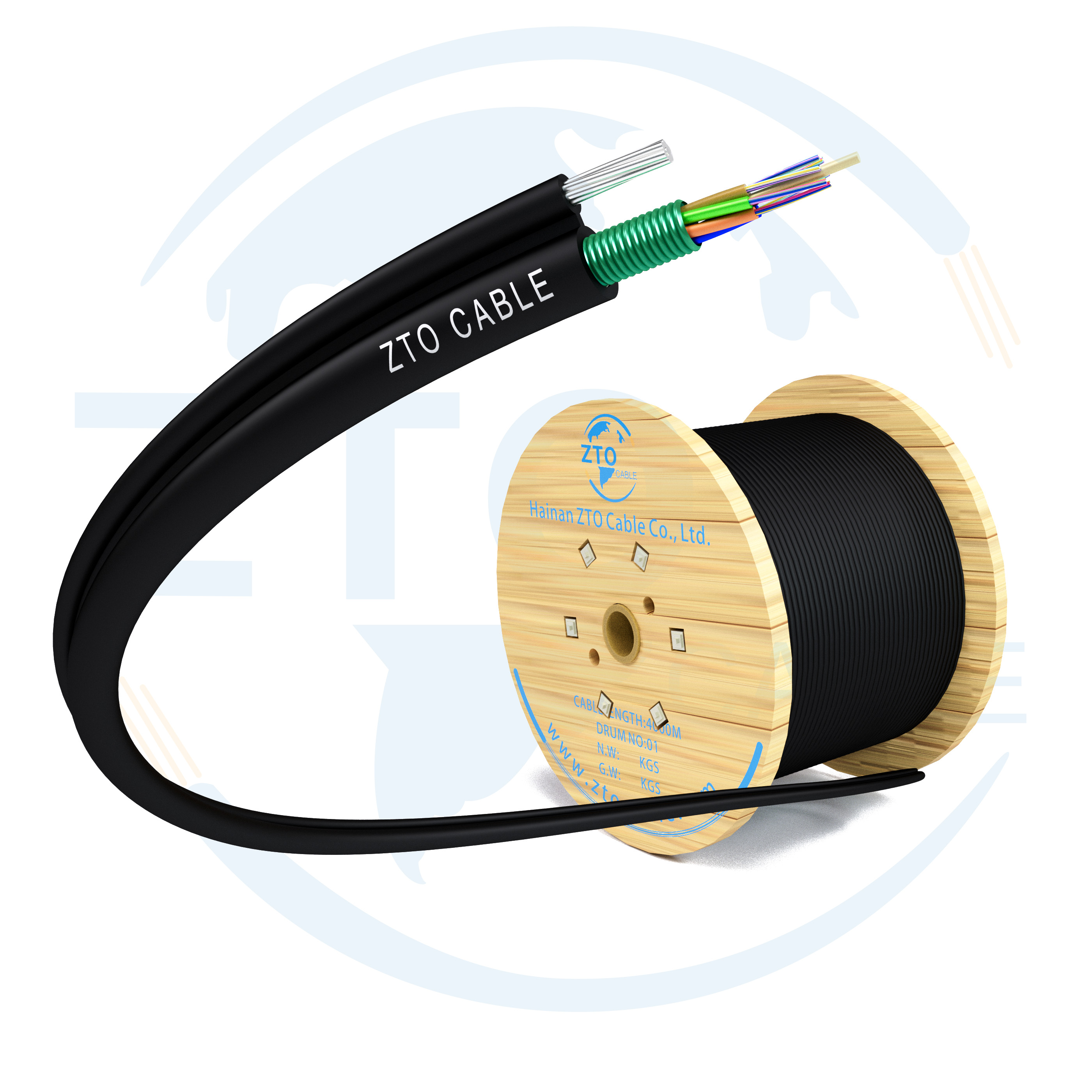

Figure 8 Fiber Optic Cable Aerial Stranded GYFTC8S

Inquire Online

  • Check Mark Satisfaction guarantee
  • Check Mark Fast delivery
  • Check Mark Quality assurance
Categories: , Tags: , , ,

Description

The Figure 8 Fiber Optic Cable Aerial Stranded GYFTC8S is named “figure 8” due to its unique cross-sectional shape, resembling the number “8.” This design allows two fiber optic cable cores to be placed side by side within the same cable, forming a compact and efficient aerial installation solution. The fibers,  250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. FRP locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Steel tape (SPS) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.

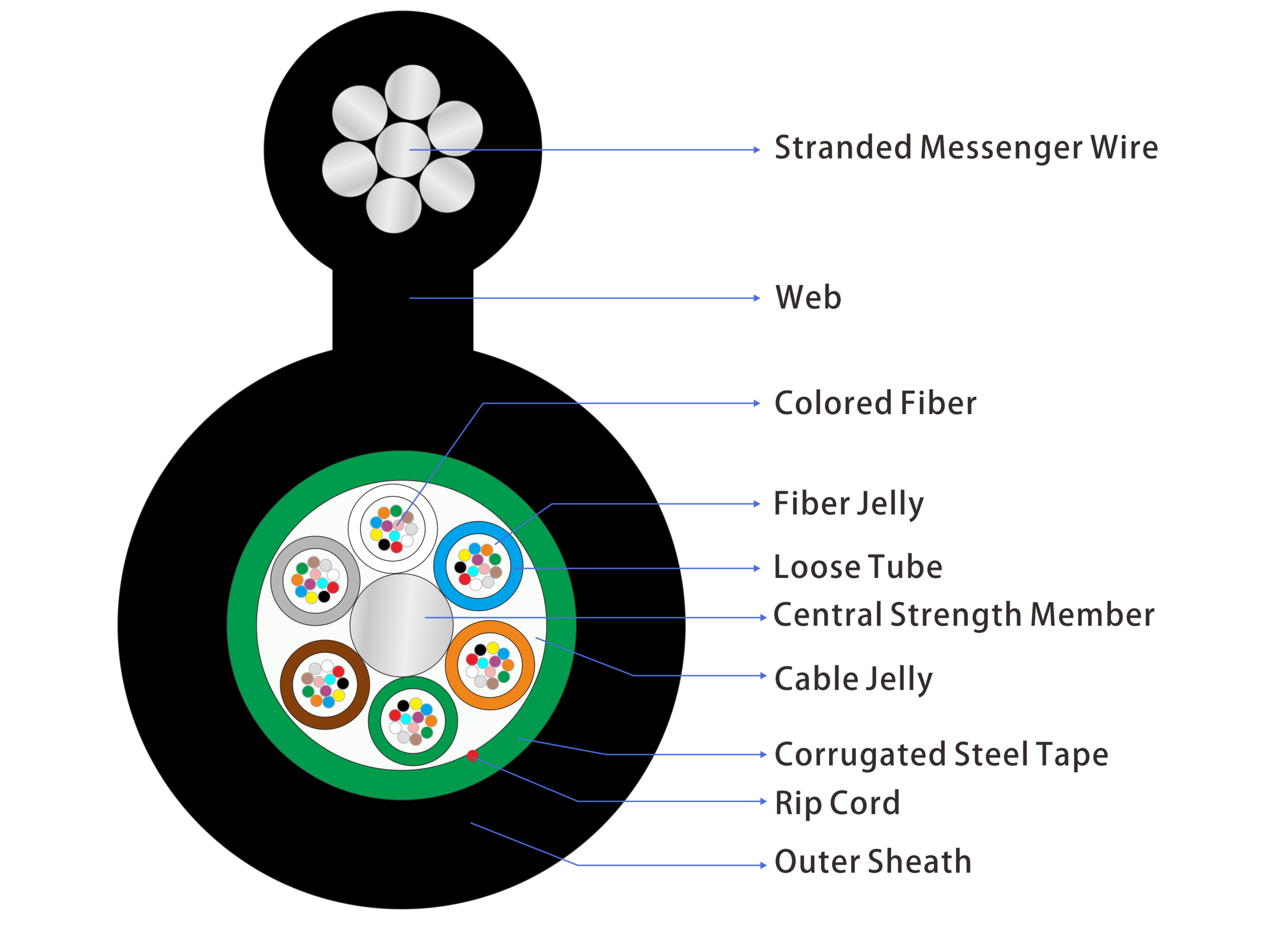

Structure

ZTO Figure 8 cable aerial stranded GYFTC8S
ZTO Figure 8 cable aerial stranded GYFTC8S

Characteristics

  • High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • The following measures are taken to ensure the cable watertight:
  • FRP rod used as the central strength member
  •  Loose tube filling compound
  •  100% cable core filling
  •   APL moisture barrier

Application

Aerial installation, self-supporting, overhead

Standard

 Standard YD/T 1155-2001 as well as IEC 60794-1.
