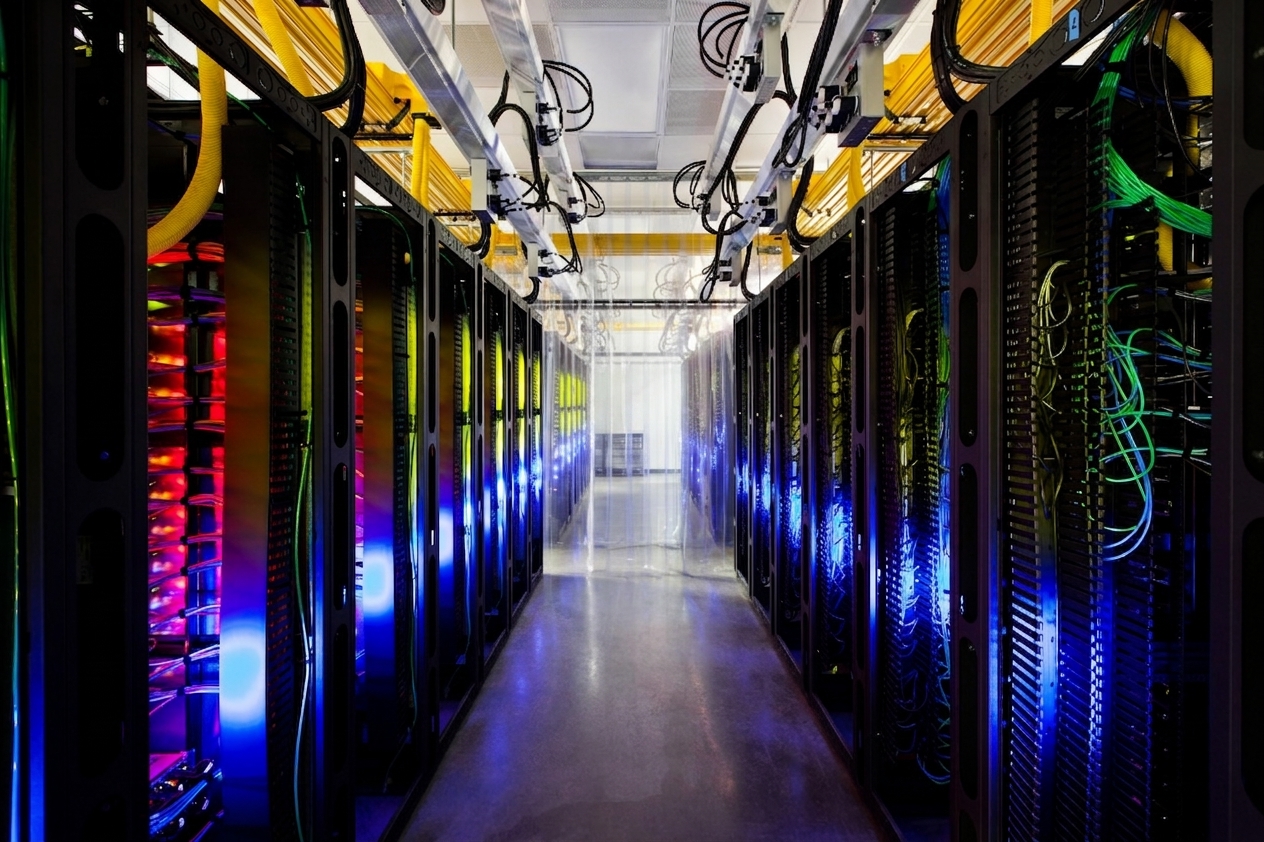

Data Center Fiber Optic Solutions
Send Us A Message To Tell Us What Type Of Fiber Optical Cable You Are Looking For.
We Will Provide The Big Discount Factory Quote And Professional Optical Fiber Cable Specification.
Alternatively, you can contact us via WhatsApp or email.
Whatsapp:+86 15084848683 [email protected]Data Center Fiber Optic Cable Technical Specifications
| Parameter | MTP/MPO Trunk (Backbone) | Indoor Ribbon (Backbone) | MPO Cassette (Patch Panel) | MTP Harness (Breakout) |
|---|---|---|---|---|
| Fiber Count Range | 12 – 144 cores | 12 – 864 cores | 24 – 144 cores / cassette | 8 cores (Base-8) / 16 cores (Base-16) |
| Connector | MTP-12 / MTP-24 Female or Male | Pre-terminated MPO-12 (mass-fusion splice optional) | MTP-12 + LC/SC (modular cassette) | MTP-8/16 + 4x or 8x LC Duplex |
| Polarity | Type A / Type B / Type C | Type B (typical) | Type A / Type B / Type C | Type B / Crossover |
| Fiber Mode | OS2 / OM3 / OM4 / OM5 | OS2 (G.652.D / G.657.A1) | OS2 / OM3 / OM4 | OS2 / OM4 |
| Jacket | LSZH OFNR (color-coded by mode) | LSZH OFNR yellow | LSZH (cassette housing) | LSZH yellow (OS2) / violet (OM4) |
| Insertion Loss (typical) | ≤ 0.35 dB | ≤ 0.35 dB | MTP ≤ 0.35 dB; LC ≤ 0.20 dB | MTP ≤ 0.35 dB; LC ≤ 0.20 dB |
| Return Loss | ≥ 60 dB (APC) / ≥ 50 dB (UPC) / ≥ 30 dB (MM) | ≥ 60 dB (APC) | ≥ 60 dB (APC) / ≥ 50 dB (UPC) / ≥ 30 dB (MM) | ≥ 60 dB (APC) / ≥ 50 dB (UPC) / ≥ 30 dB (MM) |
| Standard Reach | Up to 500 m (trunk); SR4/SR4.2 up to 150 m OM4 | Up to 800 m (backbone in ODF) | Cassette-level (≤ 5 m patch) | Patch-level (≤ 10 m fan-out) |
| Application | MDA backbone (ODF to cassette) | Equipment room ODF distribution | 1U/2U/4U patch panel breakout | Switch port fan-out from cassette |
* Technical Note: The choice between MTP Trunk and Indoor Ribbon Cable depends on the deployment scenario. MTP/MPO Trunk is preferred for direct plug-in between cassettes at both ends (12-144 cores); Indoor Ribbon Cable is preferred for high-density ODF backbone with mass-fusion splicing (12-864 cores). MPO Cassette Patch Panel capacity scales from 24 cores (1U single cassette) to 144 cores (2U multi-cassette) to 288+ cores (4U chassis). MTP Harness provides the final fan-out from MPO cassette to LC/SC switch ports with Type B or Crossover polarity. Custom lengths, custom connector combinations (LC/SC/FC/ST, APC/UPC) and custom fiber modes are available on request.
FAQ Of Data Center Fiber Optic Solutions
What is the price of data center fiber optic cable and MTP/MPO products?
The price varies by fiber mode (OS2 singlemode / OM3-OM5 multimode), core count, connector type (LC / SC / MTP/MPO / MDC), length, and quantity. Contact our sales team with your specification and we will give you the best factory-direct price.
What is the difference between OM3, OM4 and OM5 multimode fiber for data centers?
OM3 (Aqua jacket) supports 10G up to 300 m and 40G/100G SR4 up to 100 m. OM4 (Violet jacket) supports 10G up to 400 m and 40G/100G SR4 up to 150 m, with extra modal bandwidth headroom. OM5 (Lime green jacket) wideband fiber additionally supports SWDM4 (4 wavelengths x 25G) up to 440 m for 100G and 400G SR4.2 deployments using a single MPO-12.
What is the difference between MTP Base-8, Base-12 and Base-16 harness systems?
Base-8 uses 1 MTP-8 connector breaking out to 4x LC Duplex — for 40G/100G SR4 and standard data center deployments. Base-12 uses 1 MTP-12 connector breaking out to 6x LC Duplex — for 40G SR4 and standard parallel optics. Base-16 uses 1 MTP-16 connector breaking out to 8x LC Duplex — for 400G/800G PSM4/DR4 and emerging 800G deployments requiring 2x density over Base-8.
What is Type A vs Type B vs Type C polarity in MTP/MPO systems?
Type A (straight-through) maps position 1 to position 1 across the link — used for direct transceiver-to-transceiver links. Type B (crossover) maps position 1 to position 12 — used for direct MTP cassette-to-cassette connection without patch cords. Type C (pair-flipped) flips each fiber pair — used for breakout applications. ZTO Cable’s standard MTP/MPO products use Type B polarity, the most common polarity for data center deployments.
Are custom fiber counts, lengths and connector combinations available?
Yes. Custom fiber counts from 12 to 864 cores, custom lengths from 0.5 m to 500 m, and custom connector combinations (LC / SC / FC / ST / MTP / MDC, UPC / APC, simplex / duplex / multi-fiber) are available. Mixed-mode deployments (e.g., OM3 trunk to OM4 patch cord) and hybrid assemblies (LC-SC, APC-UPC) can also be quoted on request.
How long does production and delivery take for data center fiber products?
Standard products (12-core MPO patch cords, LC patch cords, MTP harnesses) ship from stock in 3-5 business days. Custom products (custom length, custom connector combinations, large fiber counts) have a production cycle of 2-3 weeks. We provide a serial number and test report (insertion loss, return loss, endface geometry per IEC 61300-3-35) with every assembly.
